AUSTRALIAN DISTRIBUTOR

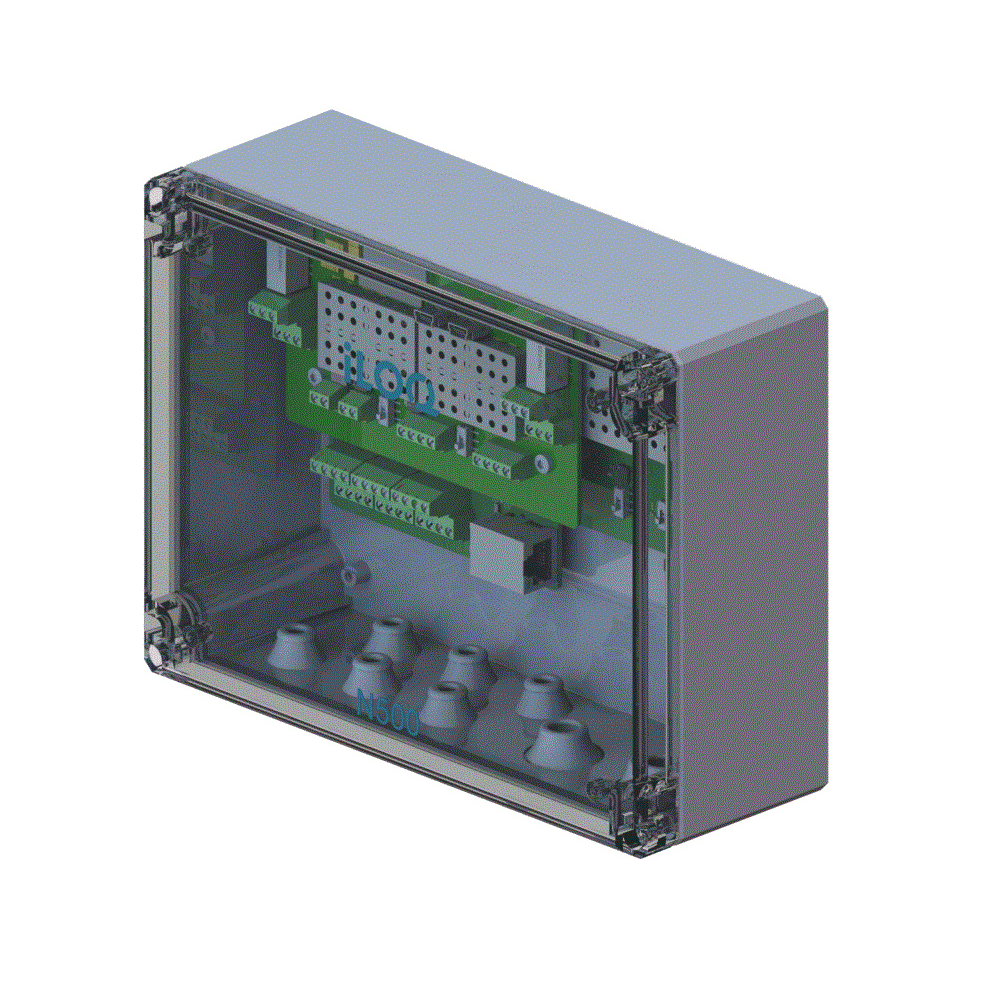

iLOQ S5 Online Net Bridge

iLOQ S5 Online Net Bridge

SKU:N500

Price on Application

Please check availability: iLOQ products are generally custom ordered from the supplier based on individual project requirements and may not be readily available in stock at time of enquiry.

  • No Batteries
  • No Keys
  • No Maintenance

iLOQ S5 Online expands the offline S5 locking system into a remote-controlled access management system. The iLOQ S5 Online allows you to add remote-controlled lock cylinders, RFID/PIN code readers and time-controlled electronic doors to the same system. The entire locking system can be administered easily and cost efficiently using the same iLOQ S5 Manager software. The extension is made possible by integrating an RFID tag in the iLOQ key. Based on digital authentication, iLOQ S5 Online allows you to manage the flow of people in your properties as well as all access rights..

Main Features Of iLOQ S5 Online System

  • The main features of the iLOQ S5 Online System are:
  • Remote management of iLOQ lock cylinders
  • Remote programming of iLOQ keys
  • Remote management of doors equipped with electric locks and iLOQ lock cylinders. The doors can be opened by:
    • Key reader, in which case the key is also updated when the door is opened with the key
    • Key reader and a PIN code
    • RFID reader
    • RFID reader and a PIN code
    • Using a code. This option is meant to provide access for people, such as visitors, who do not and will not have a key.
    • Calendar controls
  • Updating, sharing and collecting lock and key information such as access rights, time profiles, log events and lists of blocked keys through a D2D network with an RFID/PIN reader N504 or N505
  • Door status monitoring

iLOQ S5 Online System Consists Of

  • Net Bridge. The Net Bridge operates as a link between the iLOQ S5 server and the Door Modules and other devices on the bus
  • Standalone Door Module. The Door Module is an independent device located in the vicinity of a door, and it controls devices installed on the door, such as a lock cylinder, an electric lock and an RFID reader
  • Door Module. The Door Module is a bus device located in the vicinity of a door, and it controls devices installed on the door, such as a lock cylinder, an electric lock and an RFID reader
  • RFID/PIN reader. The RFID/PIN reader is used to control an electric lock and it is always connected to a Door Module. The RFID/PIN reader is an essential part of D2D communication as it acts as a sharing point for D2D information
  • The system can consist of one or several Net Bridges and it is possible to connect several bus devices to each Net Bridge

Net Bridge Connections

  • ETHERNET / POE — Ethernet LAN connection with Power over Ethernet (PoE) support
  • DC — Power input for an external power supply
  • The Net Bridge always requires an Ethernet connection and power supply. Power supply can be provided through an Ethernet switch supporting PoE, or by an external power supply
  • If the Net Bridge is powered by:
    • PoE, the available power for bus devices is 10 W-PoE+, the available power for bus devices is 20 W
    • External power supply, the available power for bus devices is 30W
    • RS-485 1/2/3 — Main bus connections (6 pcs). There is one main bus, which can be divided into six parallel branches
    • To the main bus, it is possible to connect N502 Door Modules
