Introducing:

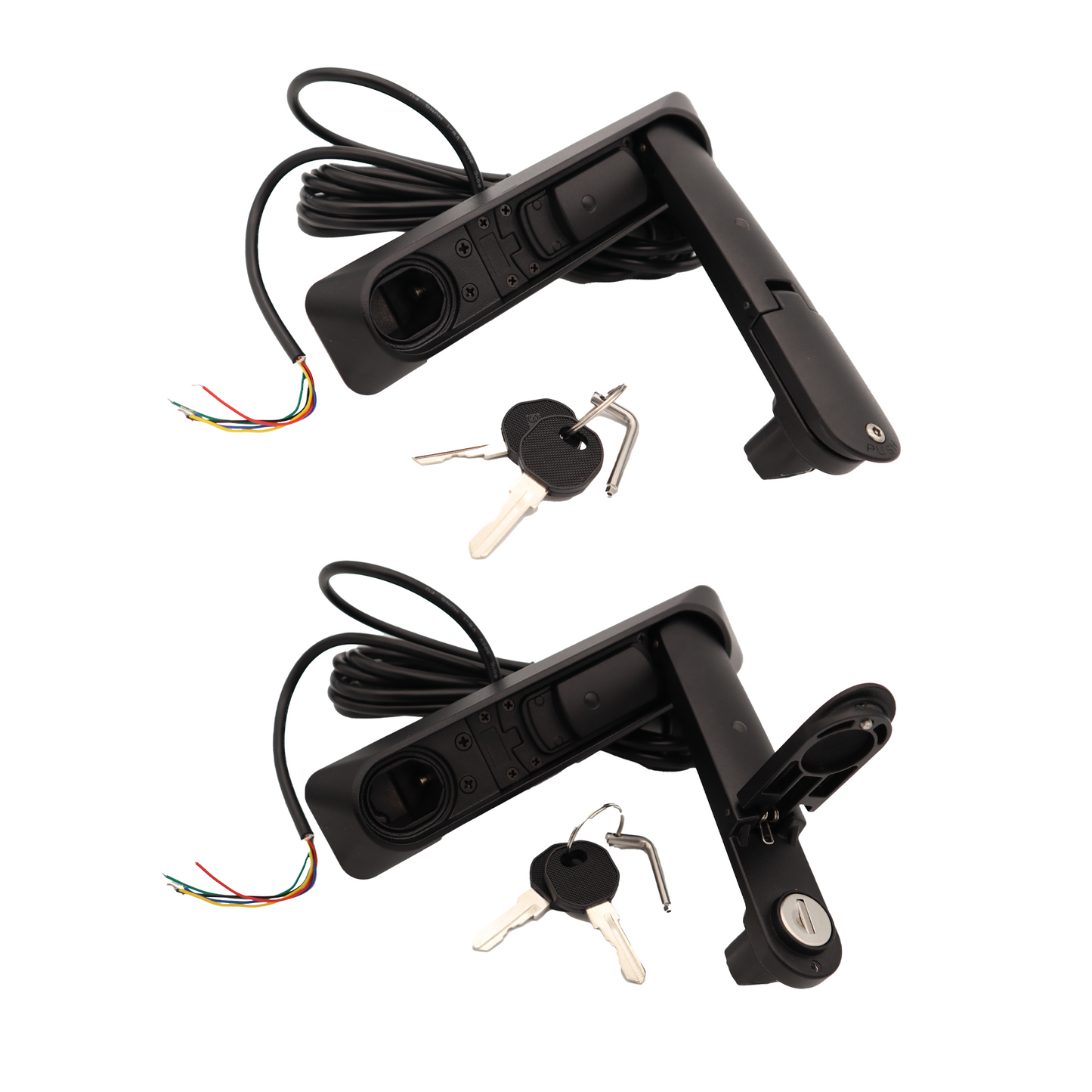

The IoT | IND-C Series Electronic Swing Handle (IoT - "Internet of Things") from Selectlok. This innovative new electronic swing handle is IP65 Ingress rated and RC2 pry rated so it is perfect for outdoor applications, it uses DO remote control communications so you can integrate it into your smart locking or digital access systems yet still provides a mechanical key override option and comes standard with a 12V powered, lock status indicator light so you can always tell if your handle is locked or not from a distance.
This handle is Perfect for datacentres, Ute canopies, intelligent traffic solutions, etc. (Note: Selectlok always recommends installation by a qualified auto electrician or smart locking consultant.)
The IoT | IND-C Series of Electronic swing handles are designed to suit enclosures/doors designed around an IND-C cutout: Two x 25mm x 50mm rectangle holes with a 50mm gap between. (Not compatible with F-Series or 'Standard' Selectlok/Selectrix cutouts.)
Features:
- Access method: Mechanical key + remote control (DO)
- Lock status indicator light (blue/green)
- IP65 ingress protection rated

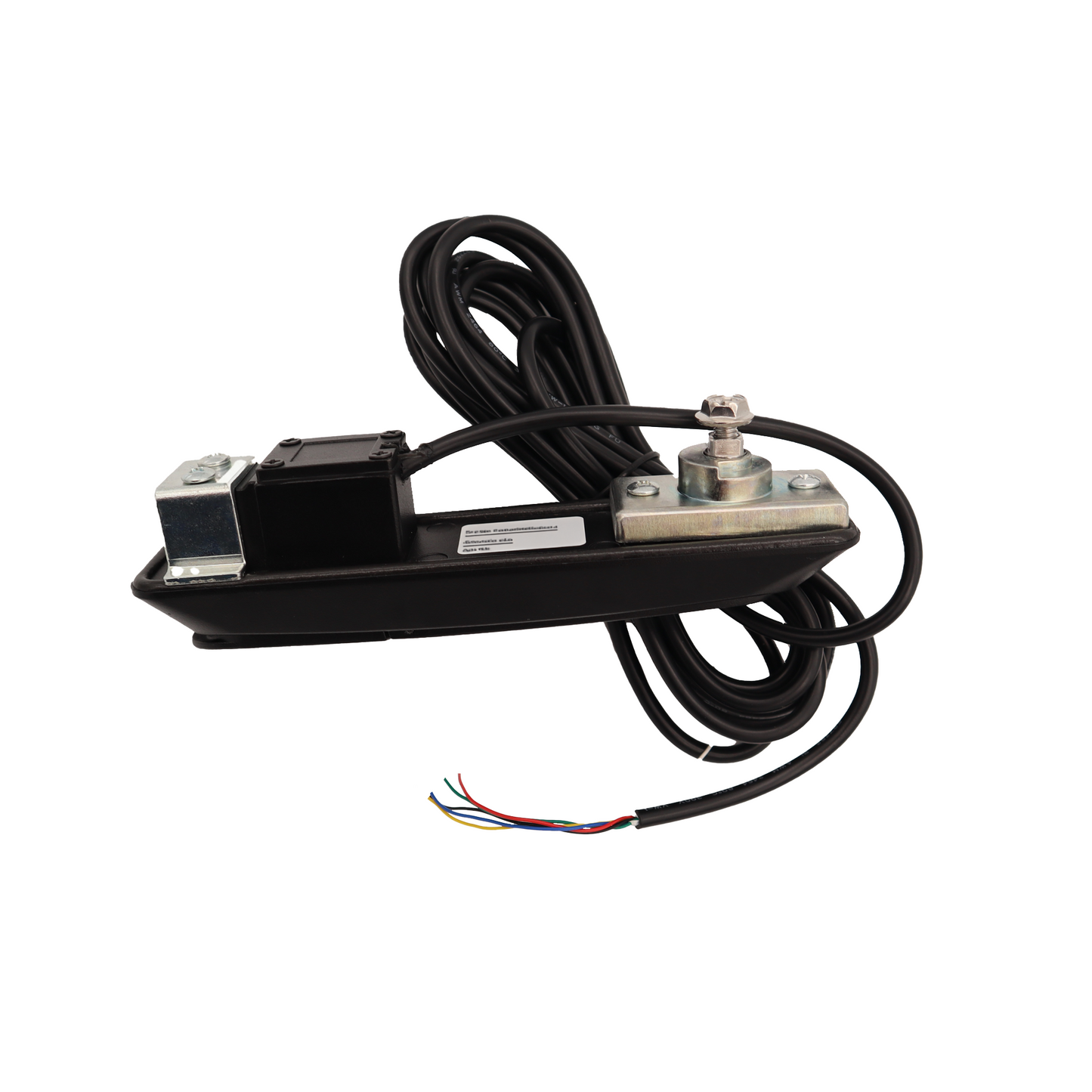

- Includes 3M loose wiring harnessRC2 pry proof rated
- Unlock current ≤350mA
- Standby current ≤50mA
- Mechanical key lockable with cylinder barrel
- Keyed alike 001 (Other codes may be available upon request)
- Cams sold separately

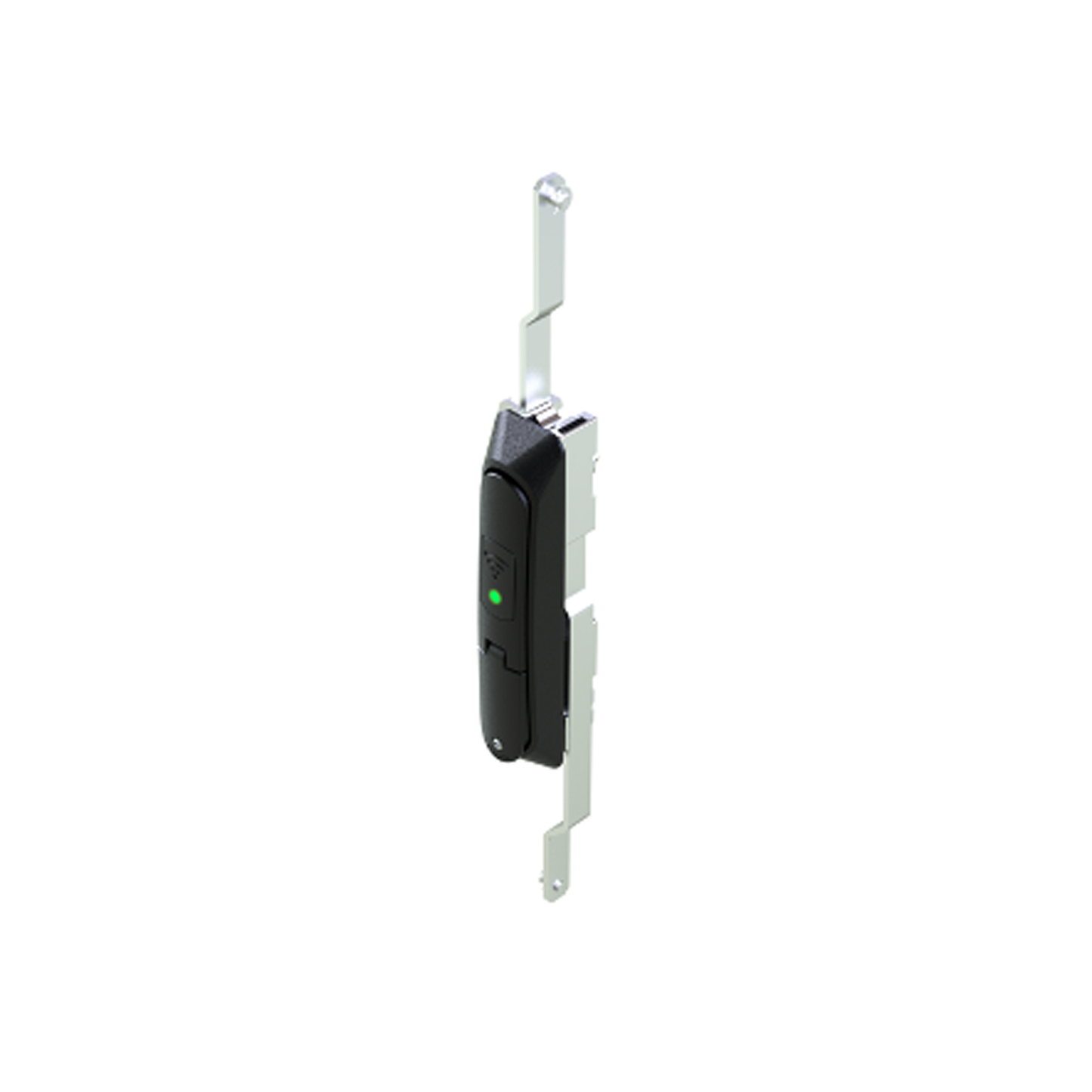

- Rod control version available upon request
Cutout:
- IND-C
Material & Finish:
- Housing: Zinc, textured powder coated, black
- Handle: Zinc alloy, textured powder coated, black
- Mounting bracket: Mild steel, zinc plated
- Cam: Mild steel, zinc plated
- Cylinder: Zinc alloy, zinc plated
Standard Cams Available:
- Note: The DO unlocking time is recommended to be 20s
- Open with mechanical key: When the machine is opened, first open the dust cover with the dust cover key, then insert the mechanical key, press down and rotate clockwise to open the handle.
- Open the IoT Lock with DO remote unlocking: Issue a remote command to unlock the lock, at this time the lock status indicator flashes from blue to green and accompanied by the buzzer sound, at this time, press the PUSH point at the end of the lock handle and the handle will automatically pop up. Rotate the handle to drive the locking mechanism such as a cam or rod control mechanism to complete the opening action.
- Single-point cams available in various H= dimensions
- Three-point cams available
- Roller cams available
Remarks:
- Please note: The IoT Series Electronic Swing Handle is sold as a stand alone unit by Selectlok Australia. We do not supply additional software or control modules.
- In reference to how the handle operates: The manufacturer of an enclosure unit utilising a IoT series handle will require to source and incorporate a third party control box/module and associated software to run the system. It is Selectlok's understanding that this can include either an "out of the box" software solution or custom developed. (To have user based access and dedicated user rights etc, The handle would require security specific software.)
-
The handle simply searches for a signal and thus can be utilised for a wide range of applications. Example:
- This could simply come from incorporating a basic 12V battery and switch installation. OR...
- It could be configured to communicate with an onboard control module, custom software and a 5g module for remote communication from tablets or laptops via the internet.
