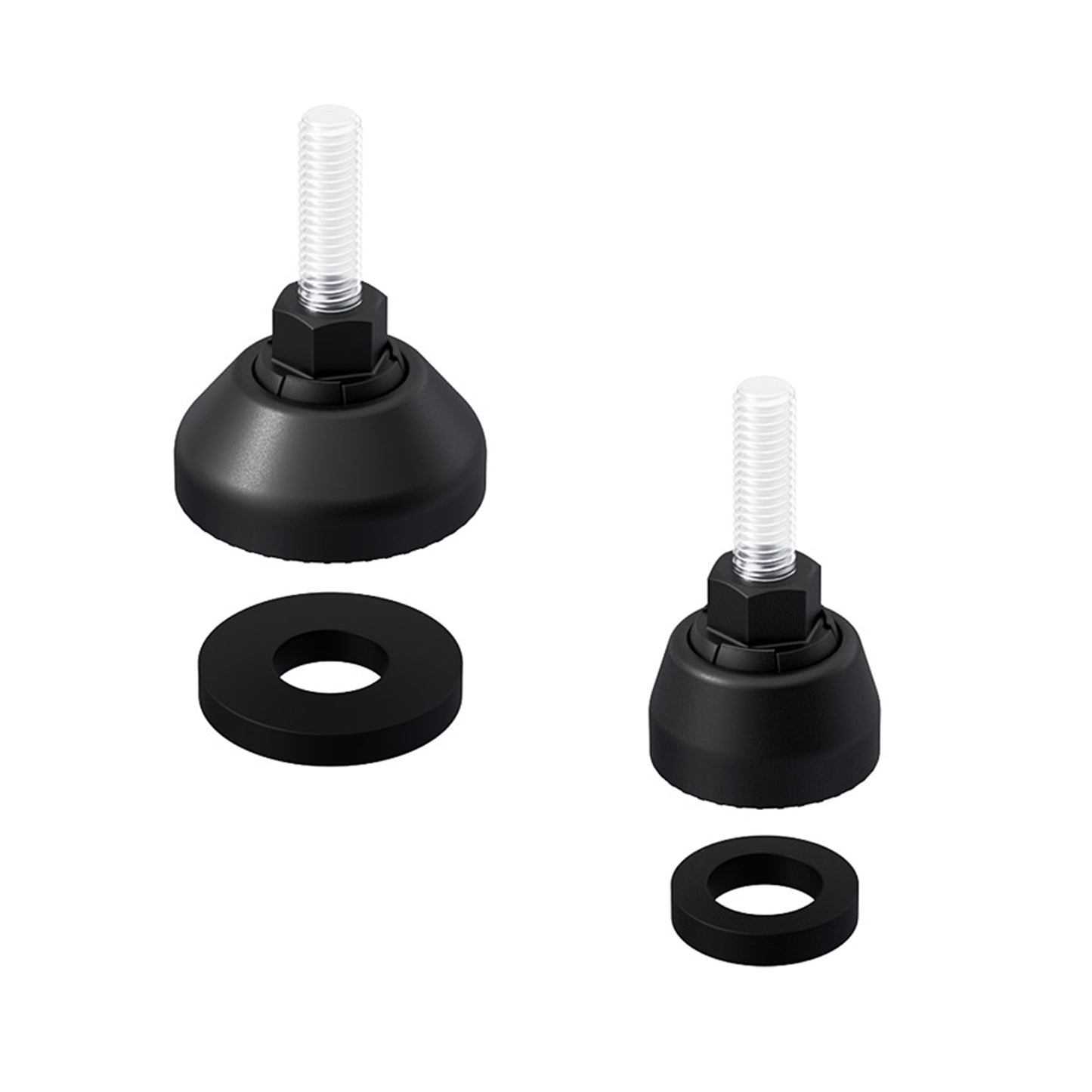

Dirak Levelling Foot (M6/M8 Thread)

Dirak Levelling Foot (M6/M8 Thread)

SKU:580-9008.00-00001; 580-9007.00-00001; 580-9010.00-00001; 580-9009.00-00001

Price on Application

Please check availability: Dirak products are generally custom ordered from the supplier based on individual project requirements. Please note, some items may not be readily available in stock at time of enquiry. Delivery times from Dirak can vary accordingly however the majority of orders take between 14-21 days to be received into warehouse by Selectlok Australia.

Features:

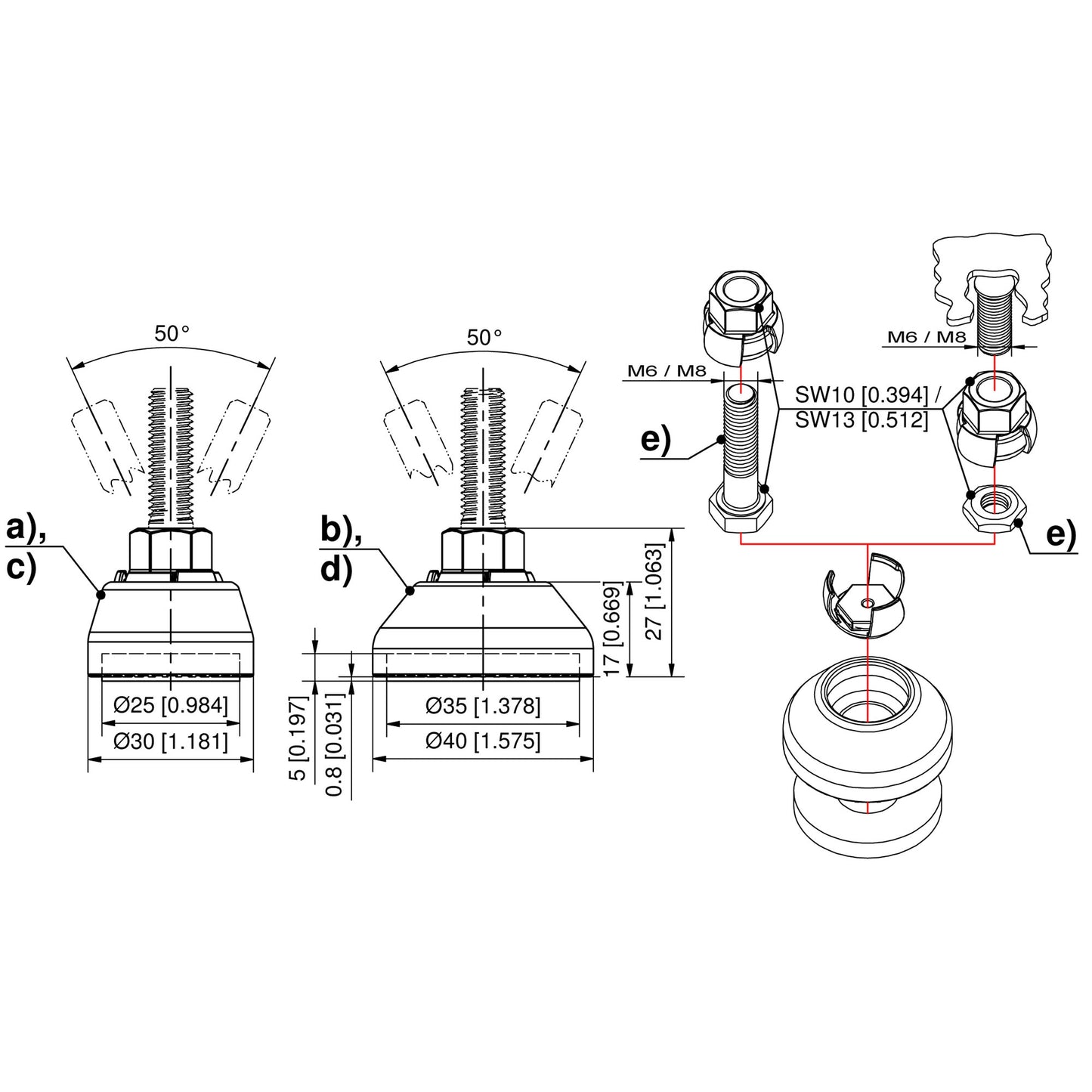

  • Length of hexagon head screw DIN 933/ISO 4017 freely selectable (e) or hex. nut, low form DIN 439/ISO 8675/ISO 4035
  • Inclination angle of +/- 25°
  • Large contact surface due to the use of a large ball in conjunction with a small plate diameter
  • No lifting forces because the ball is stored in an indentation. This prevents the edge of the plate from breaking
  • The base plate is designed smaller relative to the load. This space-saving method makes it possible to mount the Levelling Foot closer to the edge of products, which is advantageous for housing that stand next to each other.
  • Anti-slip insert included. This part also absorbs vibrations and protects the floor against abrasion

    Material & Finish:

    • Plate, sleeve and nut = PA6
    • Anti-slip insert = NBR

    Download Datasheet

    Part Numbers: 580-9008.00-00001; 580-9007.00-00001; 580-9010.00-00001; 580-9009.00-00001
