Drawer Slide Locking Bar Kit - Medium-Duty Range (3053)

SKU:3053-LBAR

$30.01 AUD

~~$0.00 AUD~~ $30.01 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)

Locking Bar Accessory Kit: For medium-duty drawer and fridge slides. (125kg range with external locking tabs)

Features

Allows smooth, single handed operation of drawers and slides
Easy installation
High rigidity design with enhanced stability
Bar length (mm) can be cut-down and modified to suit drawers and slides of different widths

Dimensions, & Finish

Tube length: 1,000mm/1 mtr. (L) x ø12mm (OD)
Tube & lever finish: Mild steel, black powder-coated

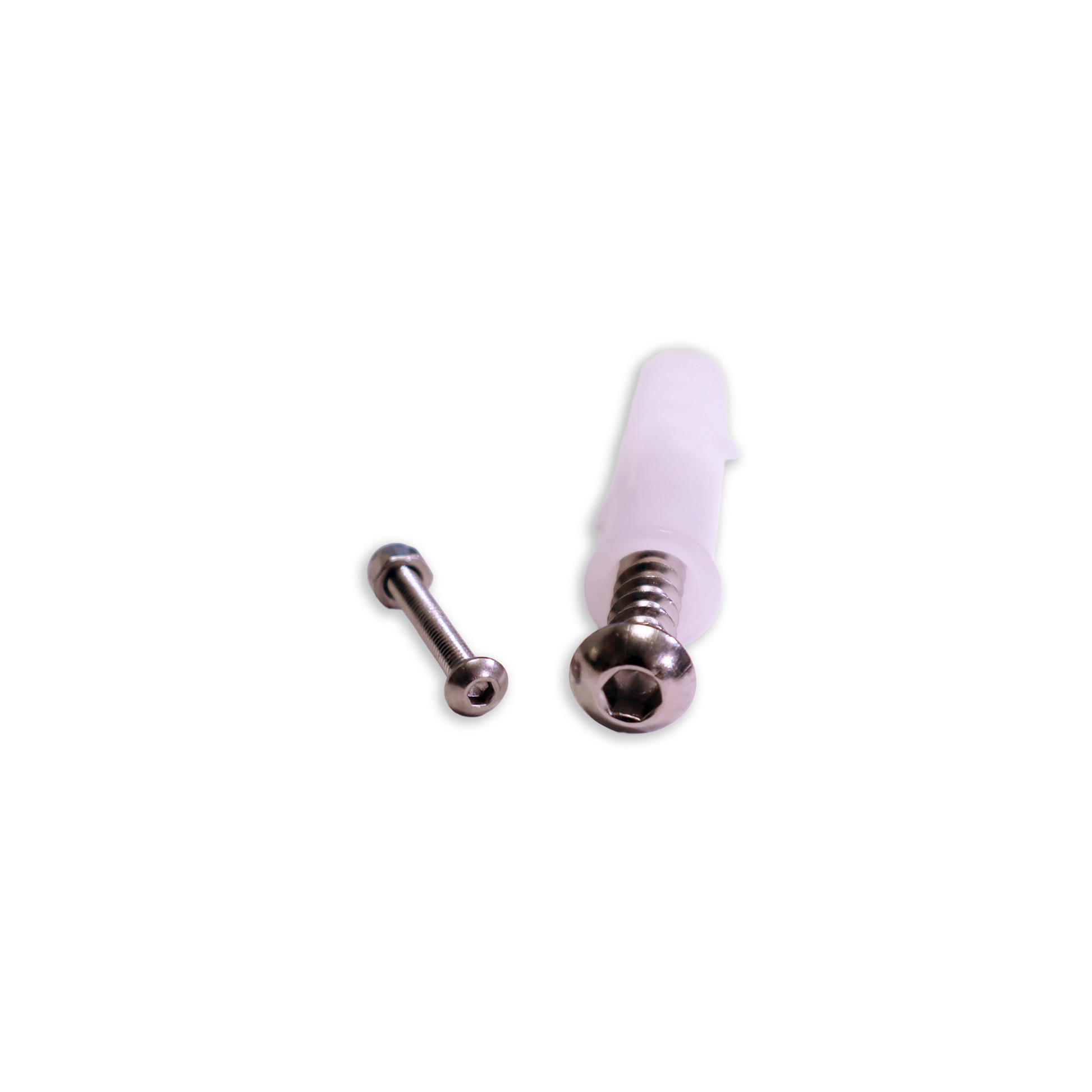

Fixing hardware: Stainless steel with nylon bushings

Remarks

Suits (only): 125kg medium-duty "locking" drawer slides (3053-###-L)

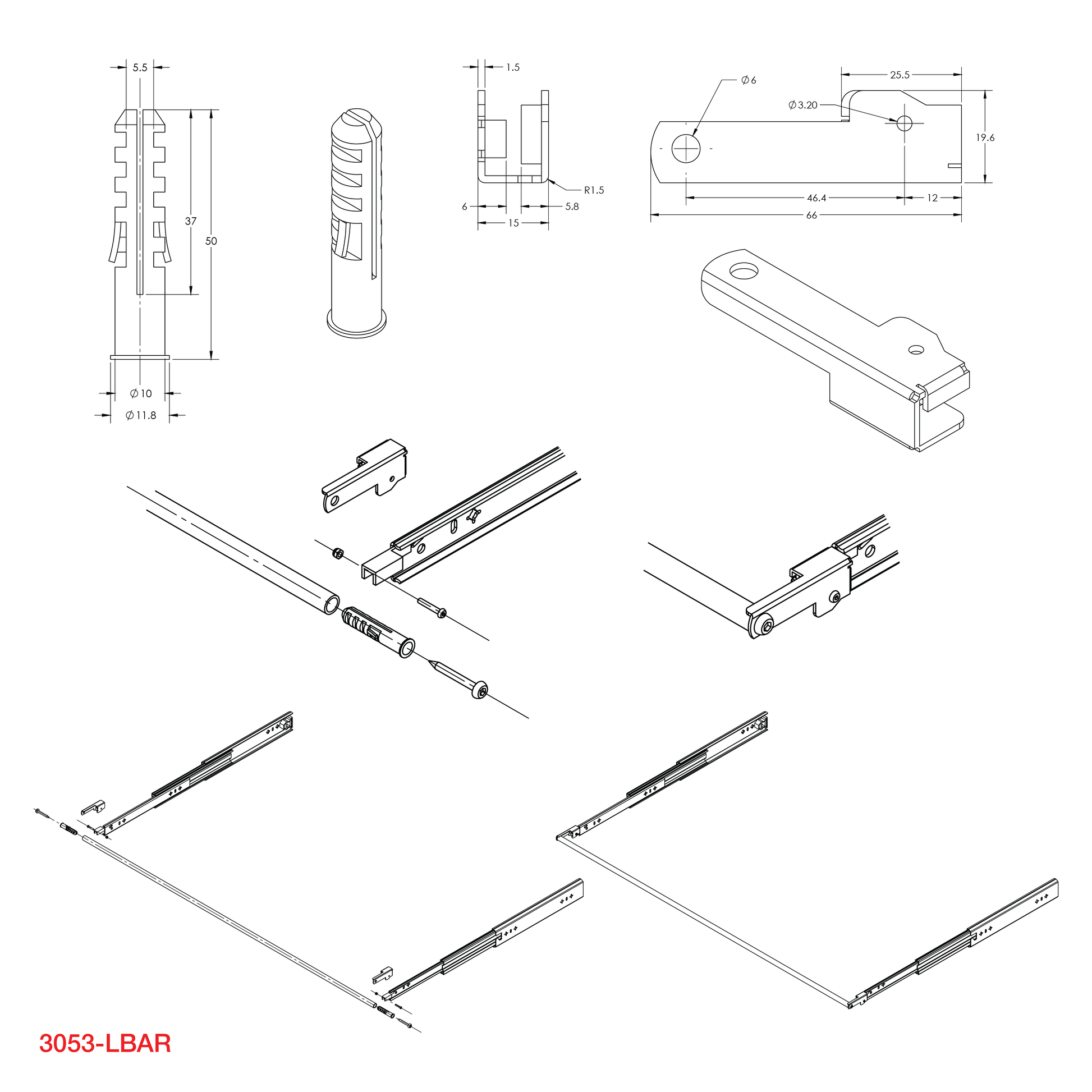

When fitting: Blue molded locking tab cover on slides needs to be removed to allow fitment of lever set.

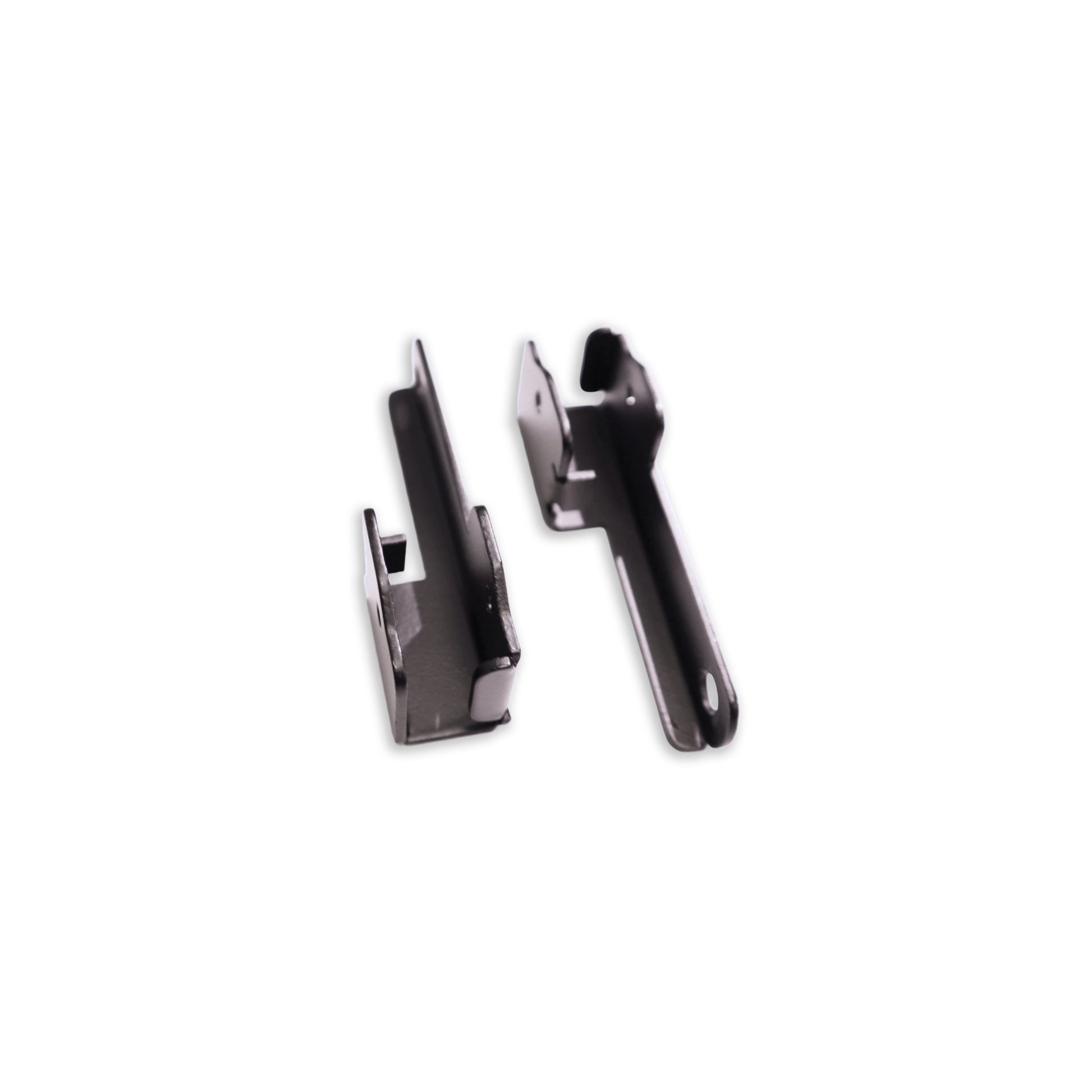

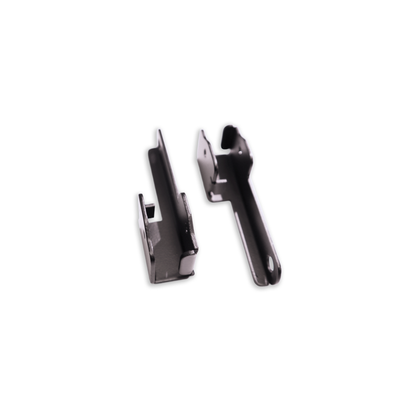

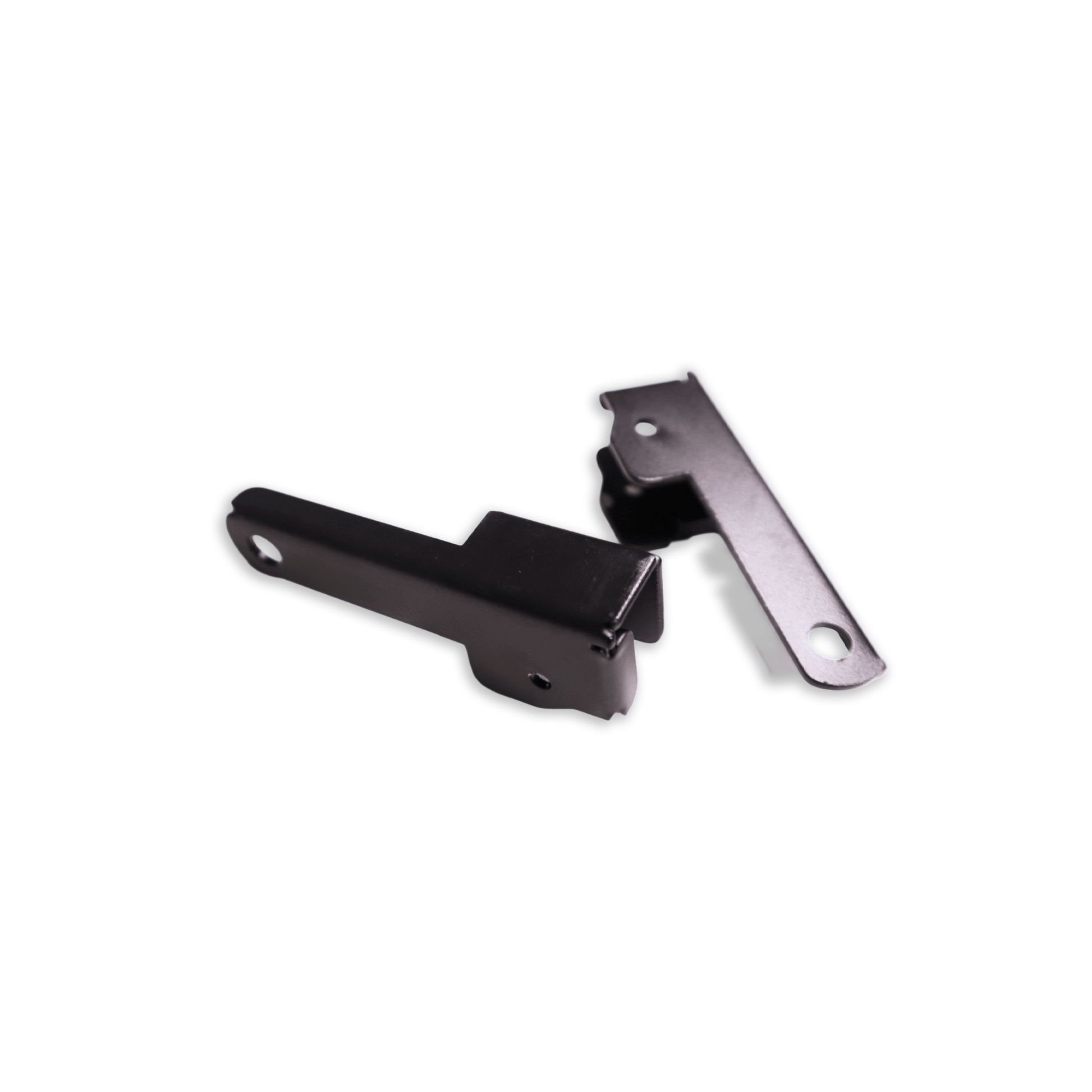

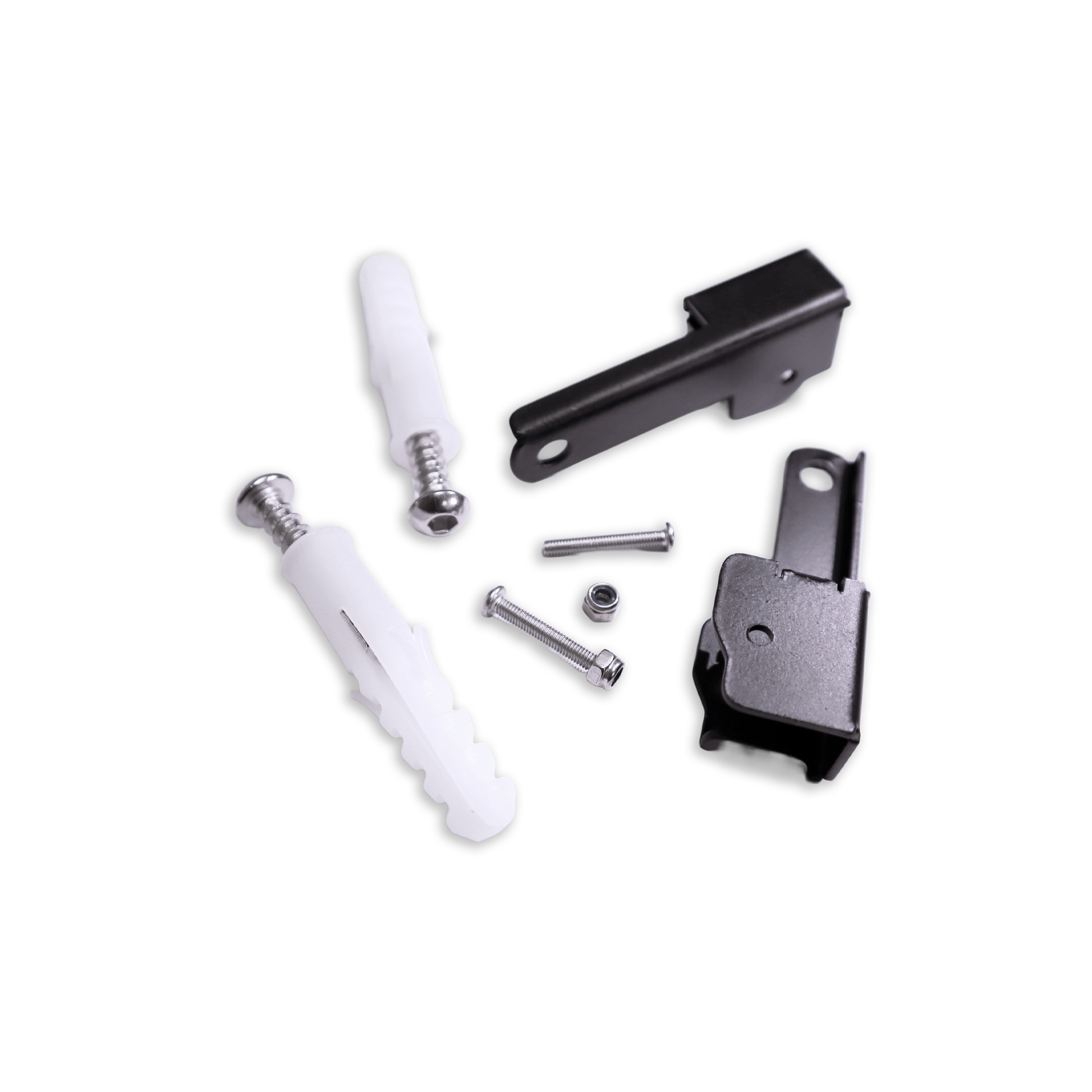

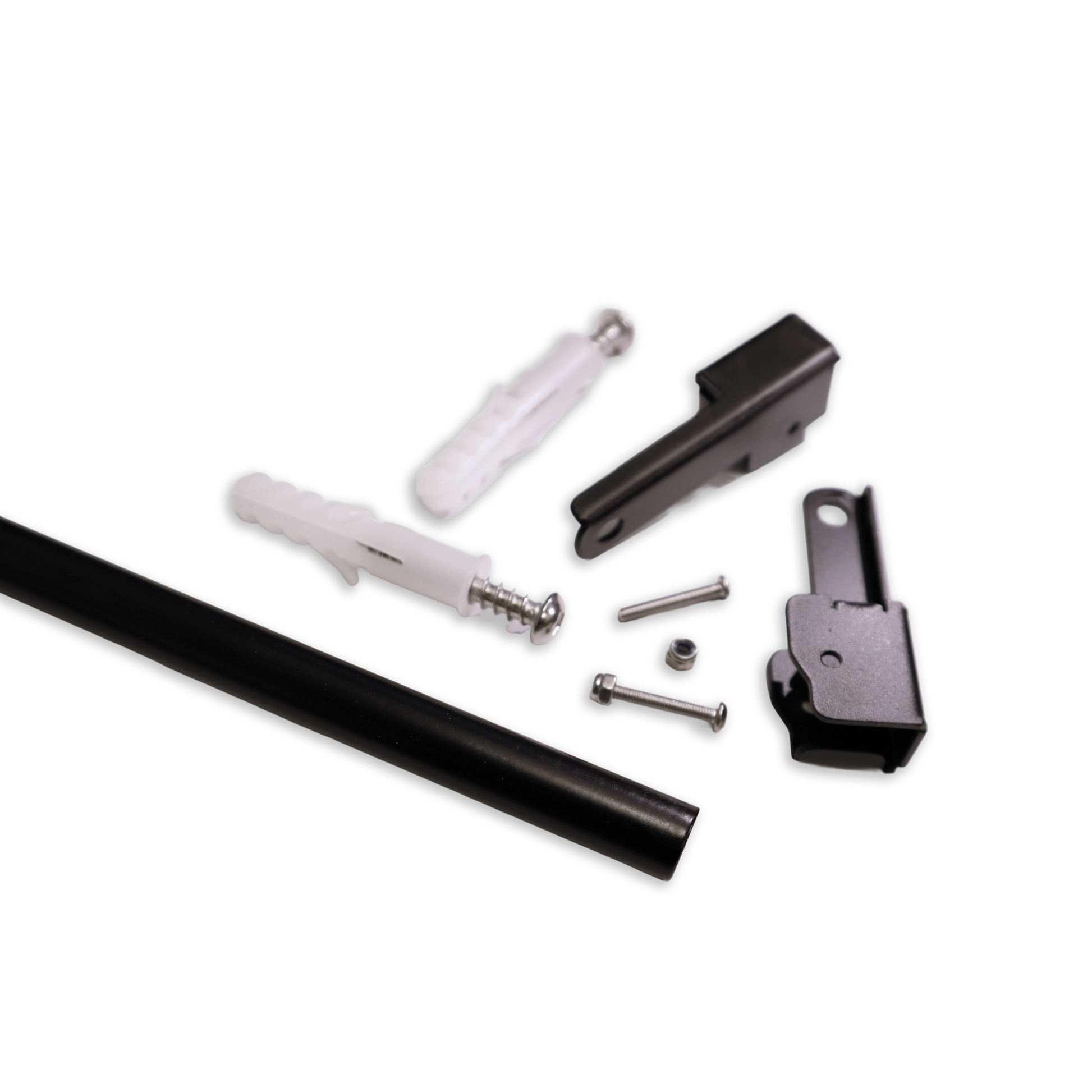

Comes with: Lever sets (2x) with connection rod
Perfect for: Van & ute canopy drawers, fridge slides, slide out kitchens & pantries

Please Note

Opening/Closing:

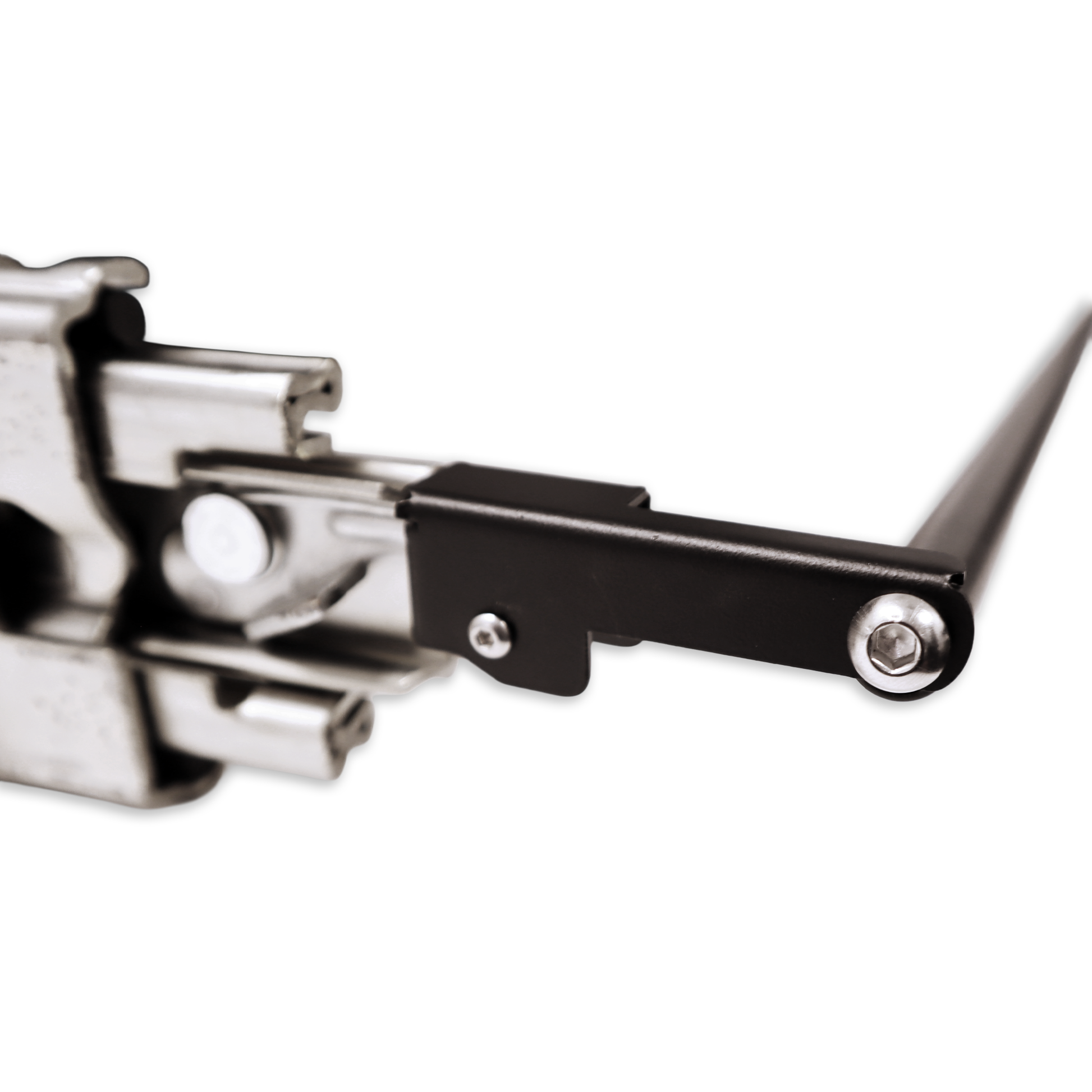

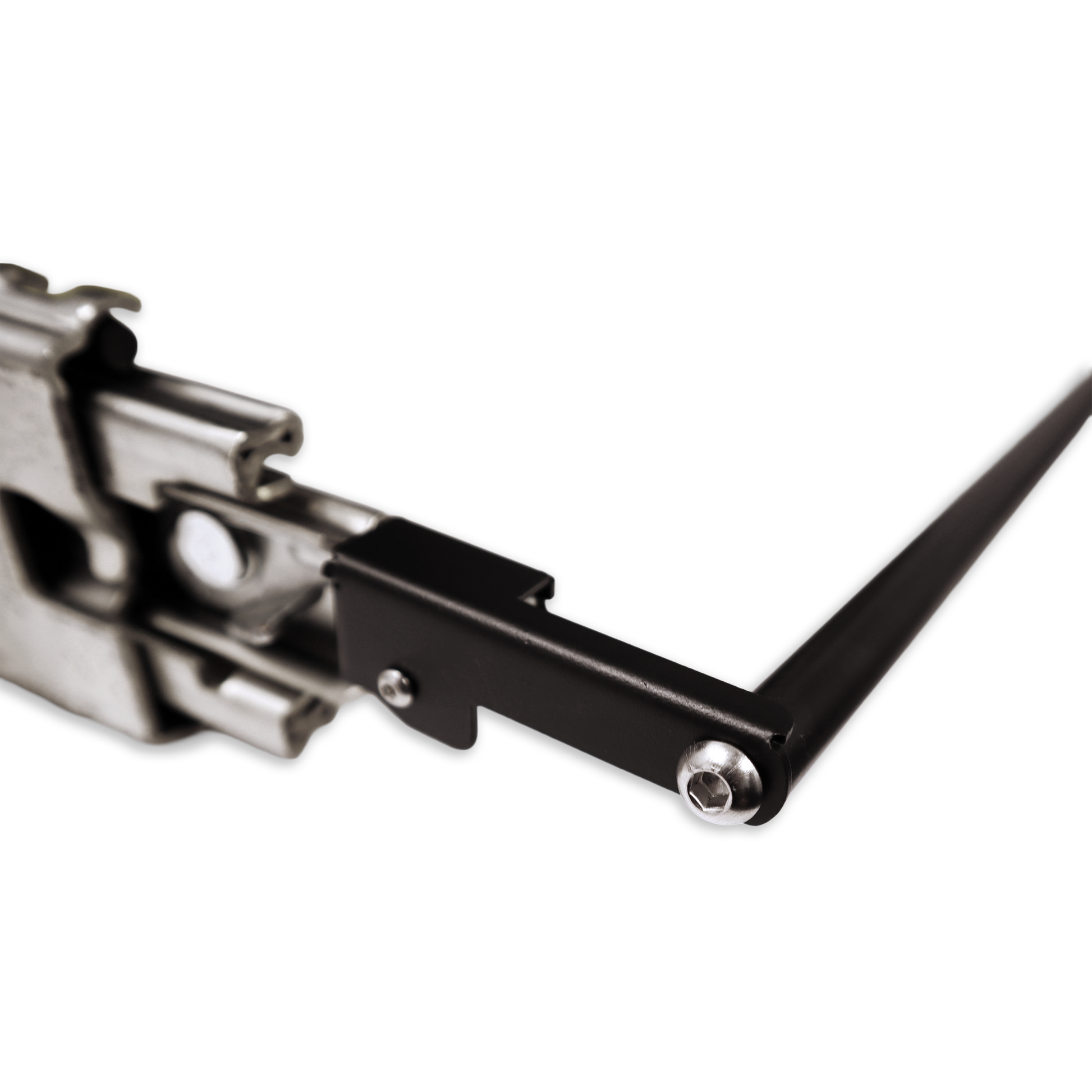

Locking bar is designed to act as a one-piece lever mechanism for activating lock/unlock tabs on "locking" style drawer and fridge slides.

Due to OHS practices they are not intended to be used as a "handle" for physically opening/closing the draw unit.

Please use a dedicated grab handle for this function of your draw design

Lever disconnects:

3053 drawers slide range features a lever disconnect. When disconnecting the drawer rails, the levers move in opposite directions to release. (Don't hold/engage drawer lock tabs whilst operating to full extension under general use scenarios.)

Technical Resources

Please View Our Technical Datasheet
