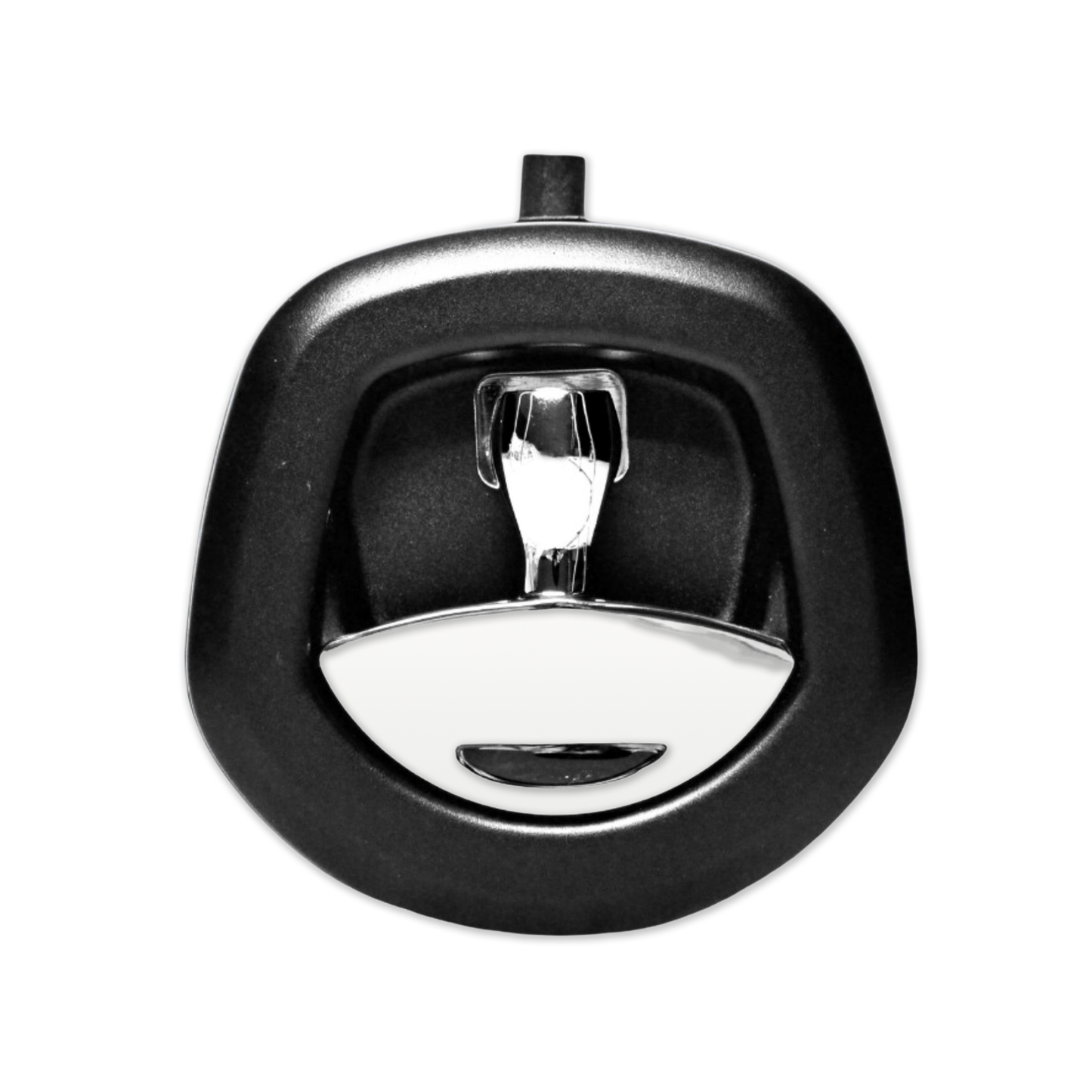

NP0044: Folding-T Handle with Mounting Bracket (MLA)

NP0044: Folding-T Handle with Mounting Bracket (MLA)

NP0044-001-CH06

$75.79 AUD
$0.00 AUD $75.79 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)
Please Note: Compatible accessories & componentry (SOLD SEPARATELY)

NP0044: Folding-T Handle with Mounting Bracket | MLA (Manual Locking Actuation)

Features

  • Aesthetically pleasing, contemporary folding-t design
  • Keyed alike: CH05, CH06, CH08, CH09

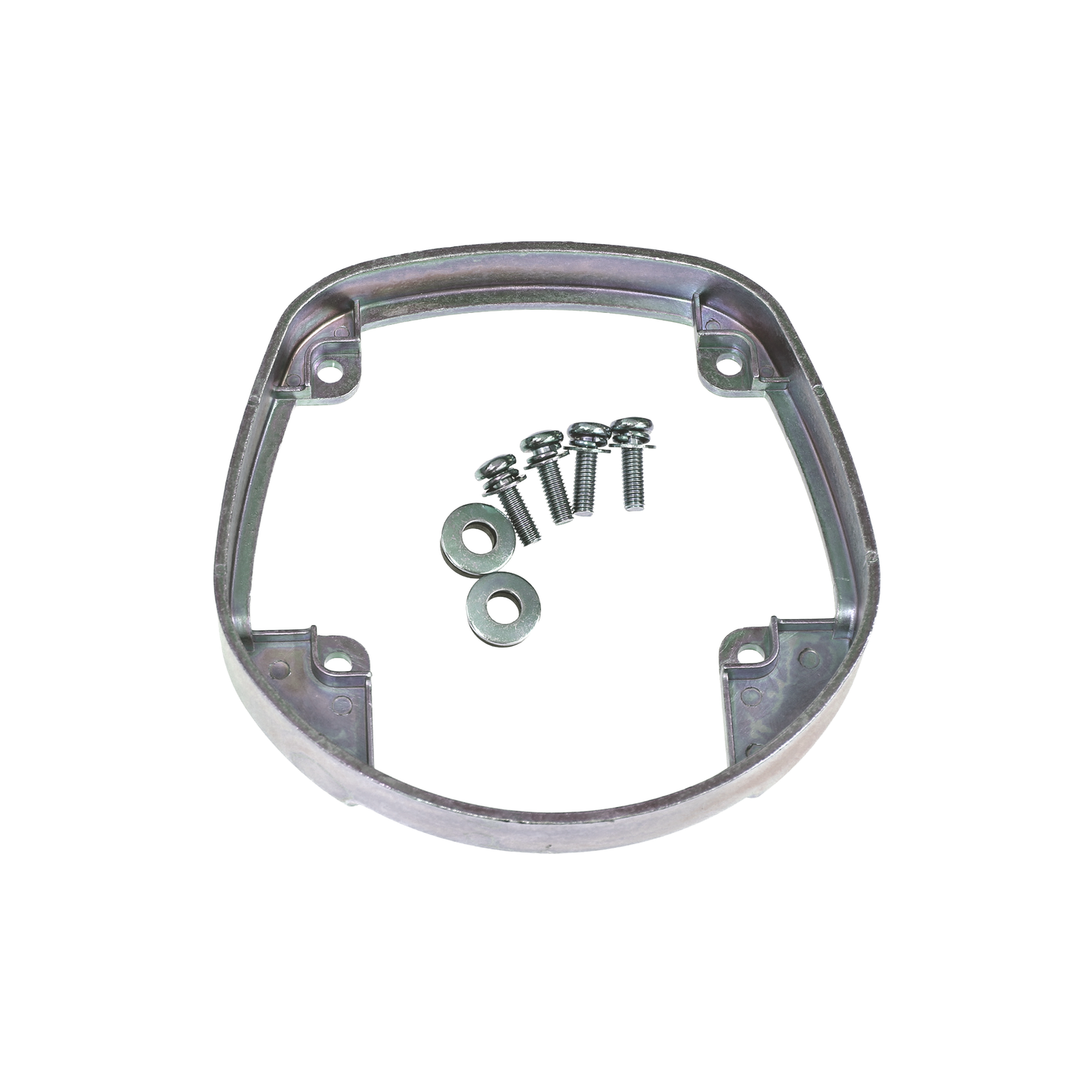

  • Rear fixing, mounting bracket
  • Supplied with gasket
  • Operational features:
    • 4.5mm of compression action
    • Manually actuated locking [MLA] handles (Integrated electronic central locking (ELS) handles with manual key override also available)
    • Integrated padlock hasp (Ø8mm)
    • 90° handle rotation
    • Adjustable three-point roller cam

Dimensions, Materials & Finish

Dimensions

  • Handle dish: 139mm (H) x 139mm (W) x 80mm (D)
  • Cutout profile: 106mm (H) x 90mm (W)
  • Grip range: 28mm ~ 48mm (H=)
  • Roller:
    • Short - 19.8mm (L) x Ø17mm / Ø16.7mm (dia/taper)
    • Long - 34.5mm (L) x Ø17mm / Ø16.7mm (dia/taper)

Materials & Finish

  • Handle and dish: Zinc alloy, die-cast
  • Cam, shaft and bracket mount: Zinc die-cast, zinc plated
  • Roller: Glass fibre reinforced polyamide (PA6)
  • Colour and finish (dish/handle):
    • Black / Black - Black powder-coated
    • Chrome / Chrome - Chrome plated
    • Black / Chrome - Black powder-coated & Chrome Plated

Remarks

Includes: 2x alternative length roller options (interchangable)

Compatible accessories & componentry: SOLD SEPARATELY

Supporting Technical Resources

View Our Technical Datasheet



Glossary Of Terms

MLA

Acronym; Commonly associated w/ reference to the actuation methods of our range of Manual Locking Solutions products.

  • MLA: Manual Locking Actuation
