PI5367: 50x50 Screw-On Hinge (Zinc, Black EDPC)

PI5367: 50x50 Screw-On Hinge (Zinc, Black EDPC)

PI5367-09-B

$13.96 AUD
$0.00 AUD $13.96 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)

 Features

  • Industrial butt hinge, screw-on design (SOH)
  • Engineered for use with flush mounted doors
  • Suitable for outdoor applications
  • 270° rotation
  • Mounting:

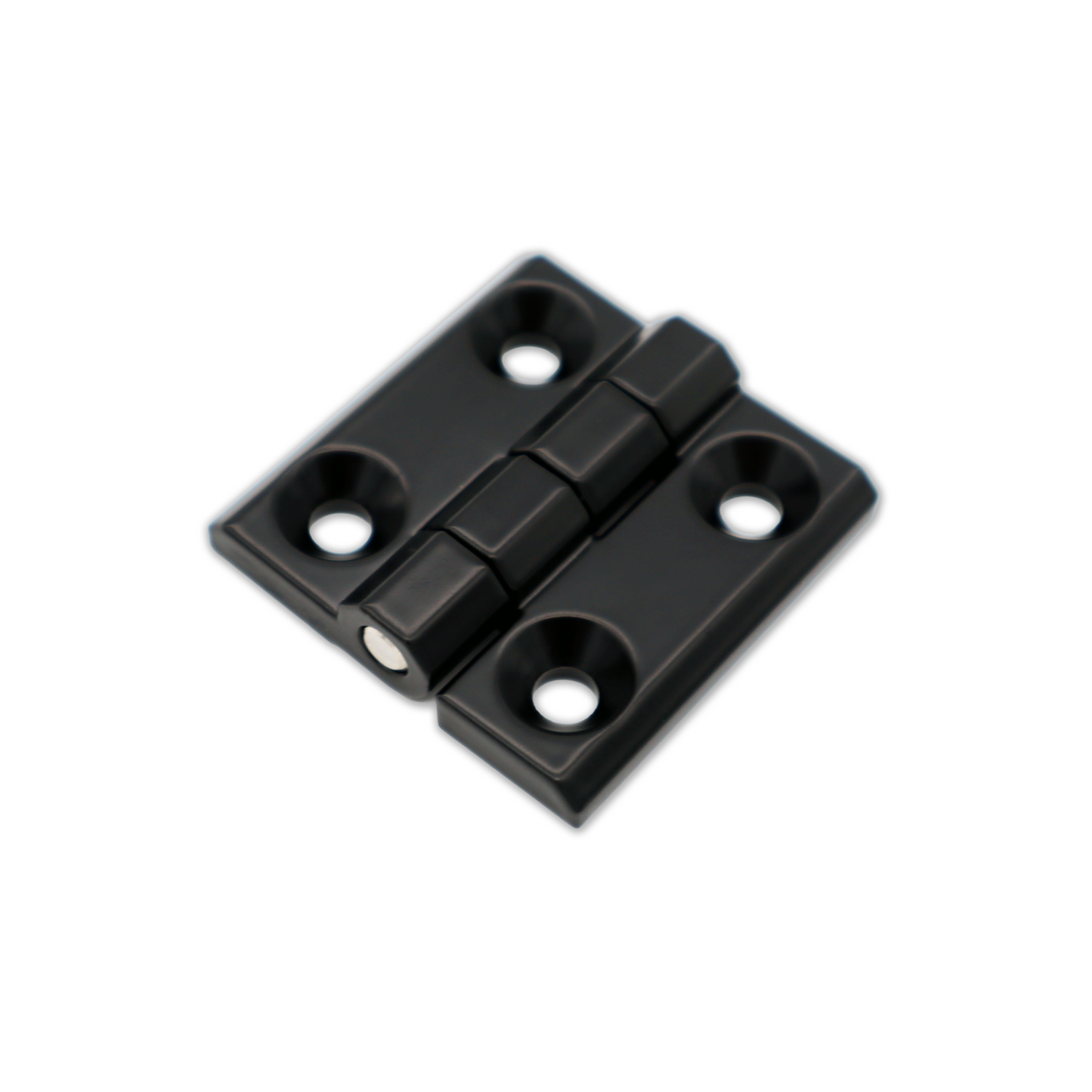

    • Front fixing - Ø 6.6mm counter-sunk holes

Maximum Load Capacity

  • Axial Load: Tested to 5,044N force
  • Radial Load: Tested to 7,192 N force
    • Note: 10N (newtons) is equivilent to 1kg (kilograms) of force/pressure.

Materials & Dimensions

  • Hinge: Zinc, die-cast
  • Pin: Stainless steel 304
  • Finish: Black, EDP coated
  • Base dimensions: 50mm (L) x 50mm (W) x 11mm (H)

Remarks

NEW PART NUMBER

  • M099-1-2-1 (Obsolete)

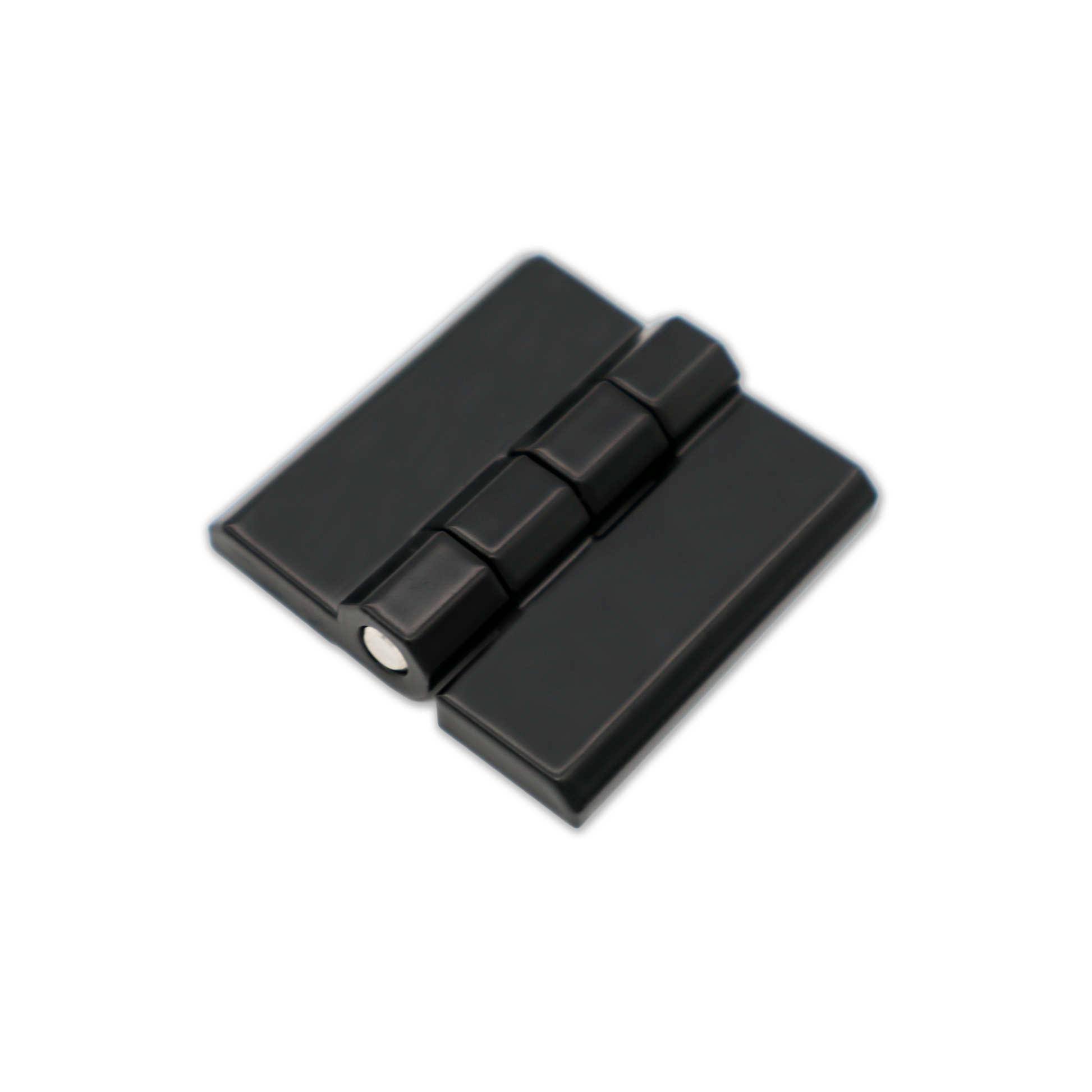

    • Rear fixing variant: Now referred to as part number | PI5367-09-B
  • M099-1-2-4 (Obsolete)
    • Front fixing variant: Now referred to as part number | PI5367-10-B
