PI5367: 60x90 Screw-On Hinge (Zinc, Black & Chrome)
PI5367: 60x90 Screw-On Hinge (Zinc, Black & Chrome)
SKU:PI5367-04-B
Regular price
$15.54 AUD
Regular price
$19.42 AUD
Sale price
$15.54 AUD
Taxes included.
Shipping calculated at checkout.
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)
Quantity
Couldn't load pickup availability
Features
- Industrial butt hinge, screw-on design (SOH)
- Engineered for use with flush mounted doors
- Suitable for outdoor applications
- 270° rotation
-
Mounting:

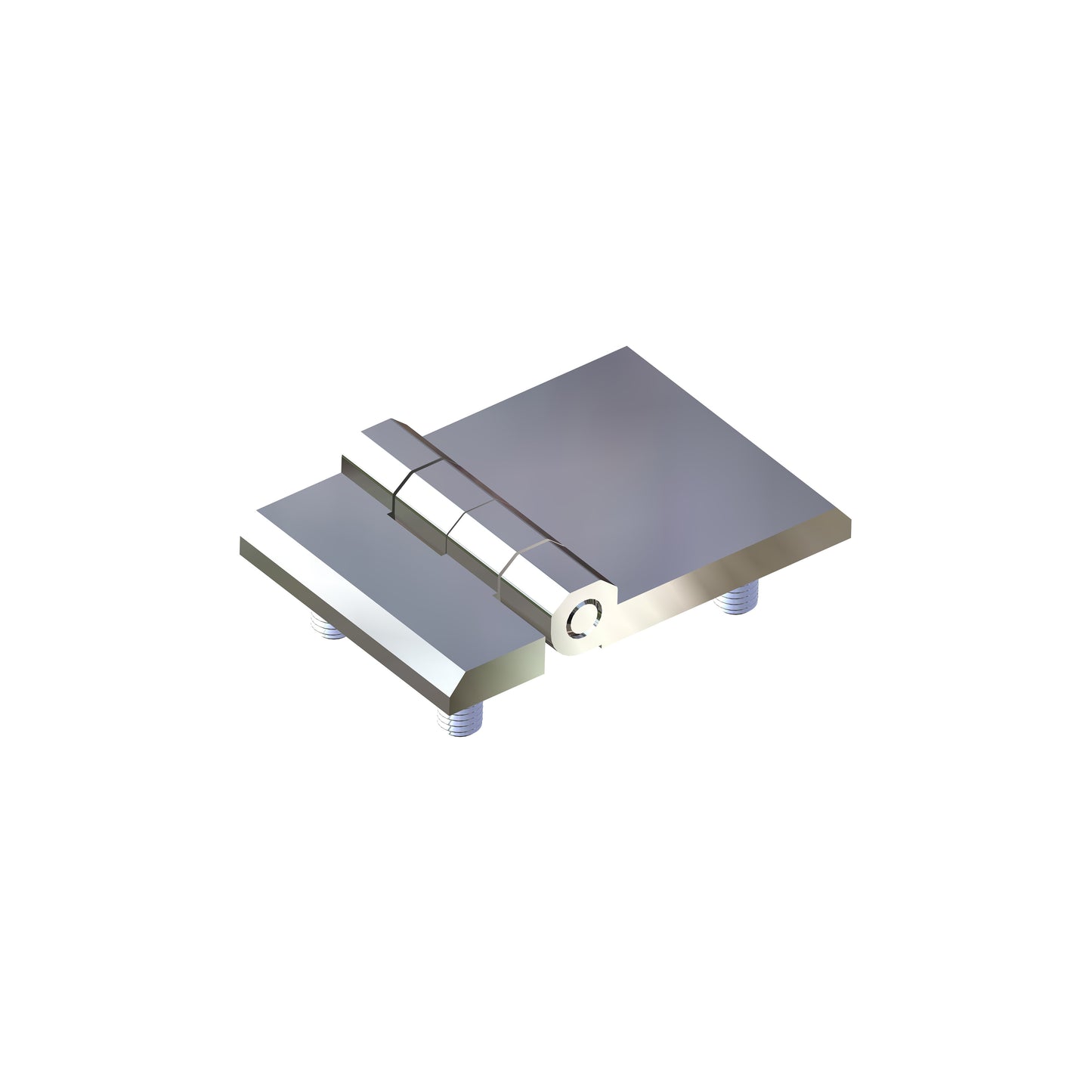

- Rear fixing - M8 x 14.5mm studs

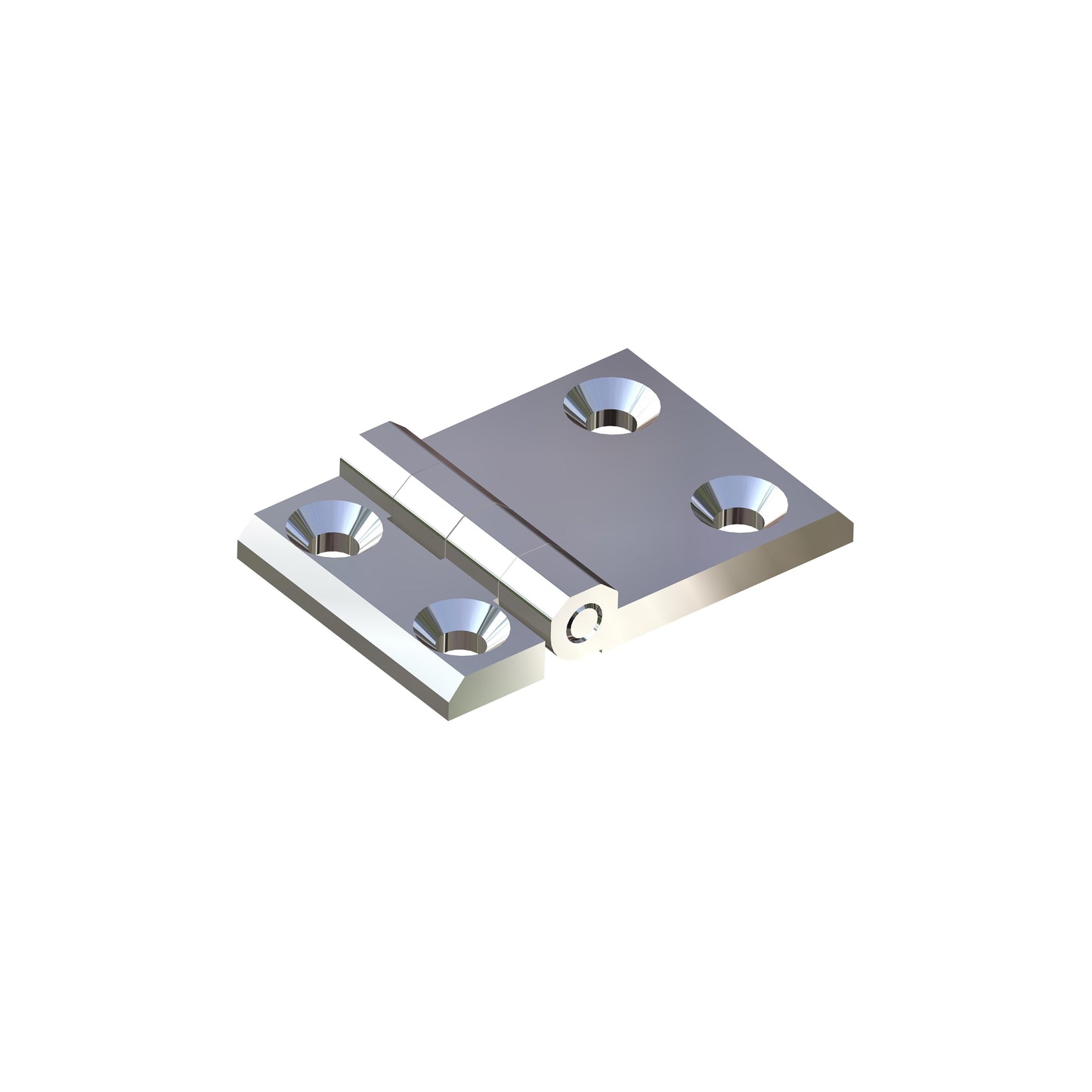

- Front fixing - Ø8.5mm holes
Materials & Dimensions
- Hinge: Zinc, die-cast
- Pin: Stainless steel 304

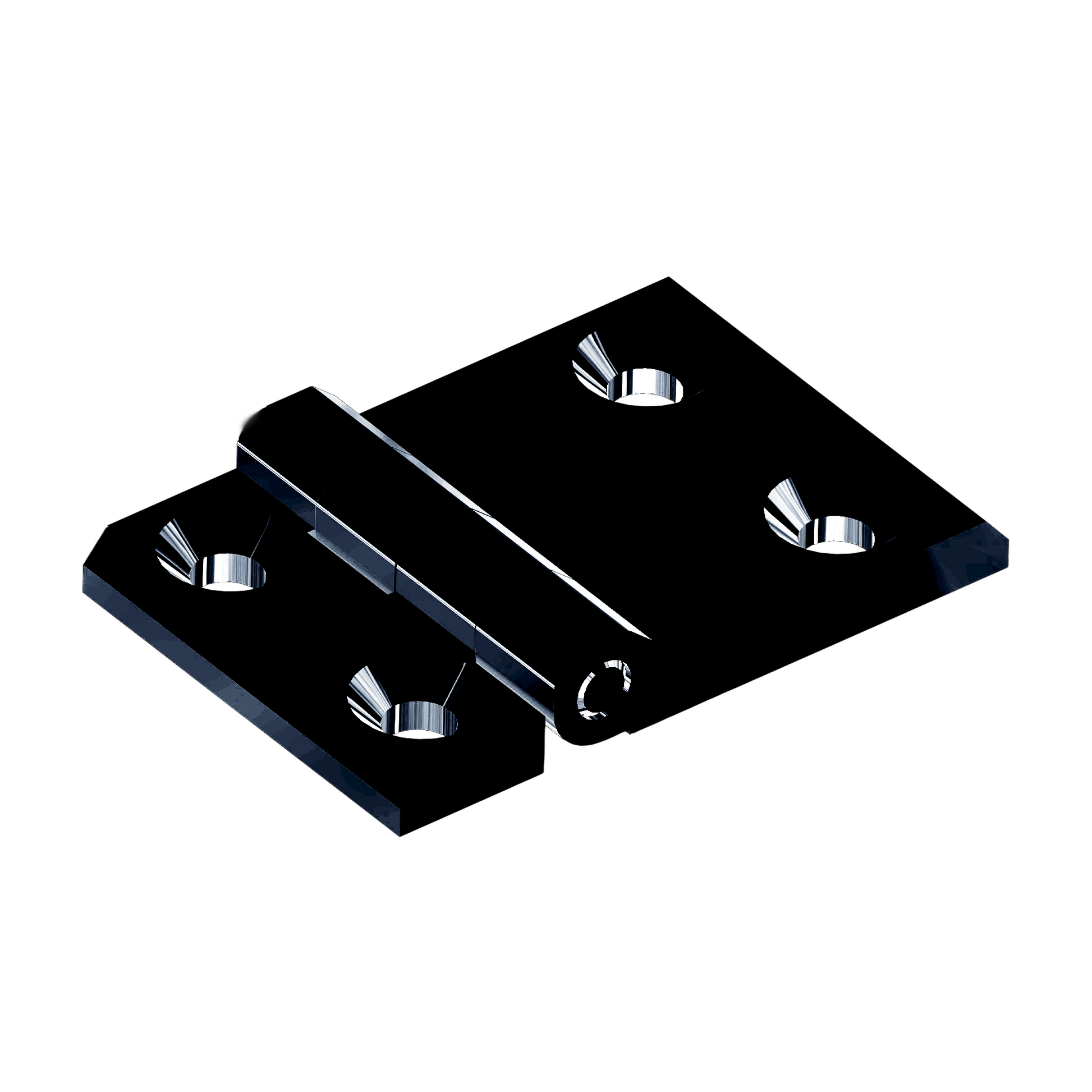

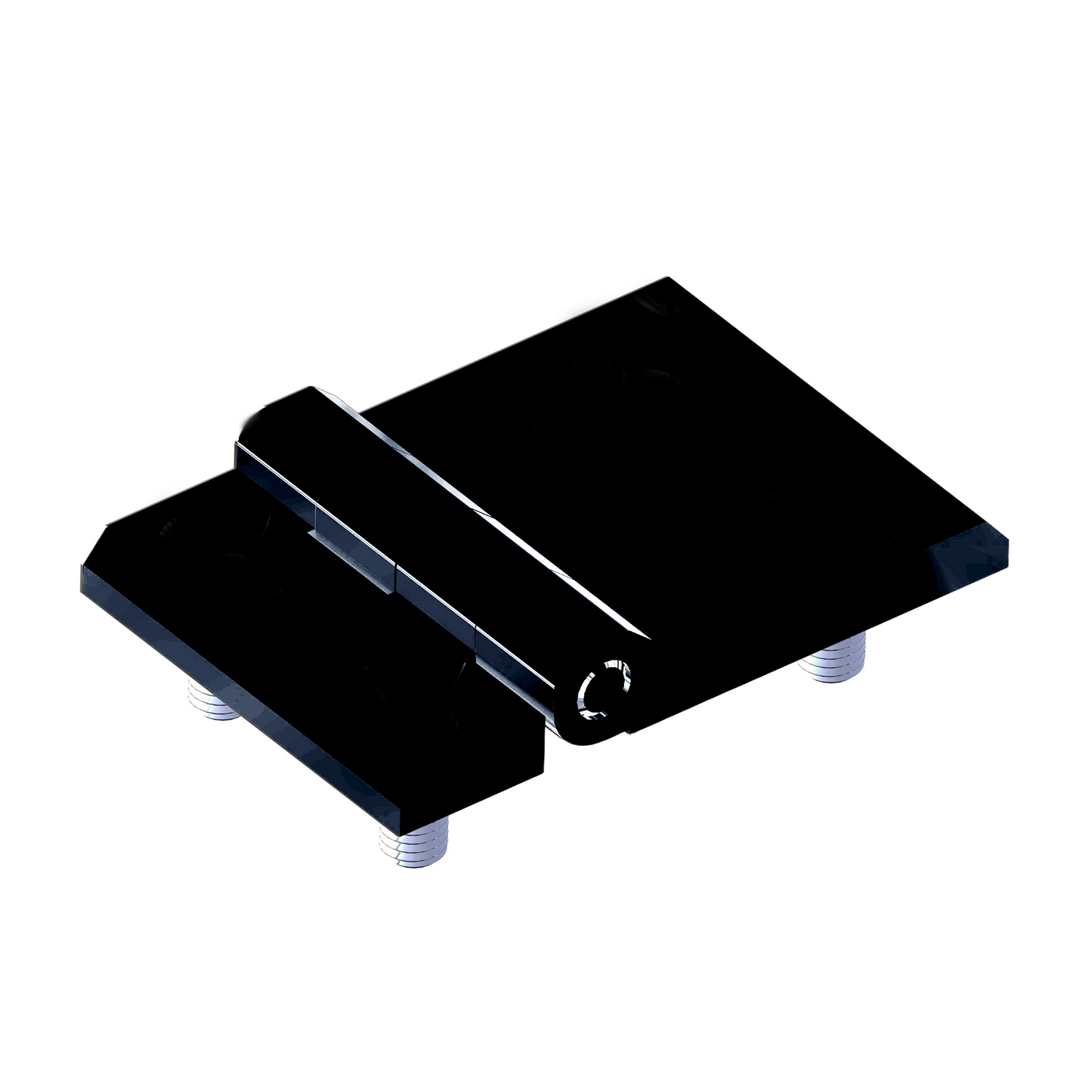

- Finish: Black, EDP coated OR chrome plated
- Base dimensions: 60mm (W) x 90mm (L) x 14.5mm (H)
Maximum Load Capacity
- Axial Load: Tested to 5,044N force
-
Radial Load: Tested to 7,192 N force
- Note: 10N (newtons) is equivilent to 1kg (kilograms) of force/pressure.
Remarks
- Alternate dimensions and/or fixing styles: Availability on request. (Subject to MOQ's and extended leadtimes) Contact Us.
View Our Technical Datasheet
