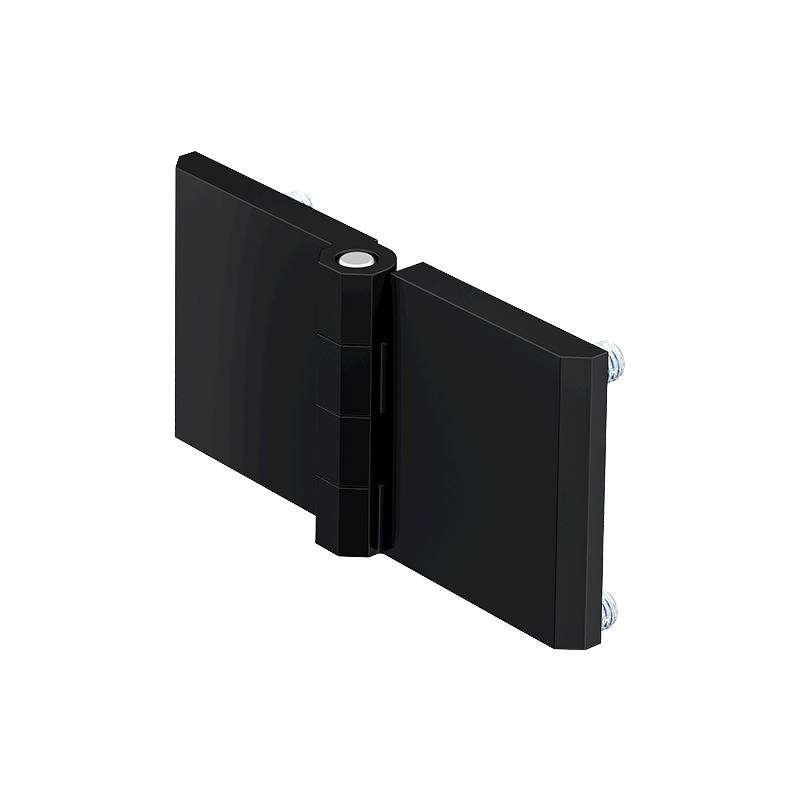

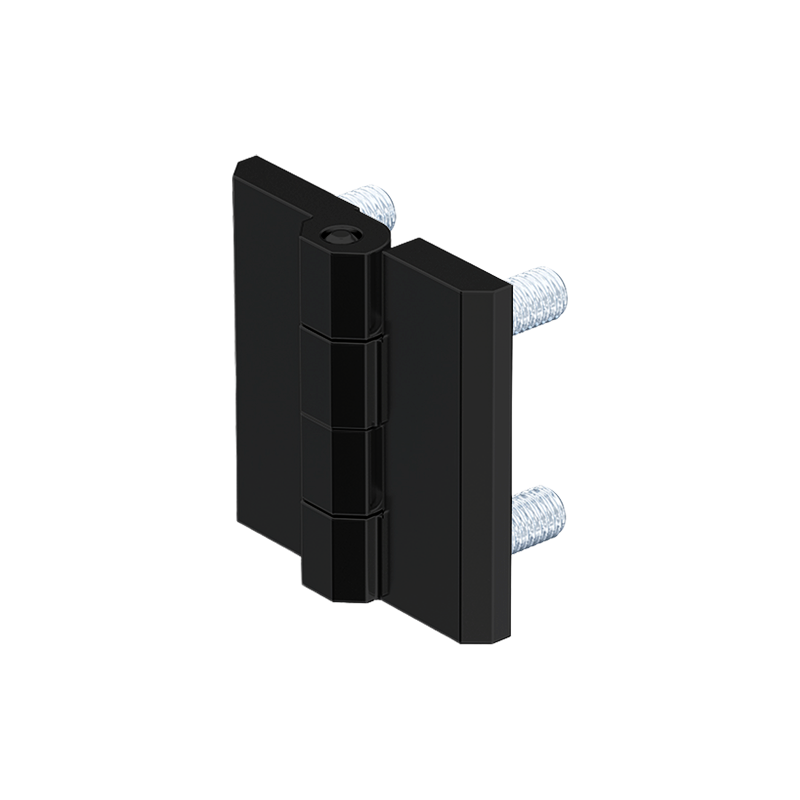

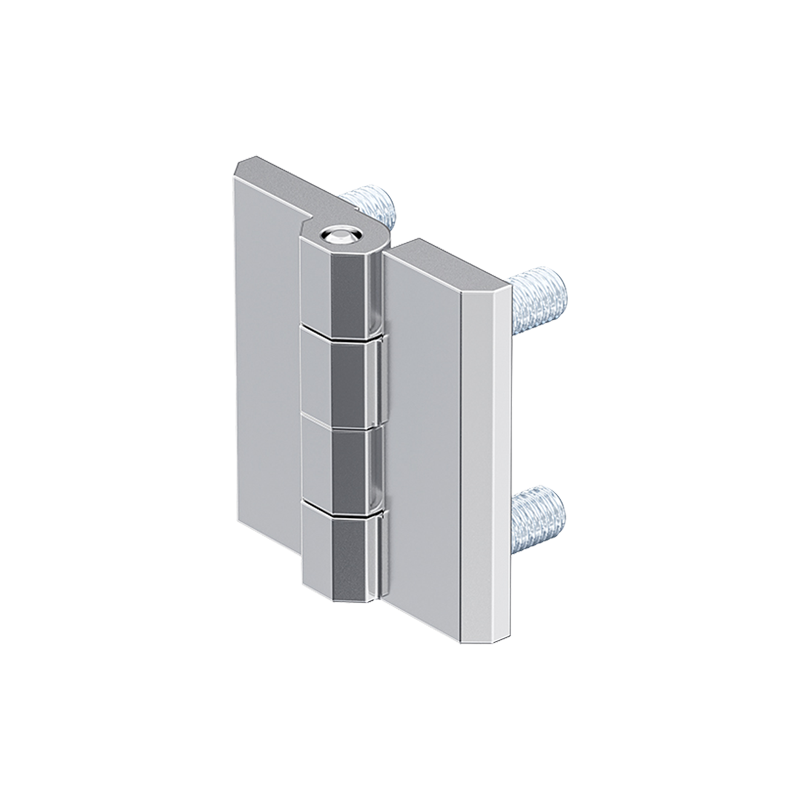

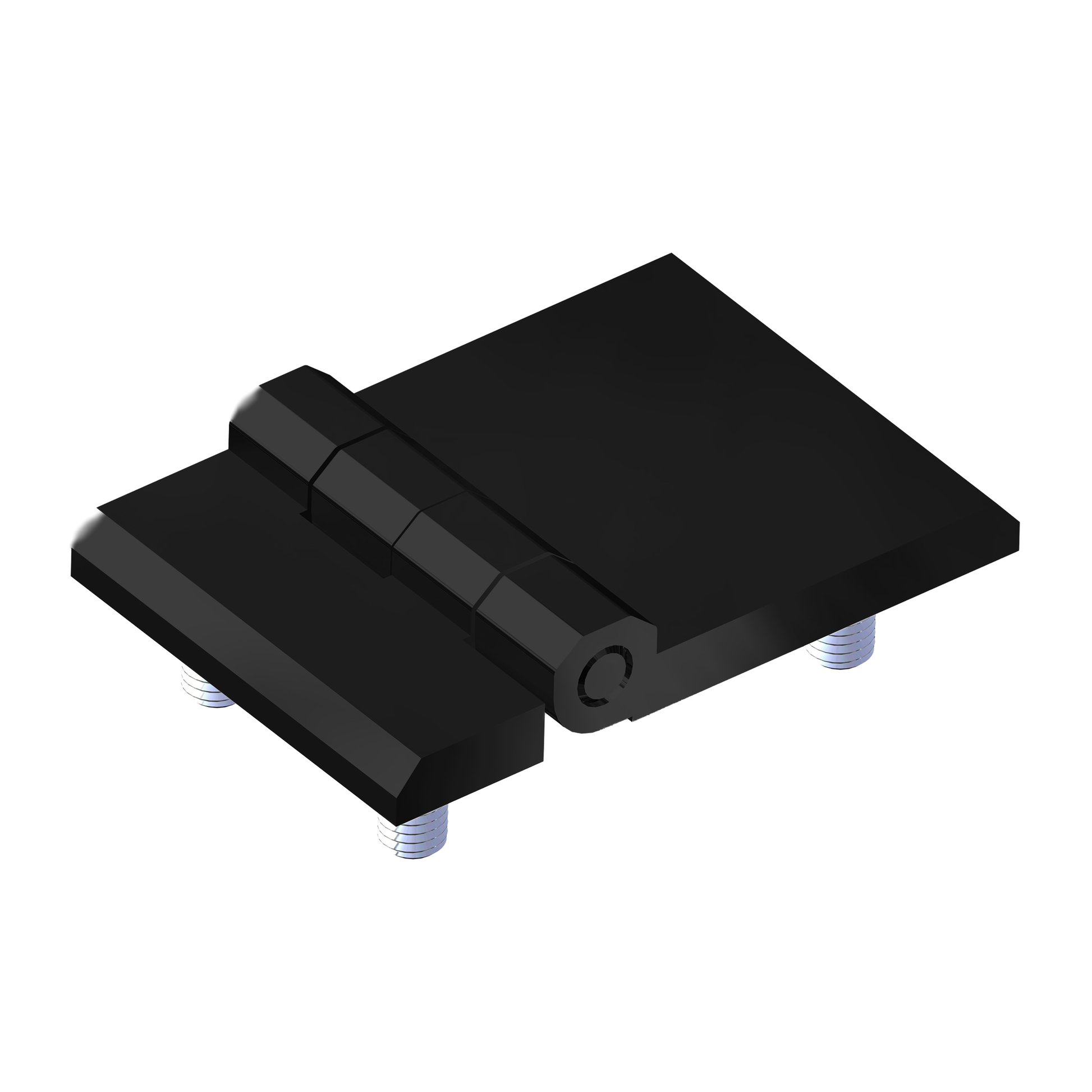

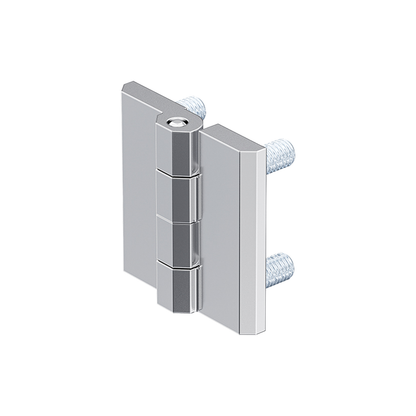

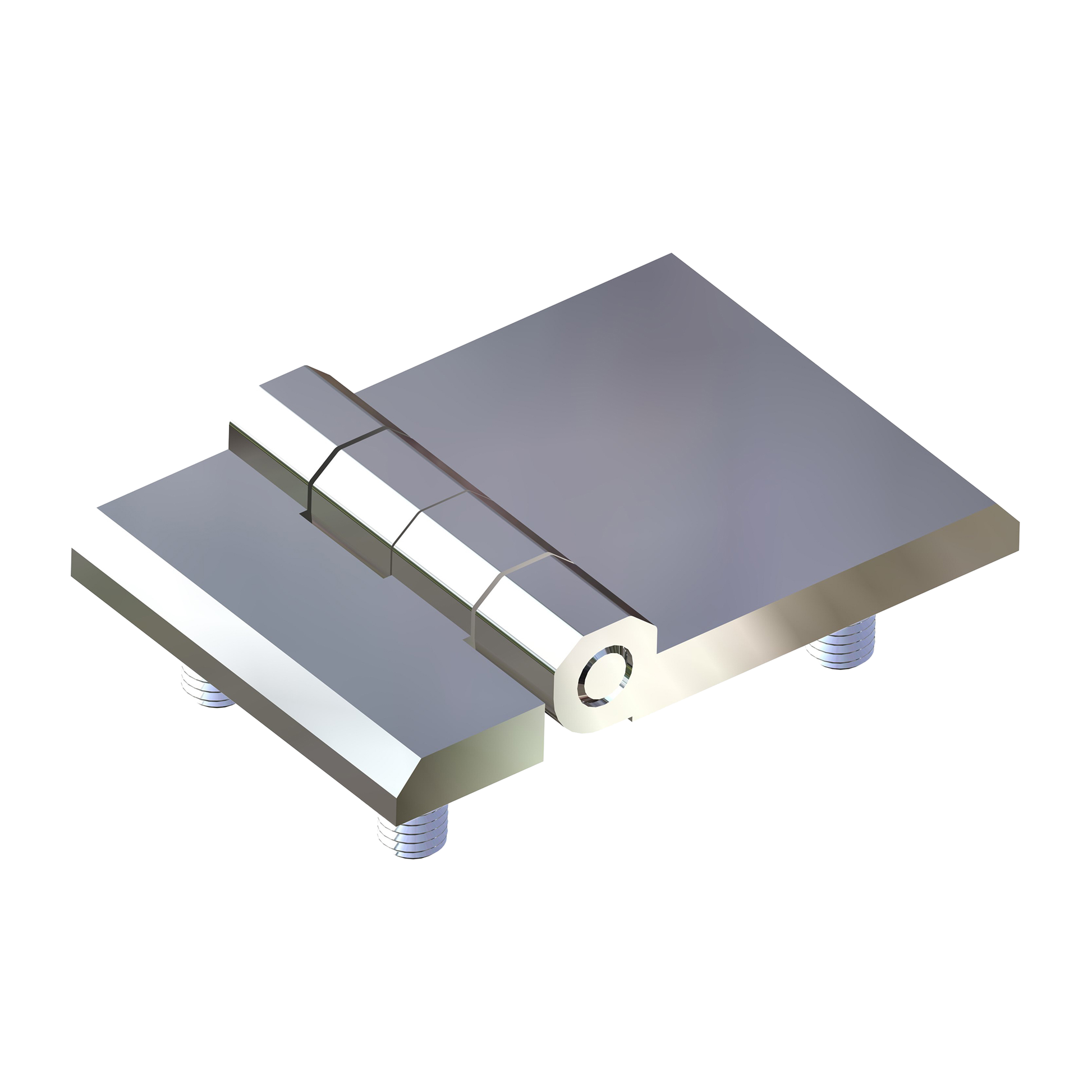

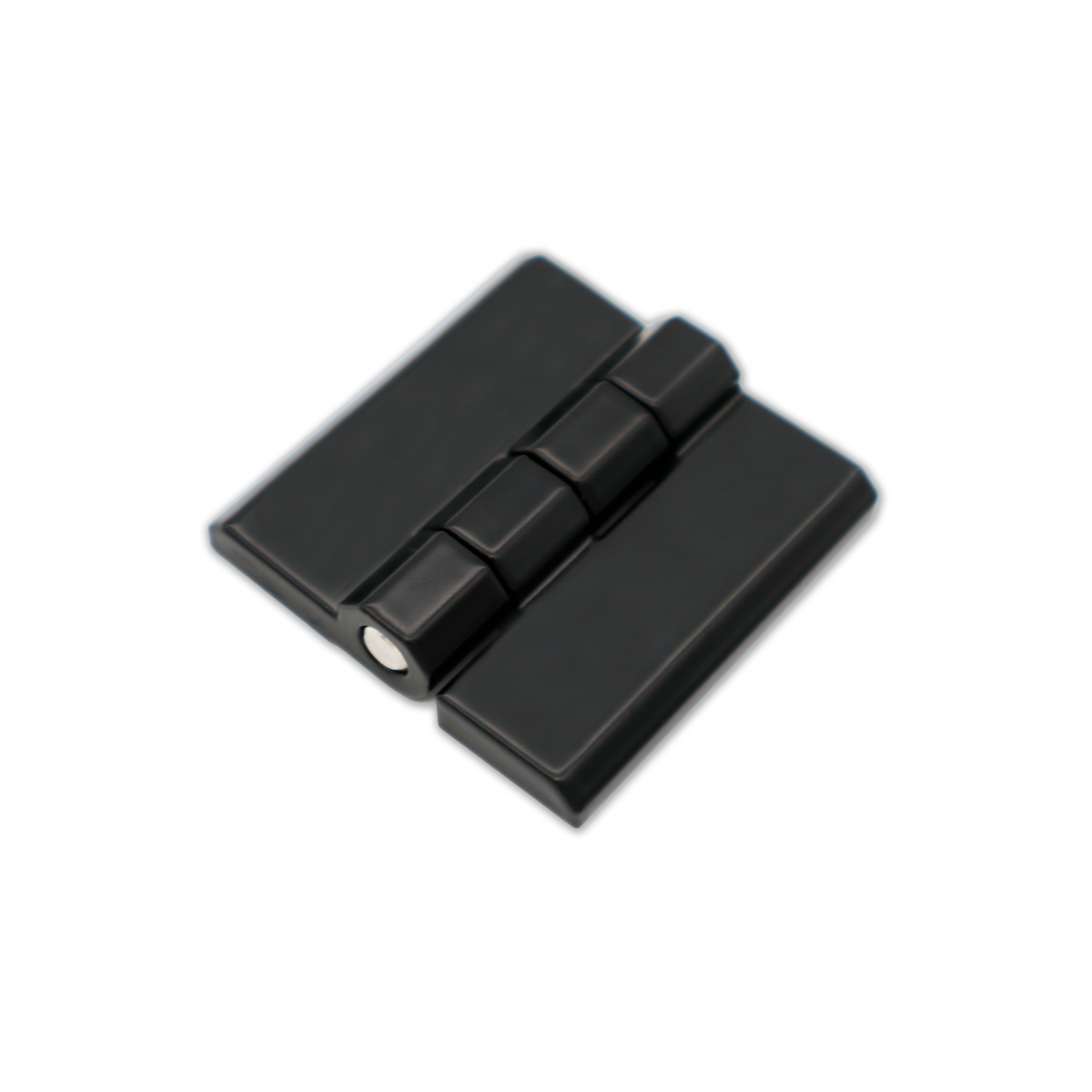

PI5367: 60mm Screw-On Hinge (Zinc, Black & Chrome)

PI5367: 60mm Screw-On Hinge (Zinc, Black & Chrome)

PI5367-01-C

$15.28 AUD
$19.10 AUD $15.28 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)

 Features

  • Industrial butt hinge, screw-on design (SOH)
  • Engineered for use with flush mounted doors
  • Suitable for outdoor applications
  • 270° rotation
  • Mounting:
    • Rear fixing - M8 x 14.5mm studs

Materials & Dimensions

  • Hinge: Zinc, die-cast
  • Pin: Stainless steel 304
  • Finish: Black, EDP coated OR chrome plated
  • Base dimensions: 60mm (W) x ##mm (L) x 14.5mm (H)

Maximum Load Capacity

  • Axial Load: Tested to 5,044N force
  • Radial Load: Tested to 7,192 N force
    • Note: 10N (newtons) is equivilent to 1kg (kilograms) of force/pressure.

Remarks

  • Alternate dimensions and/or fixing styles: Availability on request. (Subject to MOQ's and extended leadtimes) Contact Us.
  • Neoprene gasket seal: Available to suit 60x60mm SOH. - PI5367-03-GASKET
