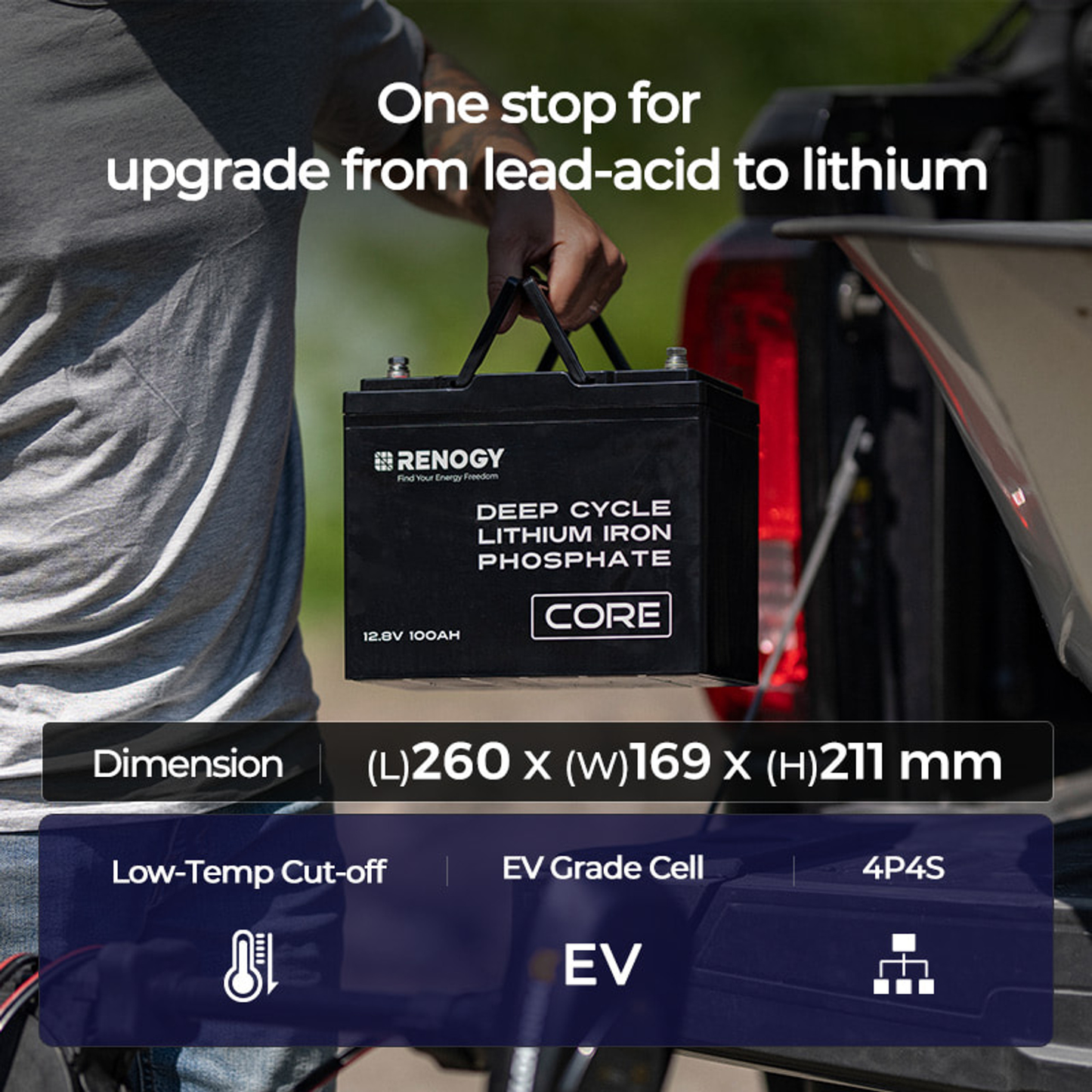

RENOGY CORE 12V 100A Lithium Iron Phosphate Battery

RENOGY CORE 12V 100A Lithium Iron Phosphate Battery

SKU:RBT12100LFP-G1-AU

Regular price $573.00 AUD
Regular price Sale price $573.00 AUD
Sale Out of Stock
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

At Selectlok, we have access to the entire range of RENOGY products, if you are looking for a specific component, or seeking advice for a part needed in your project, that isn't advertised on our website please get in touch with us here, or via the button below & we will be able to help you out with supplying what you require. PLEASE NOTE: RENOGY products are NOT available for Click & Collect or In-Store Pickup.

Meet Renogy 12V 100Ah Core Series Battery, your trusted, one-stop solution for upgrading from Lead to Lithium. Compatible with Renogy's solar panels, solar charge controllers, and inverters, this battery delivers a seamless upgrade experience without compatibility issues.

With a positive capacity tolerance of up to 6%, the Core series batteries provide extra power beyond their rated capacity, ensuring that you're covered during outages, hurricane season, and other emergencies. Connect multiple batteries in series-parallel to keep your system running longer.

Off-grid living can be challenging, but the Renogy 12V 100Ah Core Battery offers a true 100A battery management system (BMS), low-temp cut-off (for charging), and IP65 protection, giving you the confidence to tackle any obstacles.

Whether you are planning an upgrade from old lead-acid batteries or starting to build your first-ever off-grid power system, the Renogy 12V 100Ah Core LiFePO4 Battery is your go-to option to get your project done right in an easier & faster way.

Features:

  • One stop for upgrade from lead-acid to lithium.
  • Get max. 6% more power than rated capacity.
  • Support series (Up to 4S), parallel (Up to 4P), or series-parallel (4S4P) connections.
  • A true 100A BMS with low-temperature cut-off.

Specifications:

  • Battery type: Lithium Iron Phosphate
  •  Rated capacity: 100Ah
  • Nominal voltage: 12.8V
  • Cycle life: 5000 cycles (80% DOD, 80% EOL)
  • Charge voltage: 14.4V
  • Maximum charge current: 100A
  • Maximum discharge current: 100A
  • Charge temperature range: 0°C to 55°C
  • Discharge temperature range: -20°C to 60°C
  • Connection method: Series (up to 4); Parallel (Up to 8); Series & Parallel (4P4S)
  • Recommended terminal torque: 10Nm
  • IP65 protection
  • Housing material: ABS
  • Terminal bolt size: M8

Weight & Dimensions:

  • Size: 260mm x 169mm x 211mm
  • Weight: 10.5kg

View Datasheet

View User Manual

View full details
