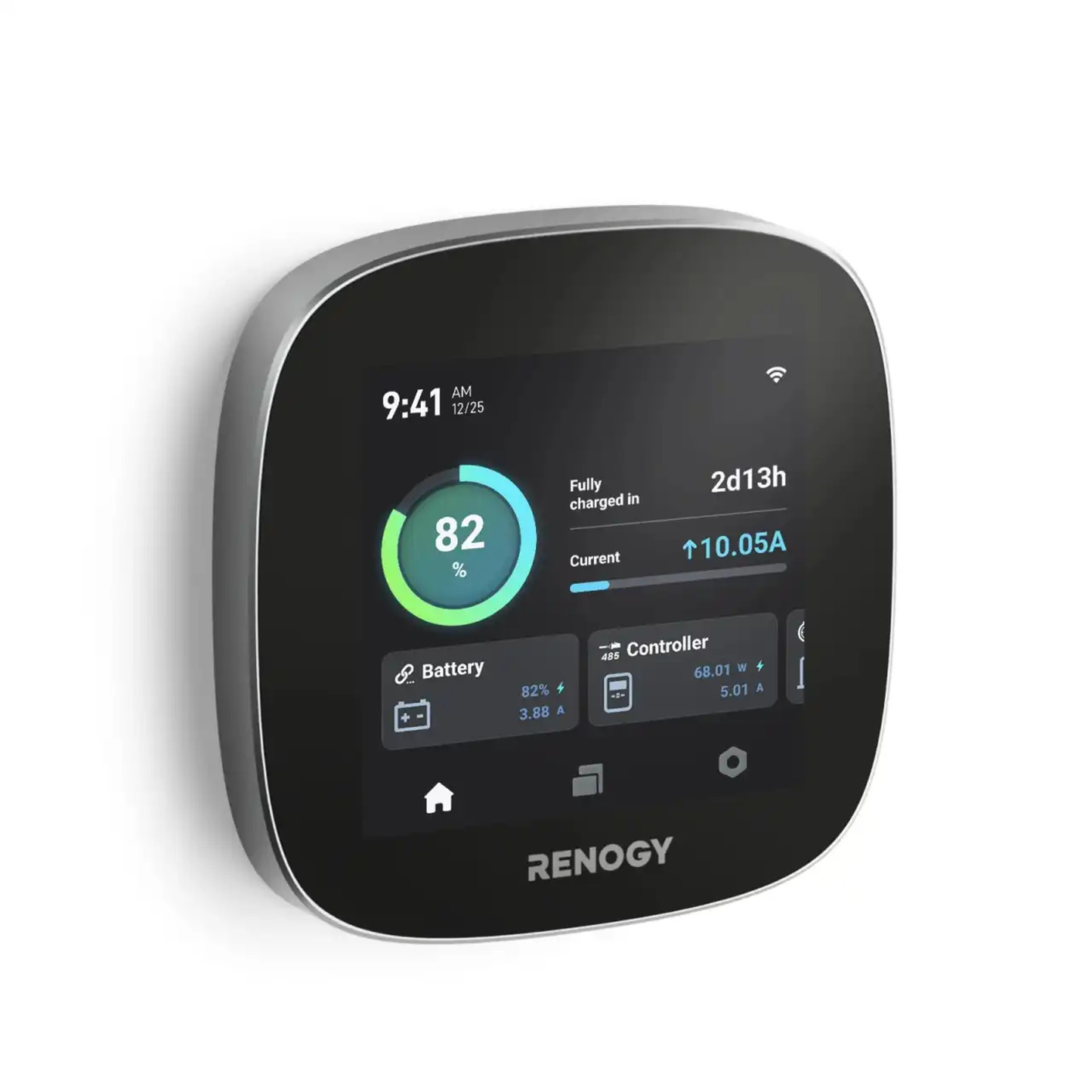

RENOGY ONE Core with CAN- All-In-One Energy Monitoring. (Wi-Fi Version)

RENOGY ONE Core with CAN- All-In-One Energy Monitoring. (Wi-Fi Version)

RSHGWSN-W02W-G2-AU

$290.89 AUD
$290.89 AUD
Sale Out of Stock
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days.

PLEASE NOTE: RENOGY products are NOT available for Click & Collect or In-Store Pickup.

At Selectlok, we have access to the entire range of RENOGY products, if you are looking for a specific component, or seeking advice for a part needed in your project, that isn't advertised on our website please get in touch with us here, or via the button below & we will be able to help you out with supplying what you require. DISCLAIMER: Selectlok strongly recommends consulting a qualified auto-electrician or installer prior to purchasing items and/or installation to ensure the correct product is selected for your application. Selectlok accepts NO liability or responsibility for products that are incorrectly installed or not fit for their intended use.
Proven, Trusted Choice for Customers Worldwide, dedicated to off-gridders, Renogy ONE Core helps save money and reduce your carbon footprint by tracking energy generation and consumption. ONE Core assists you in adjusting your RV's position to achieve optimal stability, ensuring a comfortable and safe experience. Instant and accurate updates about your vehicle's stability on both ONE Core Panel and DC Home App.
Features:
  • Cloud-based energy monitoring worldwide.
  • 24/7 energy analysis on multiple devices.
  • Built-in RV leveling sensor for stability and comfort.
  • Connect smart accessories for home automation.

Specifications:

  • Operating Voltage: 8-60 VDC (5 VDC for USB Type-C)
  • Power Consumption at 12V: Operating, WiFi On, 100% illumination: 3.2W Operating, WiFi On, 50% illumination: 2.4 W Operating, WiFi On, 0% illumination: 1.9W Off, logger still active: 1.5 W
  • Communication: Wi-Fi (IEEE 802.11b/g/n 2.4 GHz) Bluetooth LE and Bluetooth Mesh Zigbee 3.0 (IEEE 802.15.4) RS-485
  • Touch Screen: 4 inches (480 x 480p)
  • Leveling Range and Accuracy: ±89°, 0.1°
  • Model: RSHGWSN-W02W-G1
  • Operating Temperature: -20℃ to 70℃
  • Operating Humidity: 0% to 95% RH
  • Operating Altitude: Less than 5000m above sea level
  • Installation: Flush mount or place on a table
  • Certification: CE, FCC, RoHS, TSCA, BQB, IC-ID

Weight & Dimensions:

  • Size: 106mm x 106mm x 26.6mm
  • Weight: 128g
