RENOGY REGO IP67 DC-DC with MPPT Battery Charger

RENOGY REGO IP67 DC-DC with MPPT Battery Charger

RBC2125DS-21W-G2-AU

$515.15 AUD
$515.15 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days.

PLEASE NOTE: RENOGY products are NOT available for Click & Collect or In-Store Pickup.

At Selectlok, we have access to the entire range of RENOGY products, if you are looking for a specific component, or seeking advice for a part needed in your project, that isn't advertised on our website please get in touch with us here, or via the button below & we will be able to help you out with supplying what you require. DISCLAIMER: Selectlok strongly recommends consulting a qualified auto-electrician or installer prior to purchasing items and/or installation to ensure the correct product is selected for your application. Selectlok accepts NO liability or responsibility for products that are incorrectly installed or not fit for their intended use.

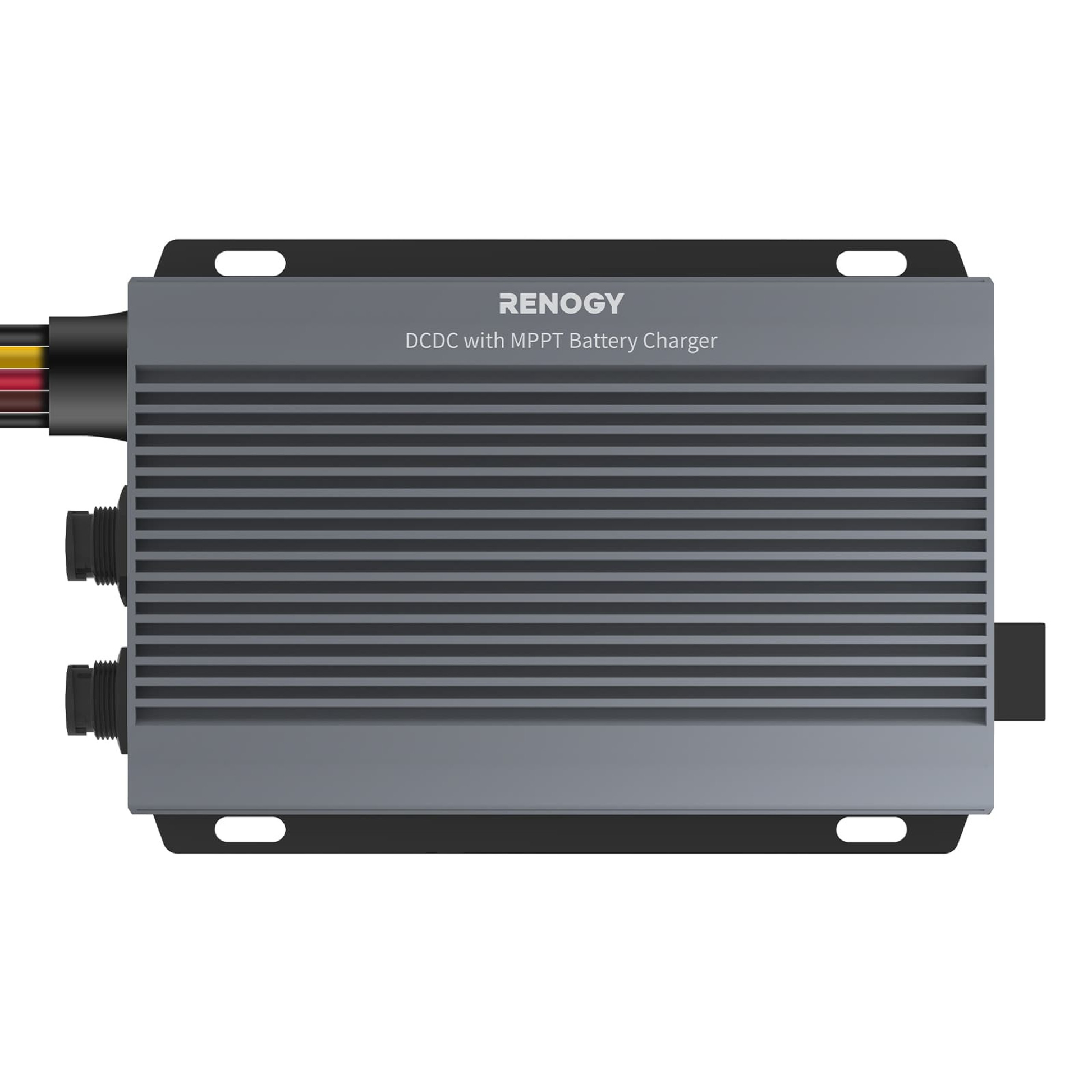

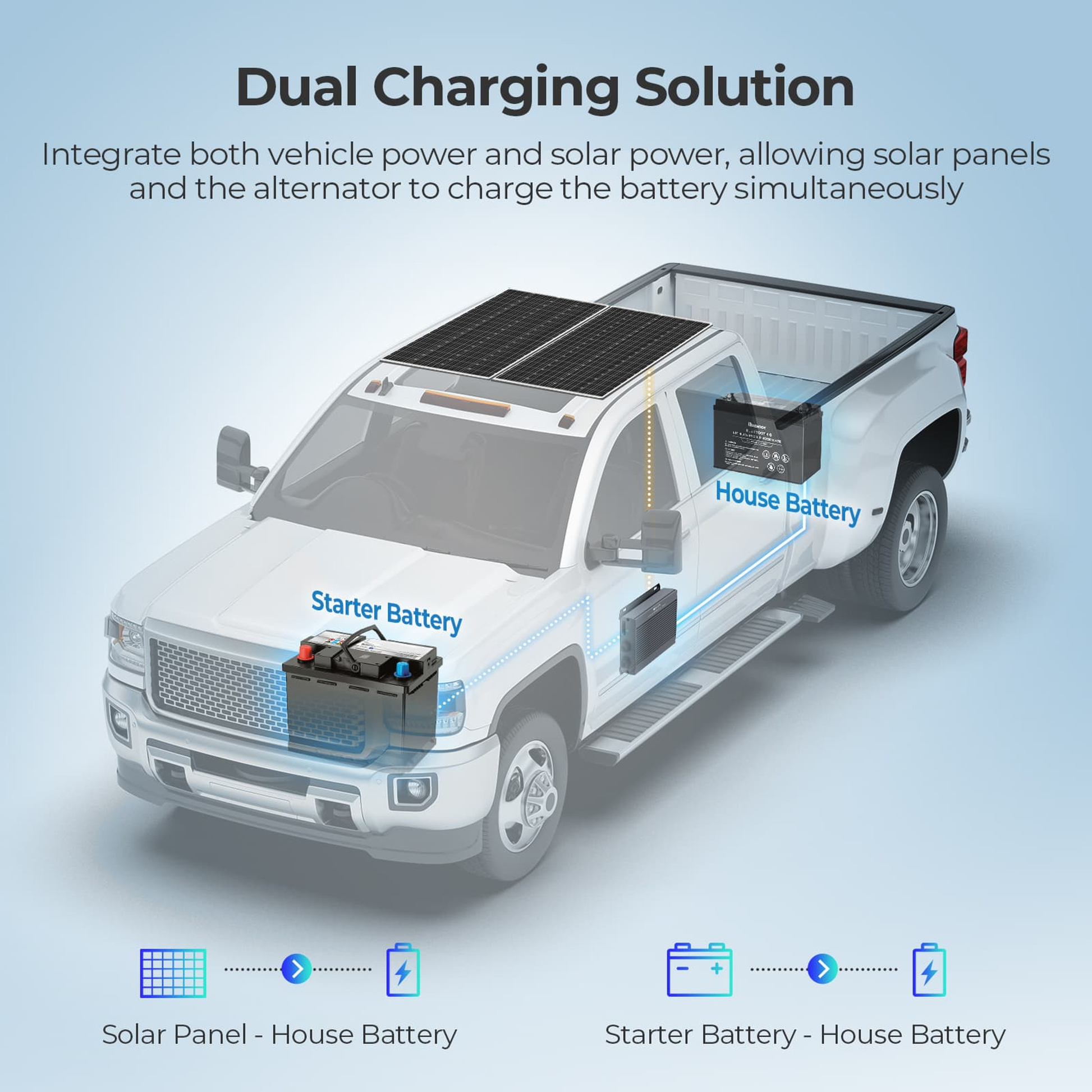

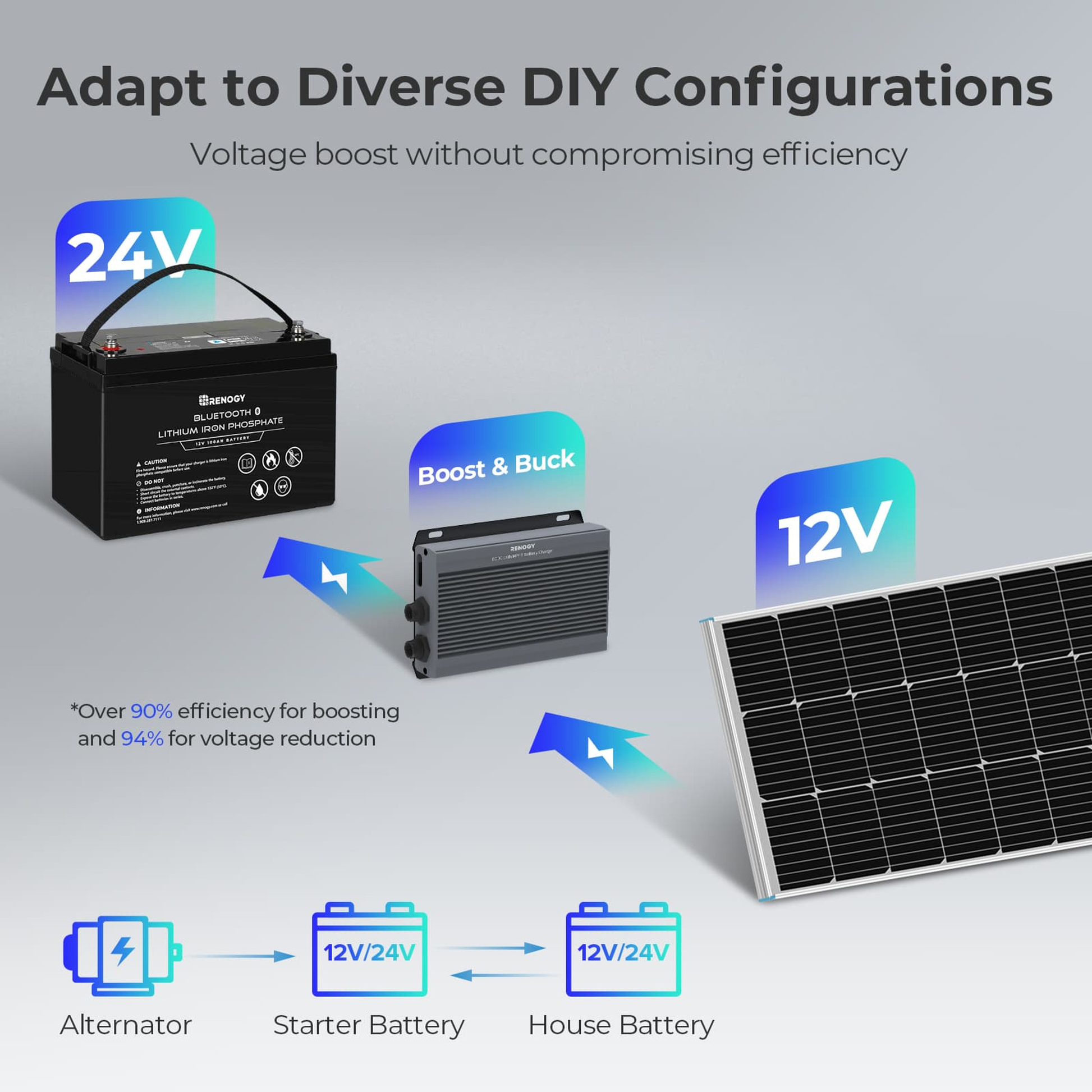

The Renogy Rego IP67 DC-DC with MPPT battery charger is a dual charging solution with 12V/24V boost and buck logic. Compact & lightweight with IP67 waterproof rating, auto-switching charging mode while prioritizing green power, certified CE, FCC, RoHS with comprehensive test reports. Features Bluetooth Energy Monitoring with wired CAN communication.

Features:

  • System Voltage: 12V/24V - 12V/24V
  • Output Voltage: 9-32 VDC
  • Solar Input Voltage: 50 VDC
  • Alternator Input: 9-32 VDC
  • Output Power: 720W
  • Maximum Output Current Rating: 50A @ 12V；25A @ 24V
  • Battery Types: AGM/SLD, GEL, FLD, LI, USER
  • Input Fuse Rating: 75A-100A
  • Output Fuse Rating: 75A-100A
  • Charging Efficiency: 0.97
  • Idle Power Consumption: ＜100mA
  • Temperature Compensation: -3mV / ℃ / 2V (non-lithium);0mV / ℃ / 2V; no compensation (Lithium)

Specifications:

  • class="custom-field-group-value" id="vl-Model">RBC2125DS
  • Terminal Range: 8AWG-4AWG
  • Communication Protocol: -40℃ to 80℃
  • Humidity: Modbus; RV-C
  • Operating Temperature Range: -35℃ to 80℃
  • Storage Temperature Range: -40℃ to 80℃
  • Certification: CE;RoHS;FCC Part 15 class B
  • Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent Protection

Weight & Dimensions:

  • Size: 178.2mm x 121.5mm x 37.5mm
  • Weight: 1.86kg
