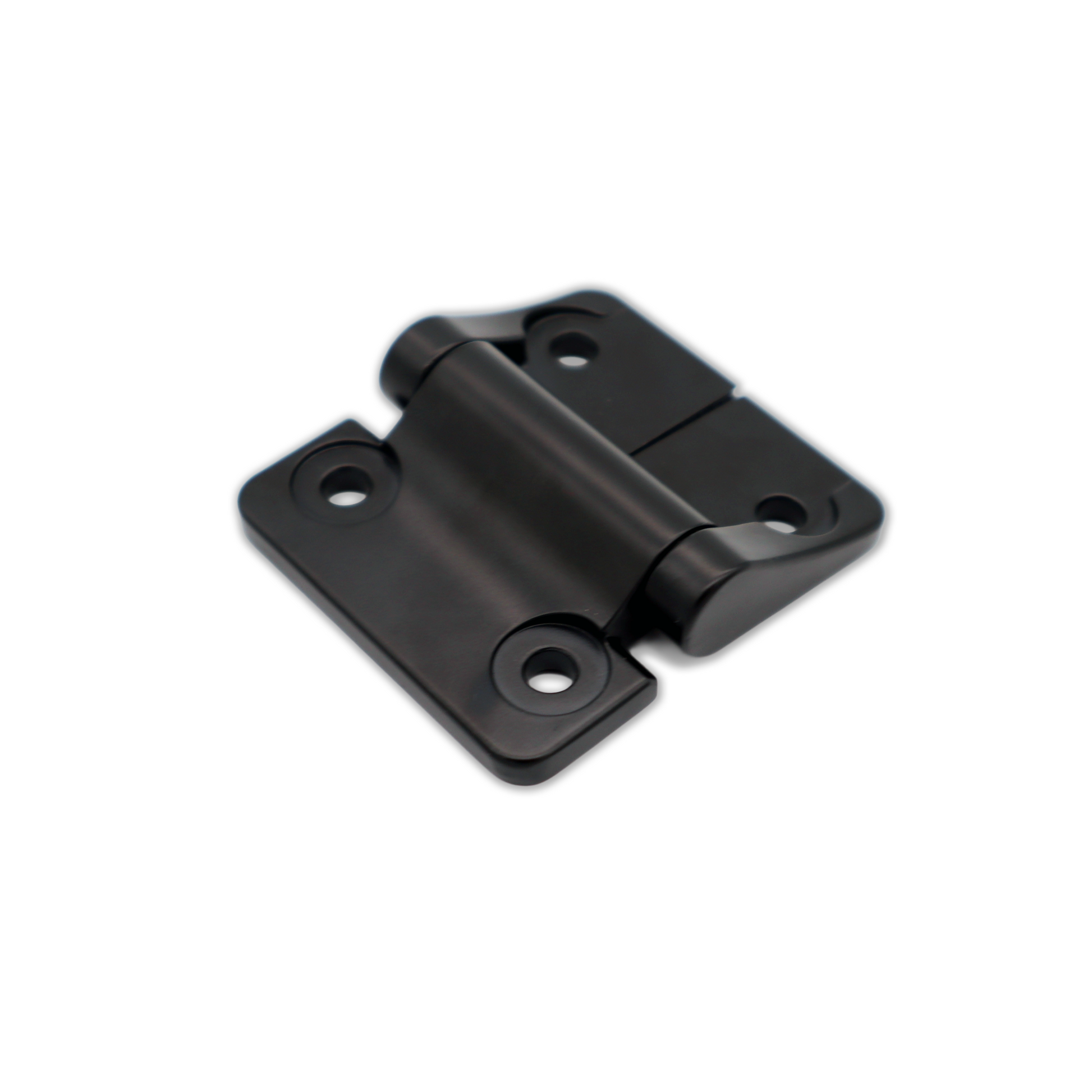

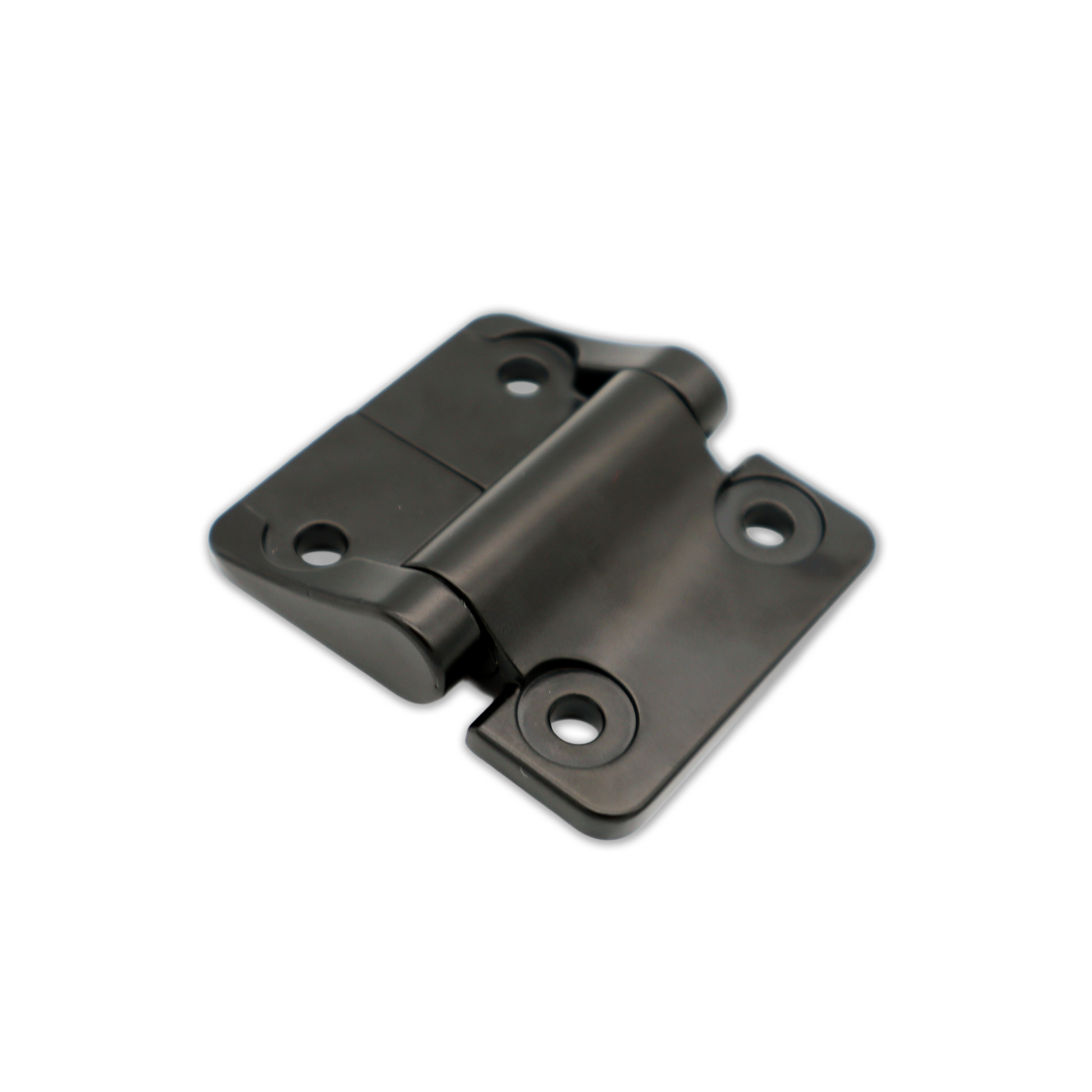

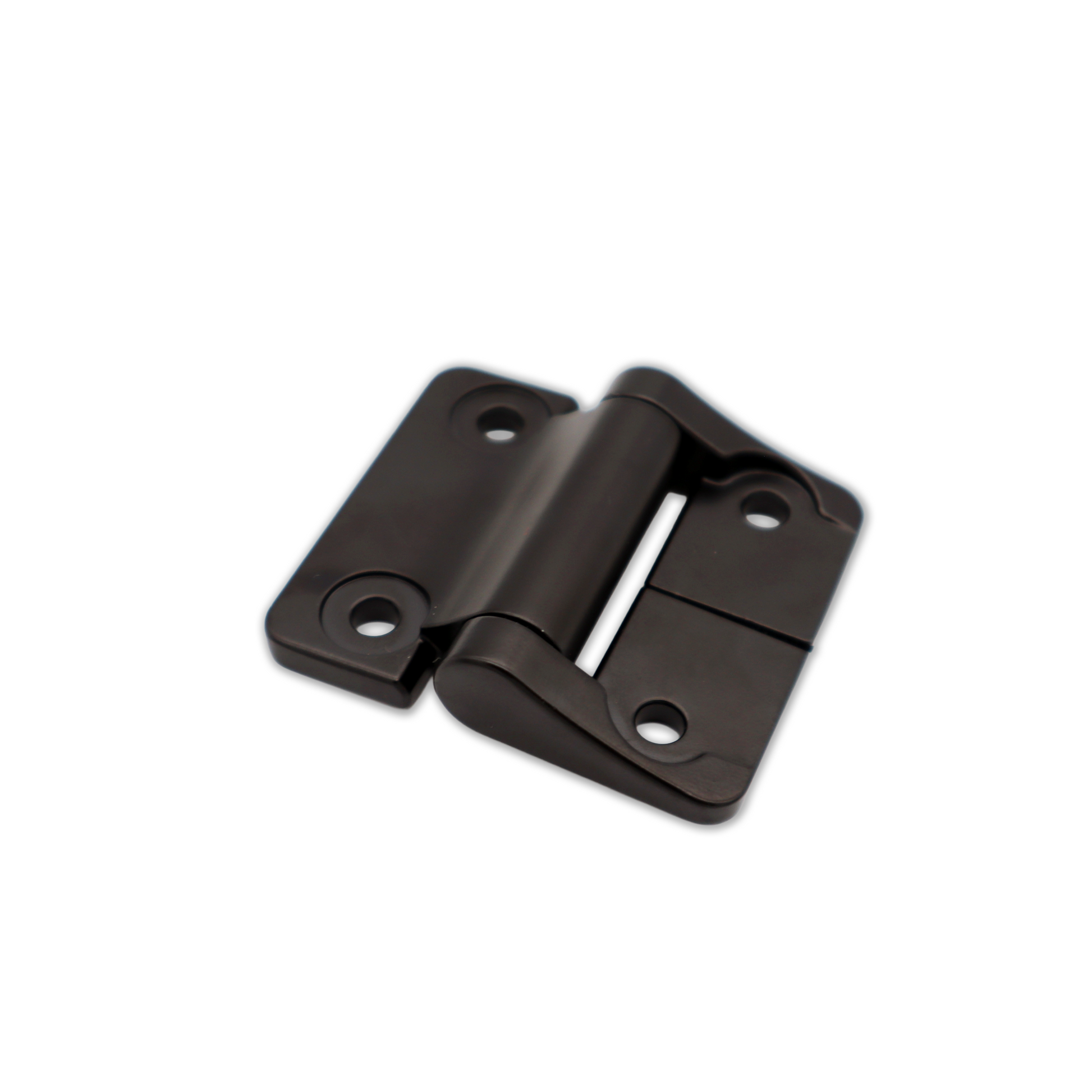

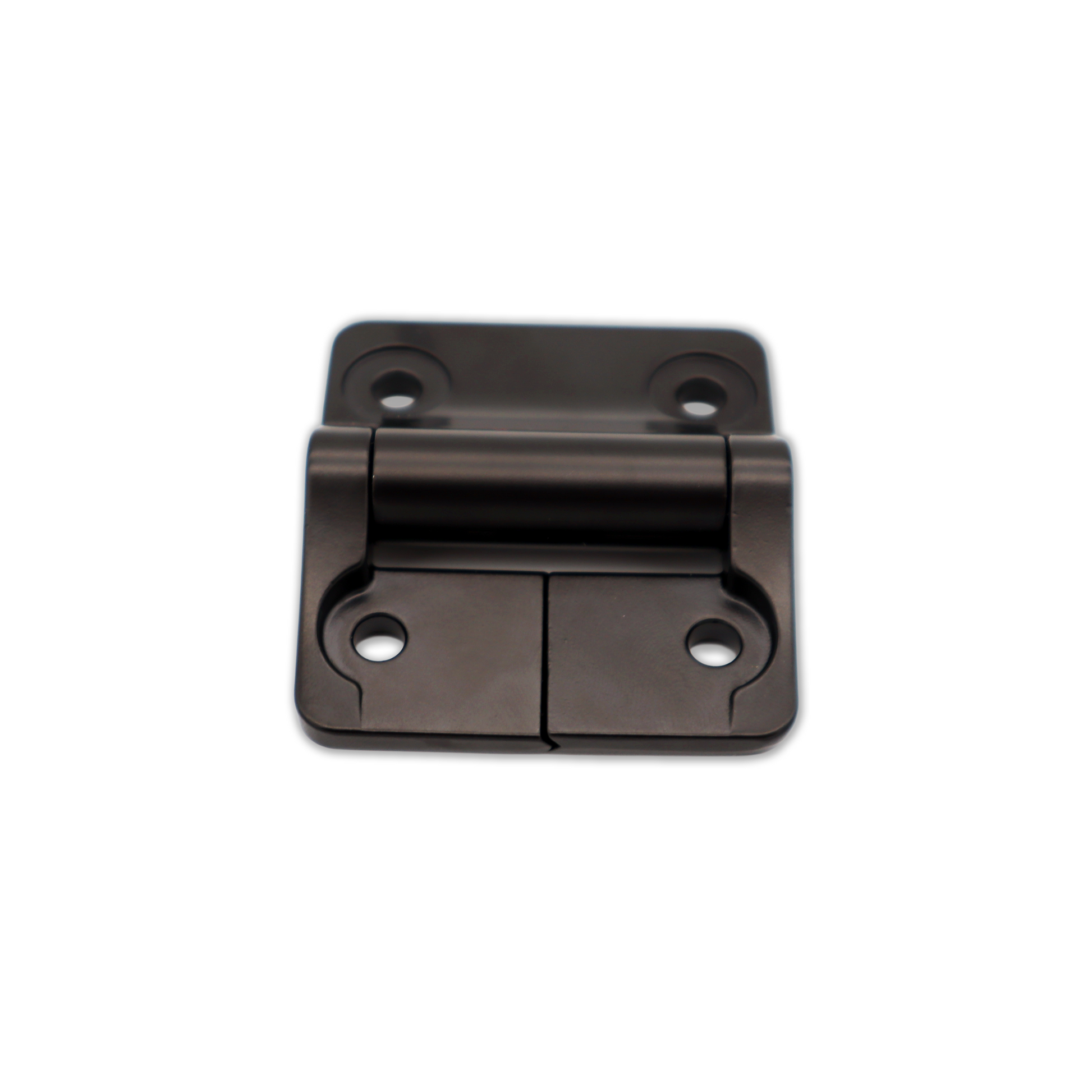

Rotor-Stator: 40x40 Torque Butt-Hinge
Rotor-Stator: 40x40 Torque Butt-Hinge
SKU:TH161-4040-1N-1
Regular price
$17.45 AUD
Regular price
$21.81 AUD
Sale price
$17.45 AUD
Taxes included.
Shipping calculated at checkout.
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)
Quantity
Couldn't load pickup availability
Features
- Range of motion (ROM): Full 180° rotation
-
Rotary-static design (rotor-stator):
- Rotor - Rotating (moving) "hinge"/leaf component (door)
- Stator - Stationary (non-moving) "lid"/leaf component (enclosure)
- Torque specifications: 1 Nm
- Static torque: Within ± 20%
- Torque function: Symmetric
- Torque adjustment: Non-adjustable
- Life-span: Over 25,000x cycles
- Easy installation: Front fixing, M5 bolts (not supplied)
- Application: Suits both left hand and right hand install orientations
Dimensions, Material & Finish
- Hinge body: Zinc alloy, die-cast
- Pin: Mild steel, nickel-plated (stainless steel option available - see remarks)
- Finish: Black, electrophoresis (plastic spray)
- Base dimensions: 40mm (L) x 40mm (W) x 3mm (T)
- Mounting holes: Ø4.5mm (dia) x 4 (qty)
Remarks
- Alternative sizes (mm), torque specifications (Nm), materials and/or finishes may be available upon request (subject to additional costs, MOQs and lead times)
