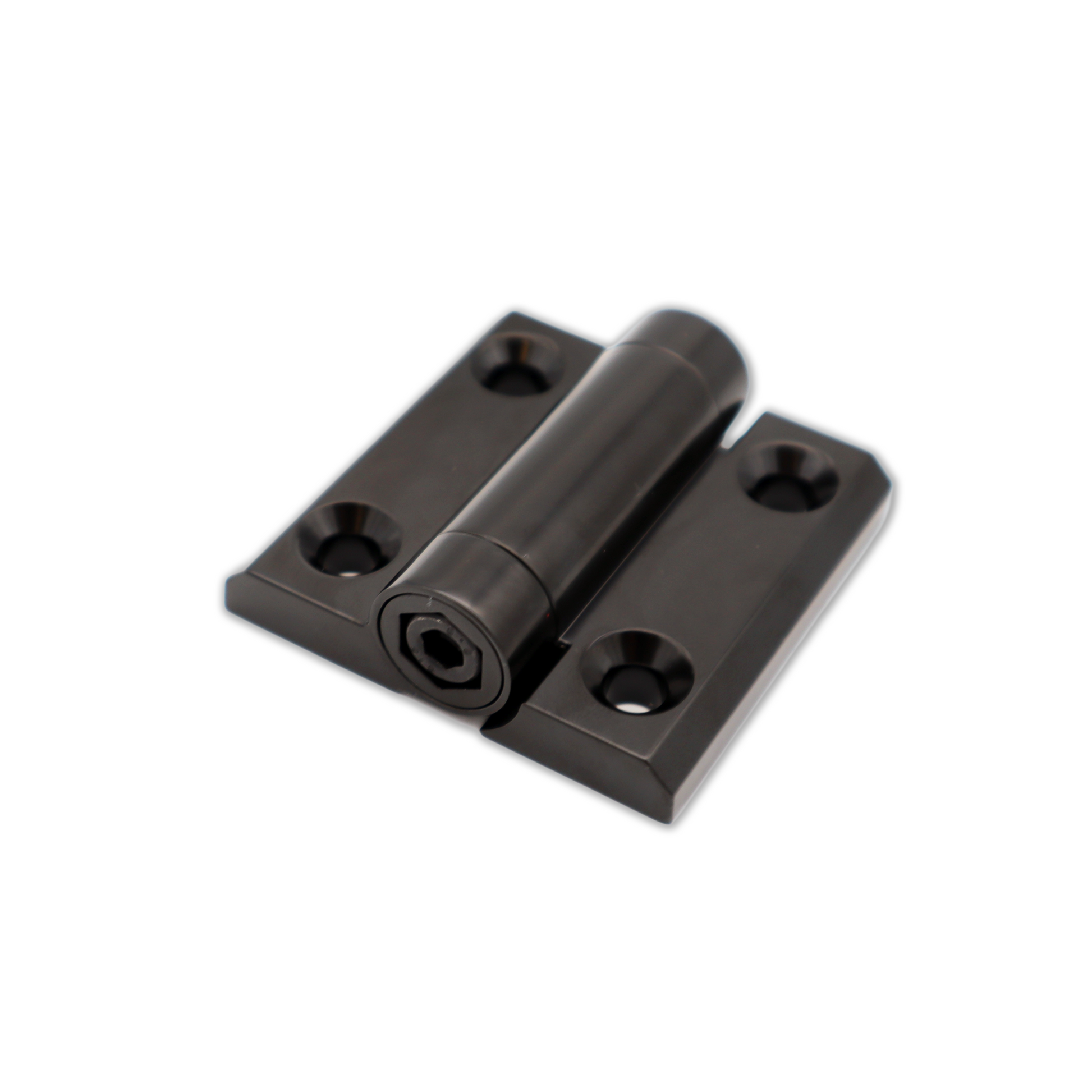

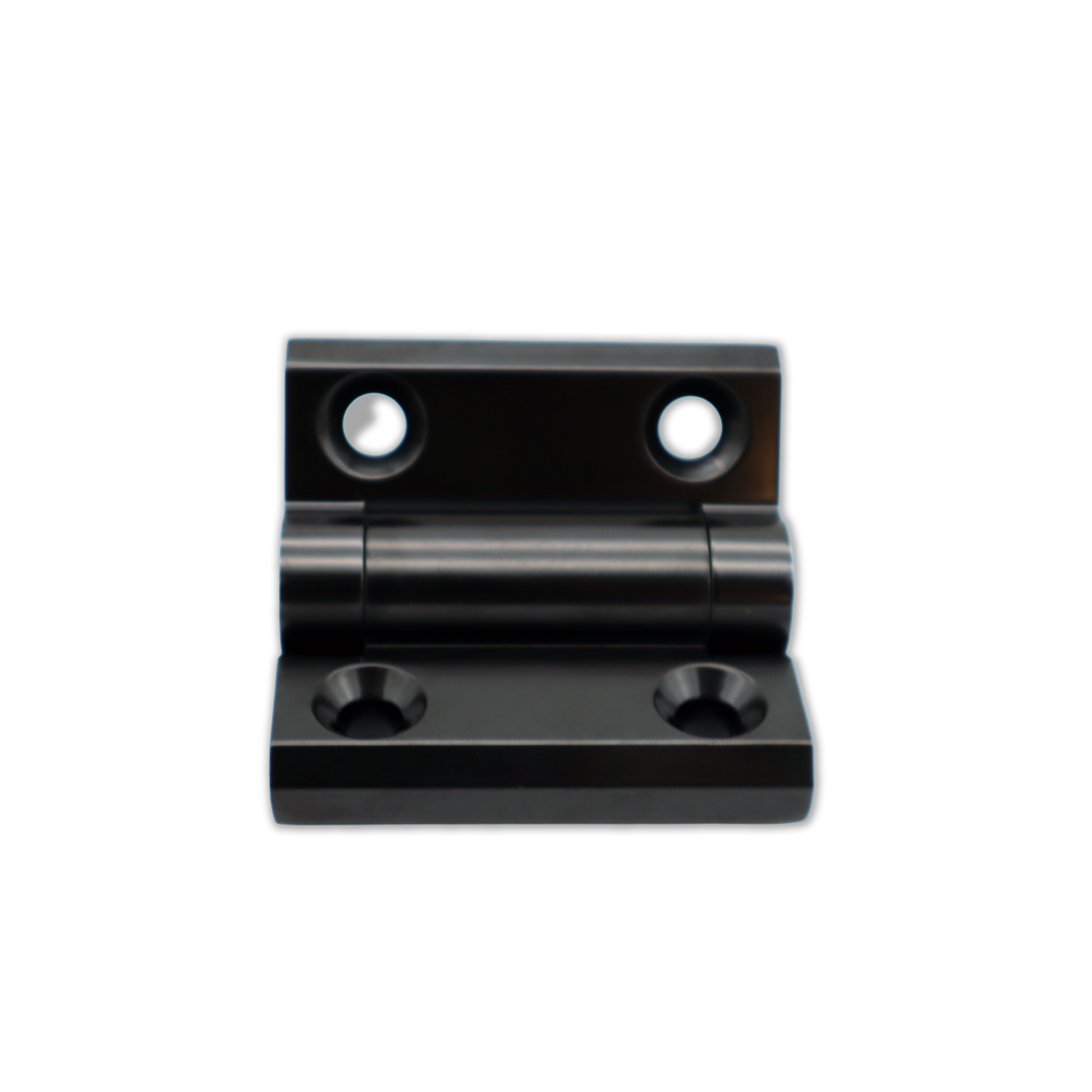

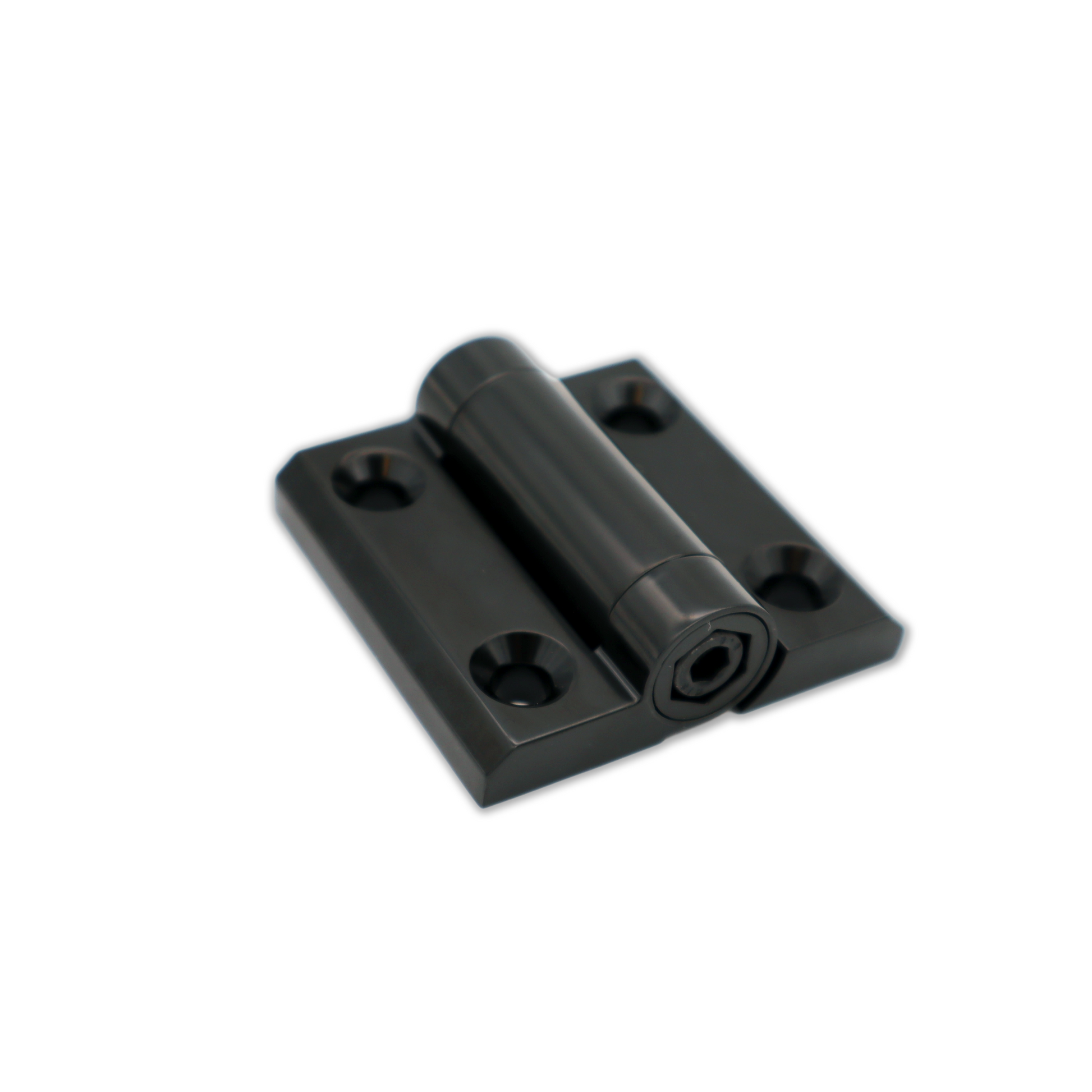

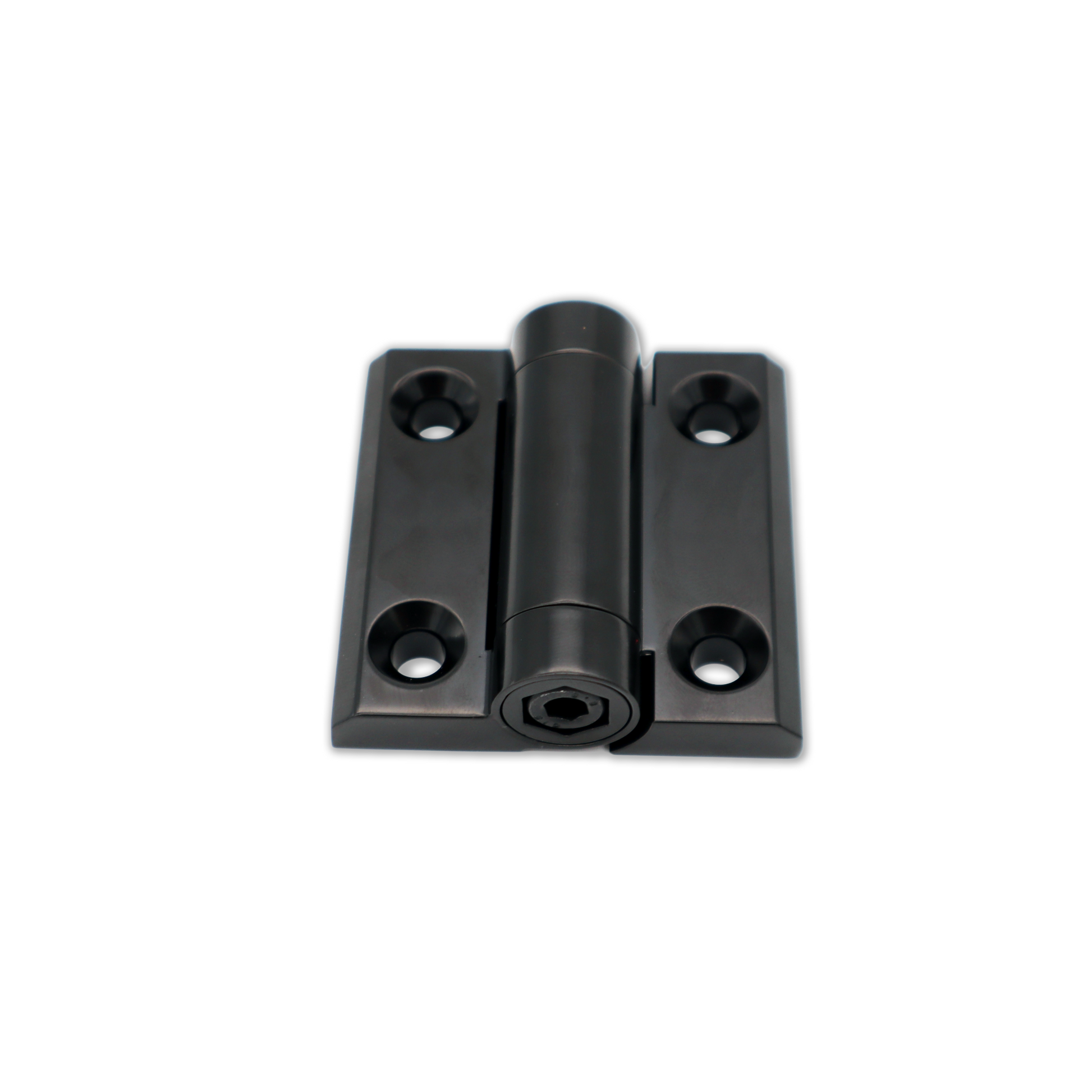

Rotor-Stator: 60x60 Adjustable Torque Butt-Hinge

Rotor-Stator: 60x60 Adjustable Torque Butt-Hinge

TH200-1

$21.81 AUD
$21.81 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)

Features

  • Range of motion (ROM): Full 180° rotation
    • Free swing - The operational load is borne solely by the torque (friction-fit) mechanism throughout the hinge’s full 180° range of motion
    • Locating Detents - Hinge variants incorporating a self-locating mechanism (internal positioning detents) provide auxiliary holding points, reducing reliance on the torque mechanism alone to support the operational load and maintain the positional stability of the hinge. (These locating detents are designed with pre-set, symmetrical positional angles of 60°, 120° and 180°)
  • Rotary-static design (rotor-stator):
    • Rotor - Rotating (moving) "hinge"/leaf component (door)
    • Stator - Stationary (non-moving) "lid"/leaf component (enclosure)
  • Torque specifications: Adjustable torque range of approx. ≤ 5 Nm (less than or equivalent to 5 Nm)
  • Torque function: Symmetric
  • Torque adjustment: Adjustable (via a 6mm Hex/Allen key driver)
  • Easy installation: Front fixing, M6 bolts (not supplied)
  • Application: Suits both left hand and right hand install orientations

Dimensions, Material & Finish

  • Hinge body: Zinc alloy, die-cast
  • Dynamic pin: Stainless steel
  • Finish: Black, electrophoresis (plastic spray
  • Base dimensions: 60mm (L) x 60mm (W) x 9mm (T)
  • Mounting holes: Ø6.5mm (dia) x 4 (qty)

Remarks

  • Alternative sizes (mm), torque specifications (Nm), materials and/or finishes may be available upon request (subject to additional costs, MOQs and lead times)
