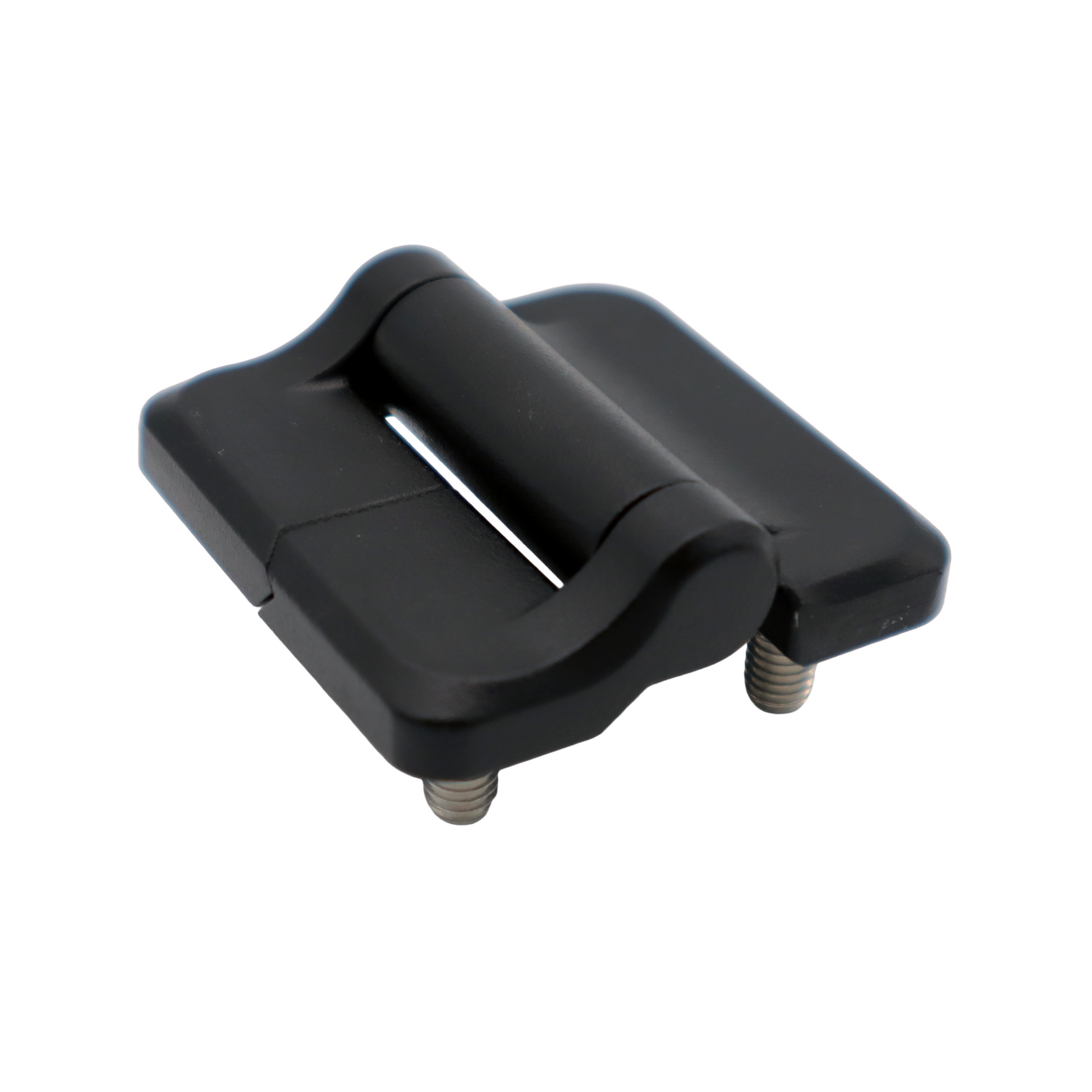

Rotor-Stator: 60x60 Torque Butt-Hinge (Rear Fixing)
Rotor-Stator: 60x60 Torque Butt-Hinge (Rear Fixing)
SKU:TH161-6060-5N3N-2
Regular price
$66.04 AUD
Regular price
Sale price
$66.04 AUD
Taxes included.
Shipping calculated at checkout.
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)
Quantity
Couldn't load pickup availability
Features
- Range of motion (ROM): Full 180° rotation
-
Rotary-static design (rotor-stator):
- Rotor - Rotating (moving) "hinge"/leaf component (door)
- Stator - Stationary (non-moving) "lid"/leaf component (enclosure)
-
Torque specifications:
- Forward - 5 Nm open
- Reverse - 3 Nm close
- Static torque: Within ± 20%
- Torque function: Aymmetric
- Torque adjustment: Non-adjustable
- Life-span: Over 25,000x cycles
- Easy installation: Rear fixing, M8 studs
- Application: Suits both left hand and right hand install orientations
Dimensions, Material & Finish
- Hinge body: Zinc alloy, die-cast
- Pin: Mild steel, nickel-plated
- Finish: Black, electrophoresis (plastic spray)
- Base dimensions: 60mm (L) x 60mm (W)
- Mounting holes: M8 (dia) x 14mm (L) x 4 (qty)
Remarks
- Alternative sizes (mm), torque specifications (Nm), materials and/or finishes may be available upon request (subject to additional costs, MOQs and lead times)
