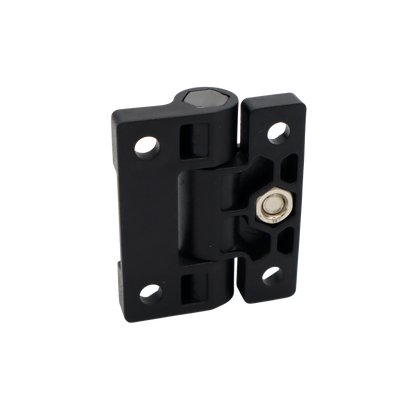

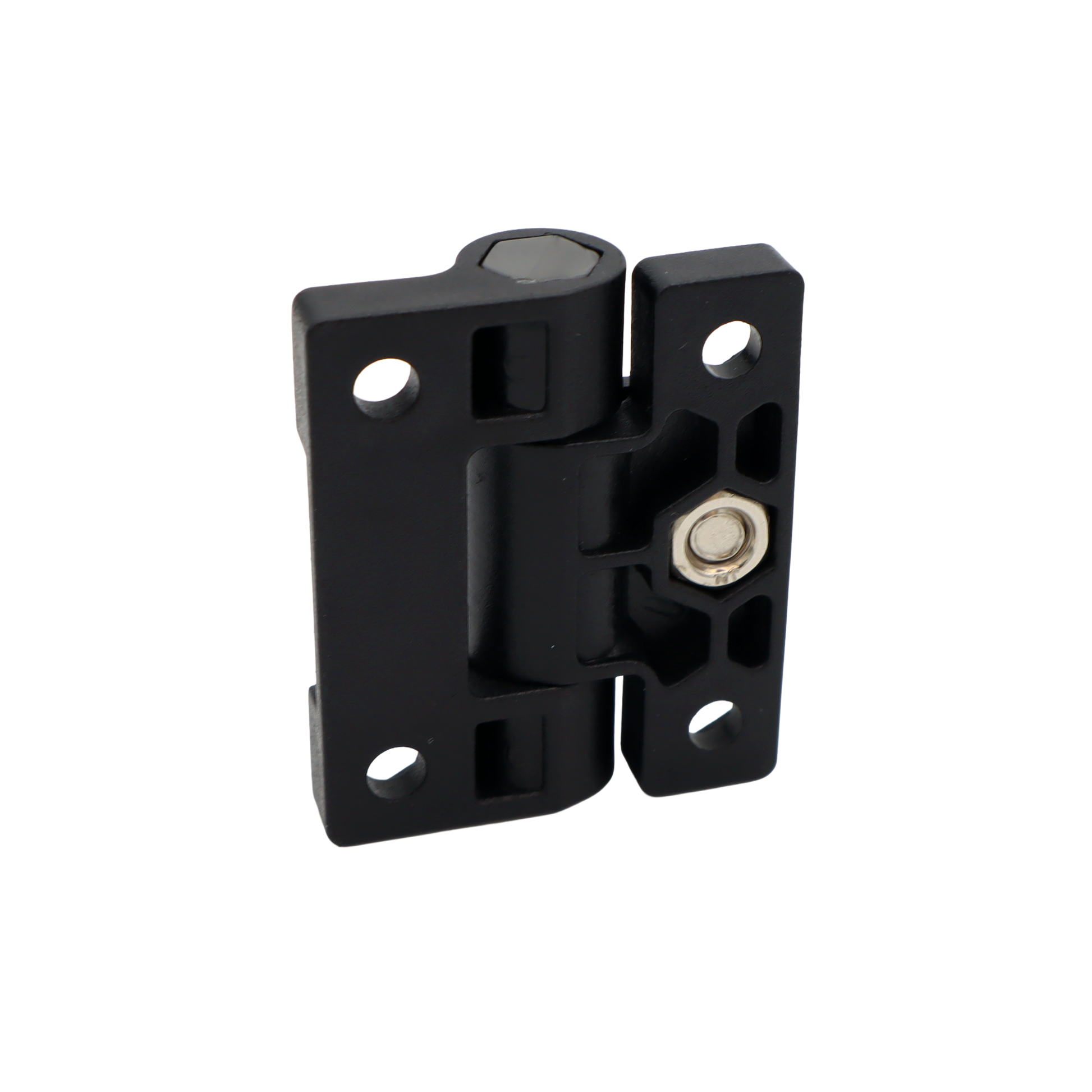

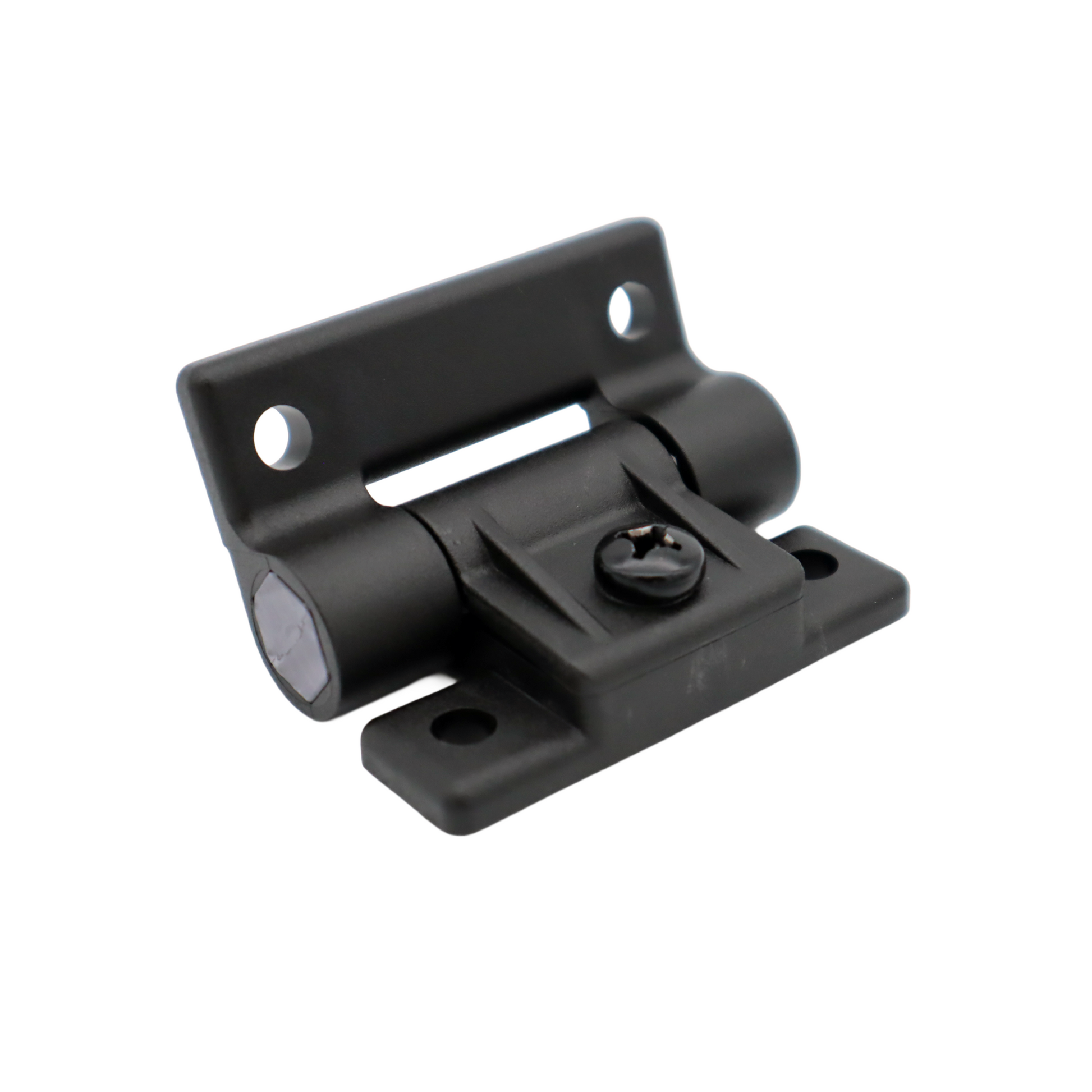

Rotor-Stator: Position Control Torque Butt-Hinge

SKU:TH2112-1

$18.04 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)

Torque position control hinge
Range of motion (ROM): Full 270° rotation
- Free swing - The operational load is borne solely by the torque (friction-fit) mechanism throughout the hinge’s full 270° range of motion
Rotary-static design (rotor-stator):
- Rotor - Rotating (moving) "hinge"/leaf component (door)
- Stator - Stationary (non-moving) "lid"/leaf component (enclosure)
Torque specifications: Adjustable torque range ≤ 5 Nm (less than or equivalent to 5 Nm - approx.)
Torque function: Symmetric

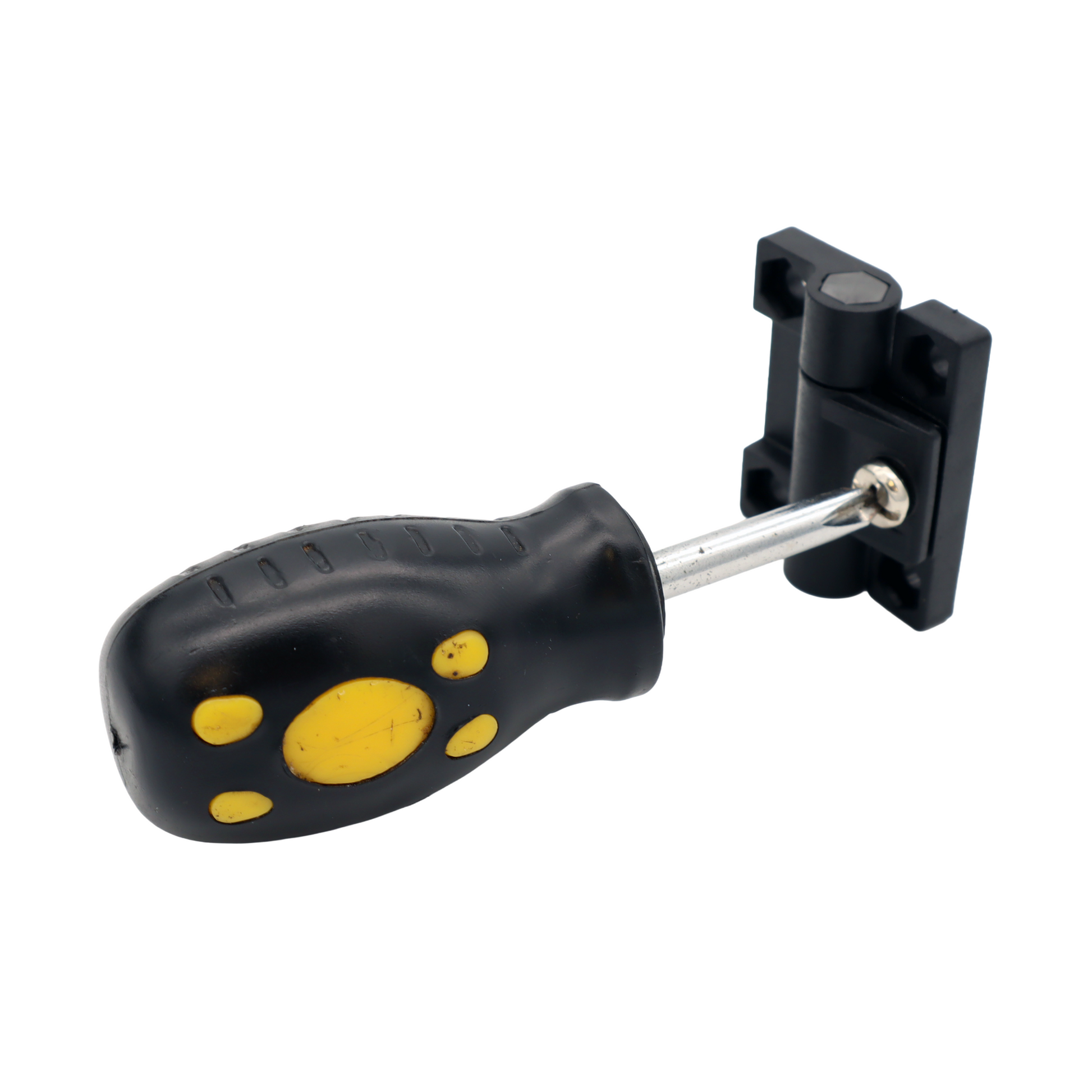

Torque adjustment: Adjustable, friction-fit (via a Phillips head screwdriver)
Operating temperature: -5℃ to 60℃
Easy installation: Front fixing holes
Application: Suits both left hand and right hand install orientations

Alternative sizes (mm), torque specifications (Nm), materials and/or finishes may be available upon request (subject to additional costs, MOQs and lead times)
