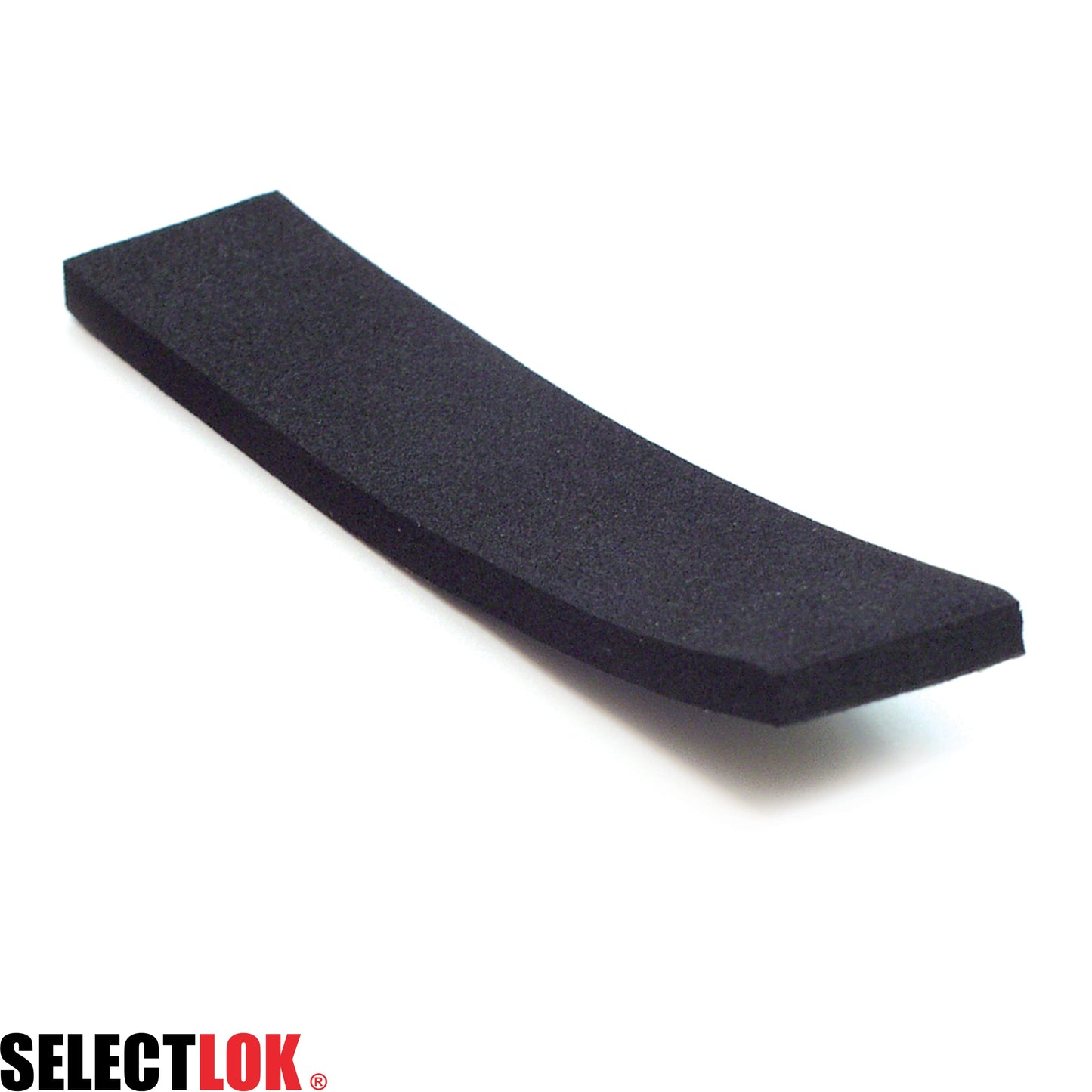

Rubber Closed Cell PVC Nitrile Foam

SOLD AS COMPLETE ROLLS ONLY

PRICE SHOWN IS PER/MTR RATE

FEATURES:

• Foam compresses easily, is highly conformable and recovers quickly
• Filmic interliner prevents stretch during application
• Robust foam is tear and abrasion resistant
• Electrical non-conductive – can be used as an electrolysis barrier
• Good resistance to high temperature and weathering
• Good thermal insulation properties
• Available in die-cut pads and gaskets

USES:

• Sealing electrical enclosures and switch cabinets
• Sealing industrial access doors and hatches
• Sealing hatches on boats
• Sealing externally mounted air conditioning equipment
• Pipe-wrap insulation of hot and cold pipes

MATERIALS:

• Backing material = Closed Cell PVC / Nitrile Foam
• Adhesive type = Acrylic
• Adhesive power = 6N/25mm
• Foam density = 91kg/㎥
• Elongation = 100%
• Tensile strength = 73.5N/25mm
• Water tightness = 100% at < 10% compression
• Water absorption = 6% (by weight)
• Thermal conductivity = 0.27 btu
• Temperature resistance -10℃ to +80℃
• Flammability = Flame retardant and self-extinguishing
• Ozone resistance = Good
• UV resistance = Good
• Chemical & Solvent resistance = Good
• Petrol & Oil resistance = Good
• Tear resistance = Good
• Tape thickness = 3mm, 6mm, 9mm, 12mm, 15mm or 25mm
• Tape widths = 6mm to 1220mm
• Colour = Black
