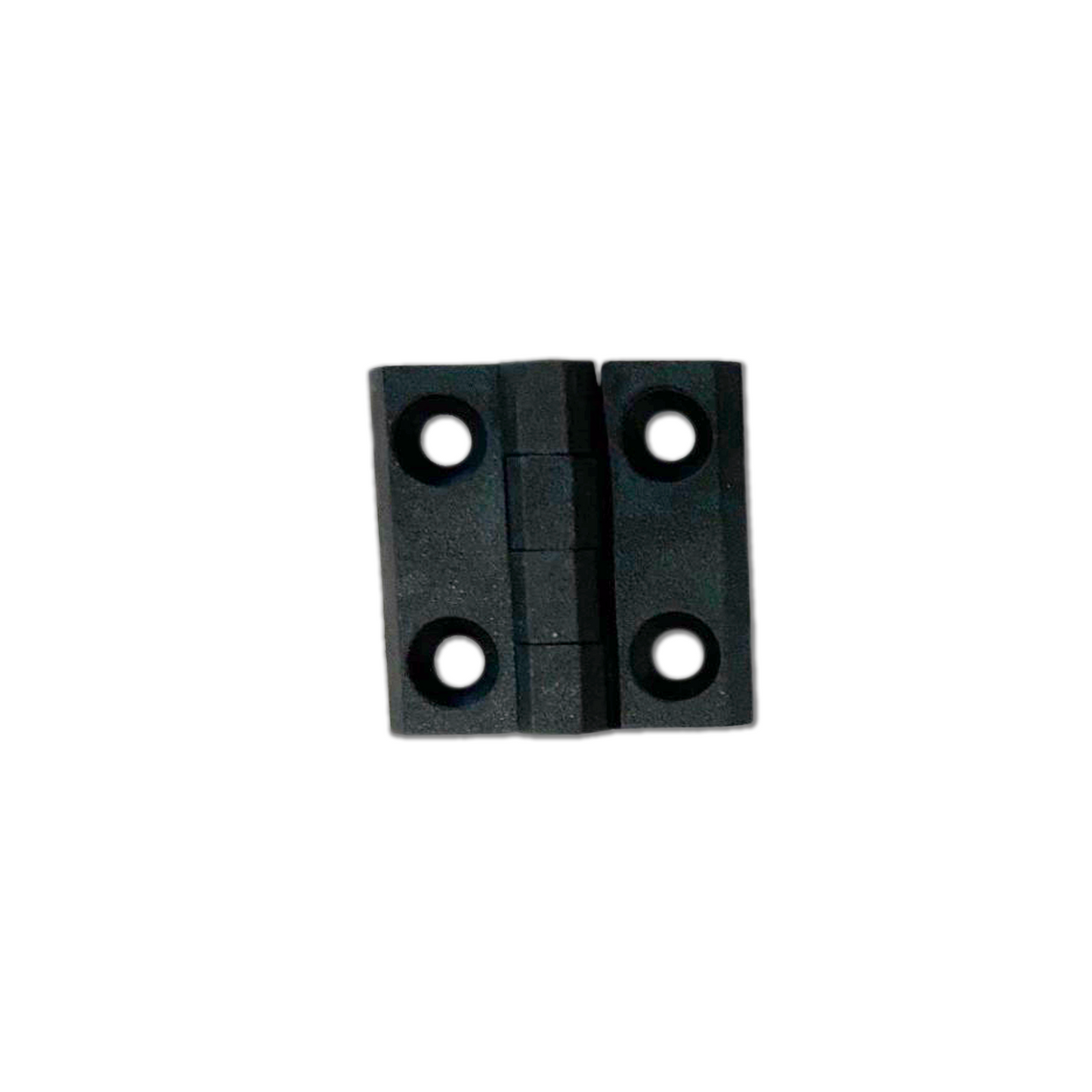

M199 Series | 50x50 Screw-On Hinge (Polyamide, Black)
M199 Series | 50x50 Screw-On Hinge (Polyamide, Black)SKU:M199-2-0-3
Regular price
$4.80 AUD
Regular price
Sale price
$4.80 AUD
Unit price
per
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)
Couldn't load pickup availability
Features
- Industrial butt hinge, screw-on design (SOH)
- Engineered for use with flush mounted doors
- Suitable for outdoor applications
- 270° rotation
-
Mounting:
-
Front fixing - Ø 6.6mm countersunk holes
-
Front fixing - Ø 6.6mm countersunk holes
Materials & Dimensions
- Hinge: PA (Polyamide)
- Pin: Stainless steel 304
- Finish: Black
- Base dimensions: 50mm (L) x 50mm (W) x 15mm (H)
Alternate dimensions and/or fixing styles: Availability on request. (Subject to MOQ's and extended leadtimes) Contact Us.
View Our Technical
