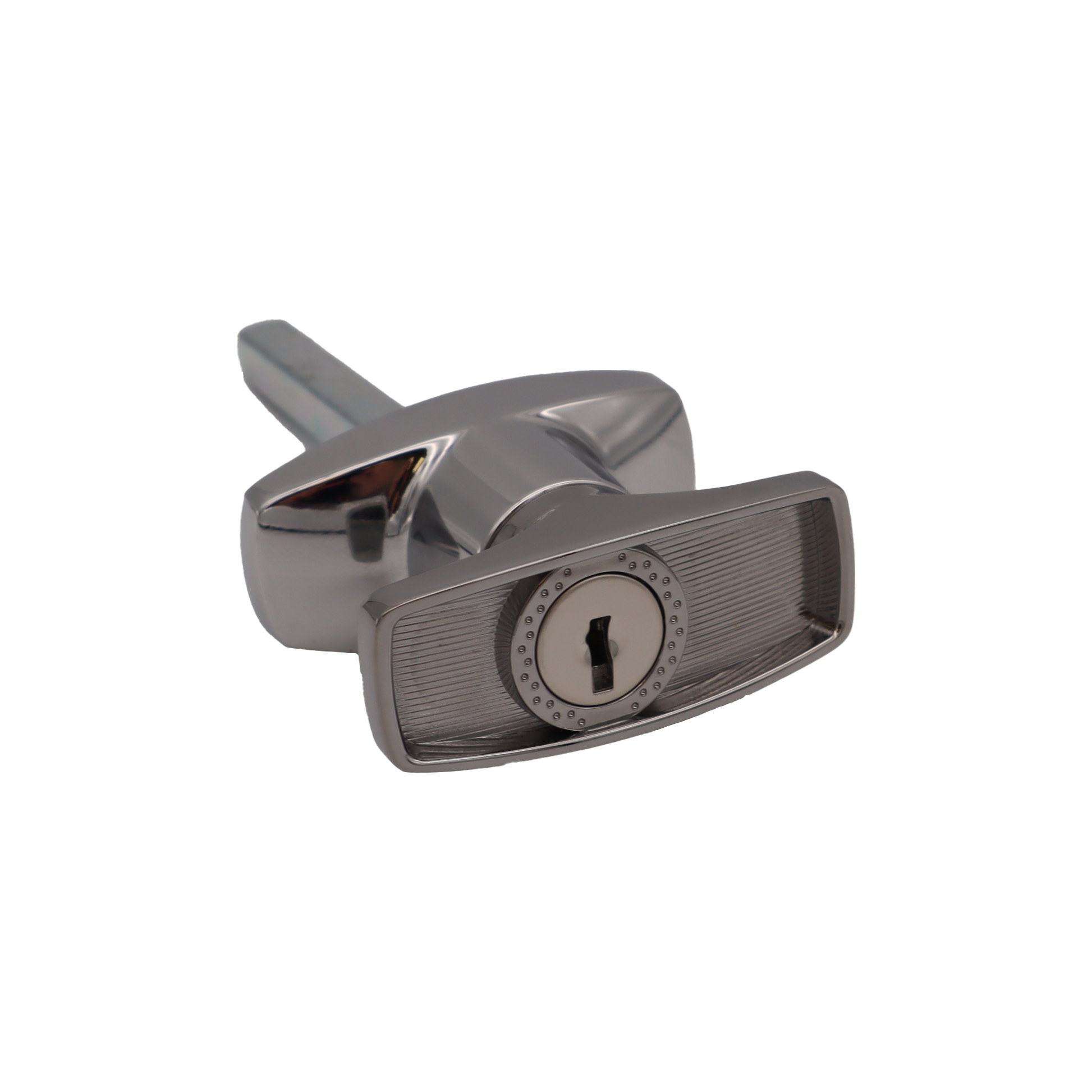

Small T-Handle

Small T-Handle

MS314-1

$23.10 AUD
$23.10 AUD
Sale Out of Stock
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

Features:

  • 90° rotation (can be set in either LH or RH configuration)
  • Keyed 92268
  • Lockable cylinder barrel (off-centre)
  • Key can be withdrawn from two positions
  • 8mm square cam shaft (L= 74.5mm)

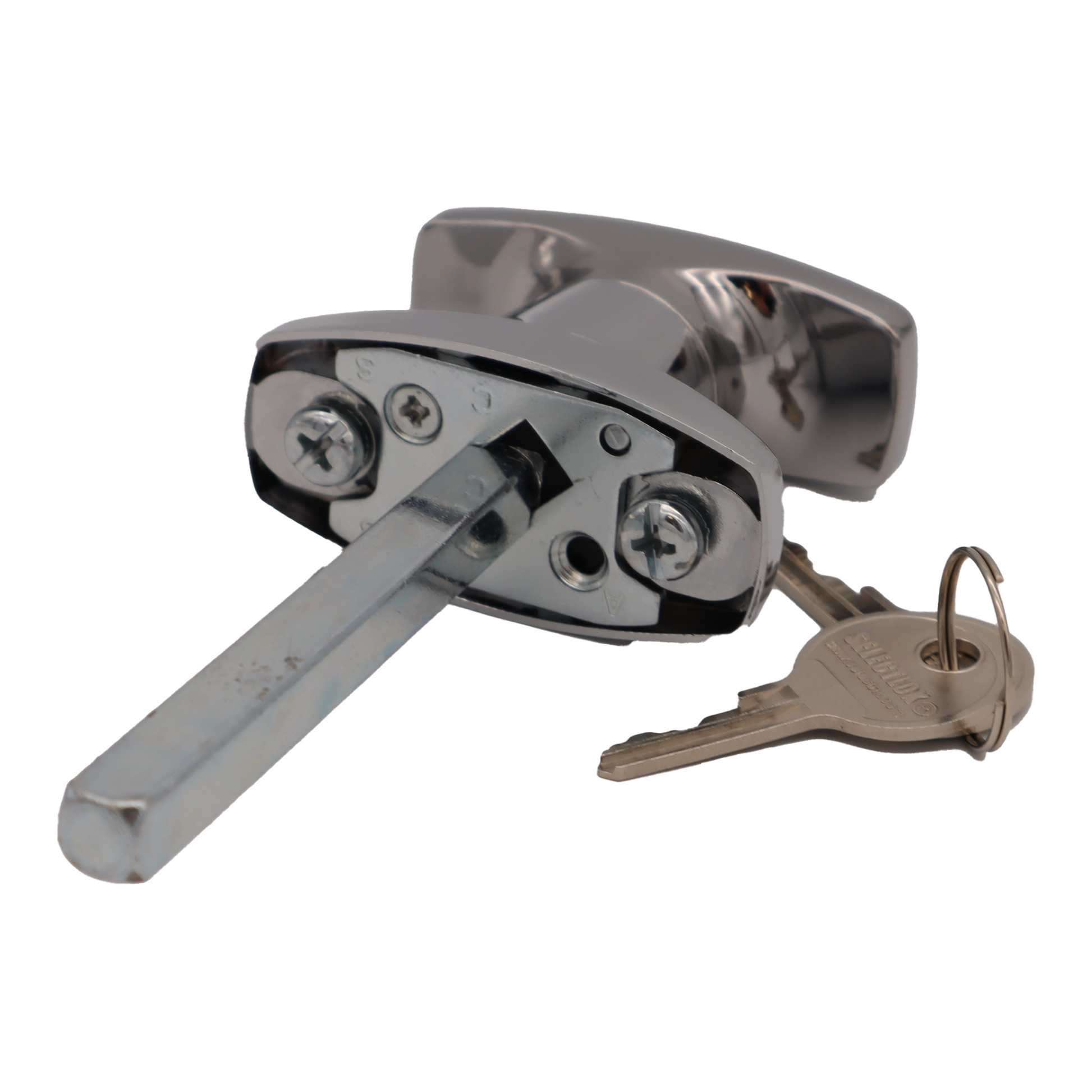

  • Rear fixing, Phillip head bolts (supplied)
  • Gasket not supplied

Material & Finish:

  • Body: Zinc alloy, die-cast
  • Cam shaft: Carbon steel, zinc plating
  • Surface treatment: Bright chrome plating

Remarks:

  • Applicable door panel thickness: 1mm ~ 5mm
  • Single-point cams available in various H= dimensions
  • Three-point cams available
  • Three-point roller cams available
  • Stainless steel cams available
  • Internal & emergency internal handles available
  • Non-locking available on request, contact Selectlok for more information

Accessories:

Standard Cams Available:

  • 1000-1586 Single point
  • 1000-1587 3 point with adapters
  • 1000-1588 3 point without adapters
  • 1000-1592 Internal handle
  • P2535 Emergency internal handle
  • 1000-1589-1200E 2x rods + 3 point cam

Instructions - Switching from LH - RH Configuration:

To reverse 90° handle rotation from either LH or RH configuration, refer to procedural guide as follows: (Refer to datasheet for more detail.)

  1. Remove counter-sunk Phillip head retaining bolt.
  2. Use small screwdriver or pick to gently lift backing plate, ‘slightly’ dislodging 8mm square cam shaft.
  3. Turn backing plate just enough to align with shaft cutout and slide along to remove.
  4. Remove and flip/turn black plastic rotation stop/governor from behind backing plate.
  5. Align backing plate orientation with new stop location.
  6. Reassemble, ensuring 8mm square cam shaft is inserted back to ‘home’ position, re-install Phillip head retaining bolt.

View Technical Datasheet
