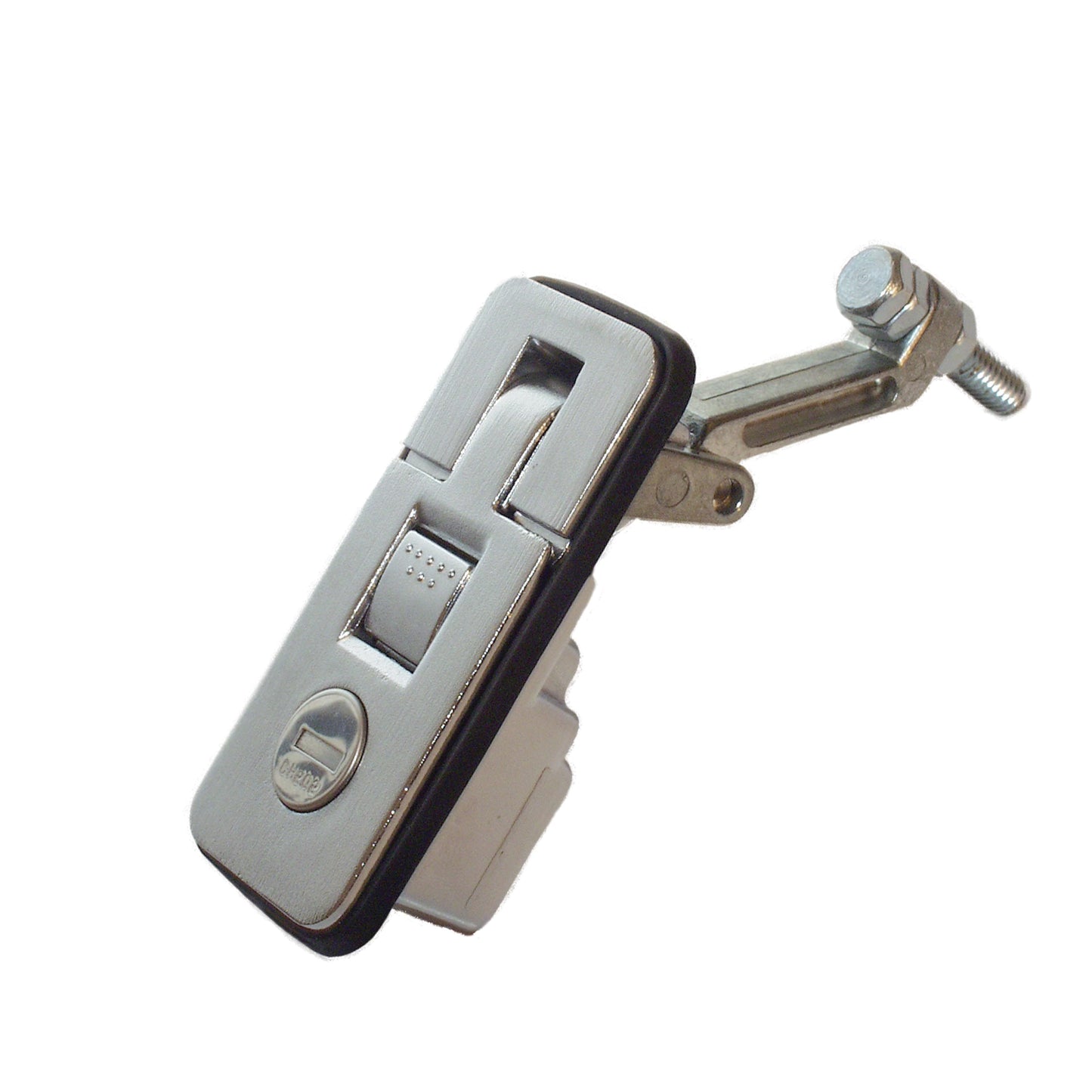

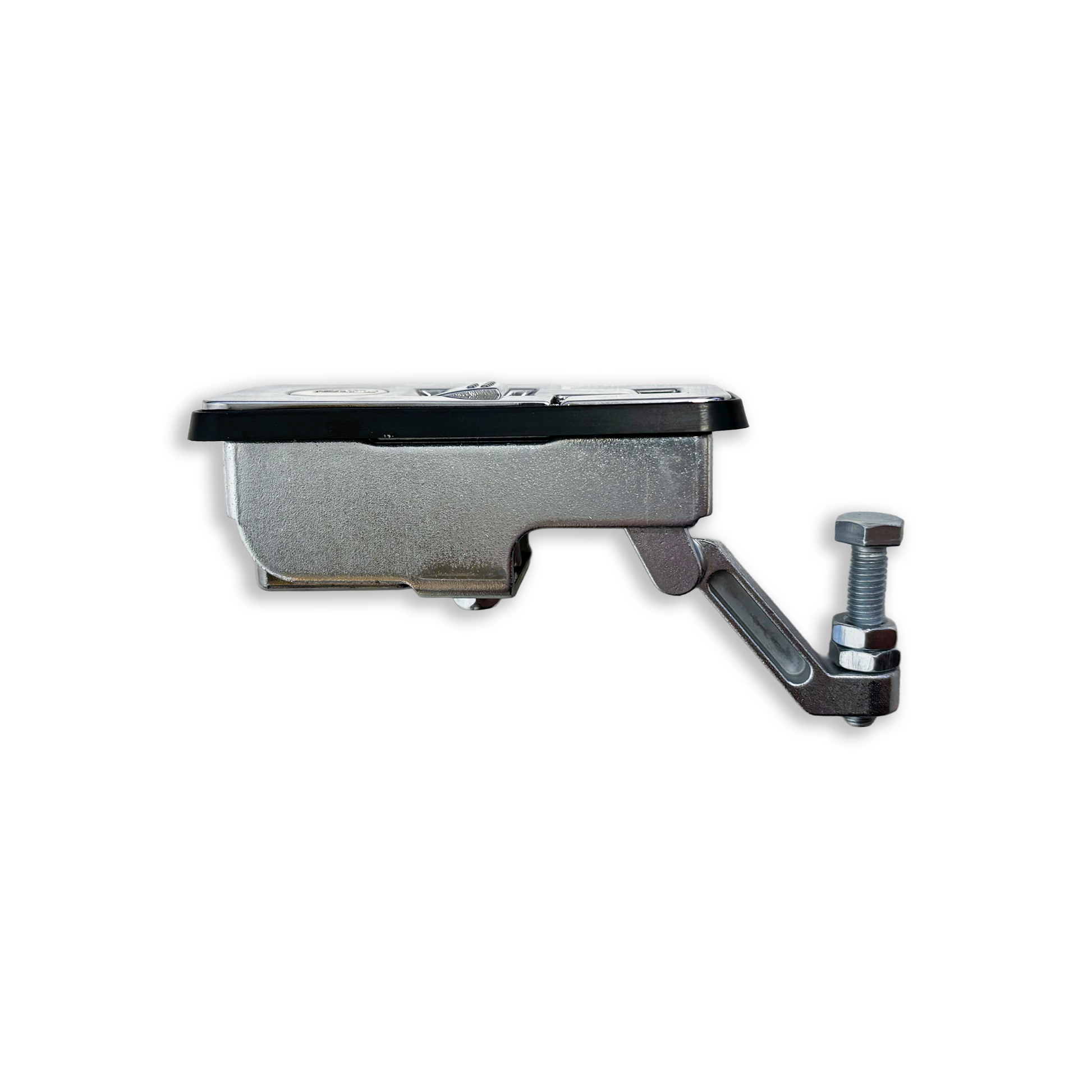

Square Push-Button Compression Latch - Small (Chrome)
Square Push-Button Compression Latch - Small (Chrome)SKU:10208-CH510
Regular price
$17.55 AUD
Sale price
$17.55 AUD
Unit price
/
per
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)
Couldn't load pickup availability
Why Do We Need Compression Latches?
Selectlok's Small, Square Push-Button Compression Latches are perfect for securely fastening doors or panels while applying a clamping force that reduces vibration and rattling. This compression action also applys pressure to the gasket to create a reliable seal against dust, moisture, and other environmental factors. Ideal for machinery and enclosures, they can help protect internal components, reduce maintenance, and extend service life.
Features
- Square-button/squared handle design
- Small profile size
- Compression action
- Push-button operation
- Supplied with gasket
- Flush fitting
-
Keyed: CH510 or CH501
- Alternative key codes: Available on request (Subject to MOQ’s and leadtimes)
Dimensions, Material & Finish
- Handle body: Zinc, die-cast
- Finishes: Chrome plated (polished or brushed)
- Mounting bracket: Mild steel, zinc plated
- Cam: Zinc die-cast
- Panel thickness: 1-4mm
-
Dimensions:
- Handle body: 80mm (L) x 35mm (W) x 25mm (D)
- Mounting bracket: 75.9mm (L) x 29.9mm (W) x 25.3mm (D)
Remarks
- Grip Range: Refer to the datasheet
View our technical Datasheet
