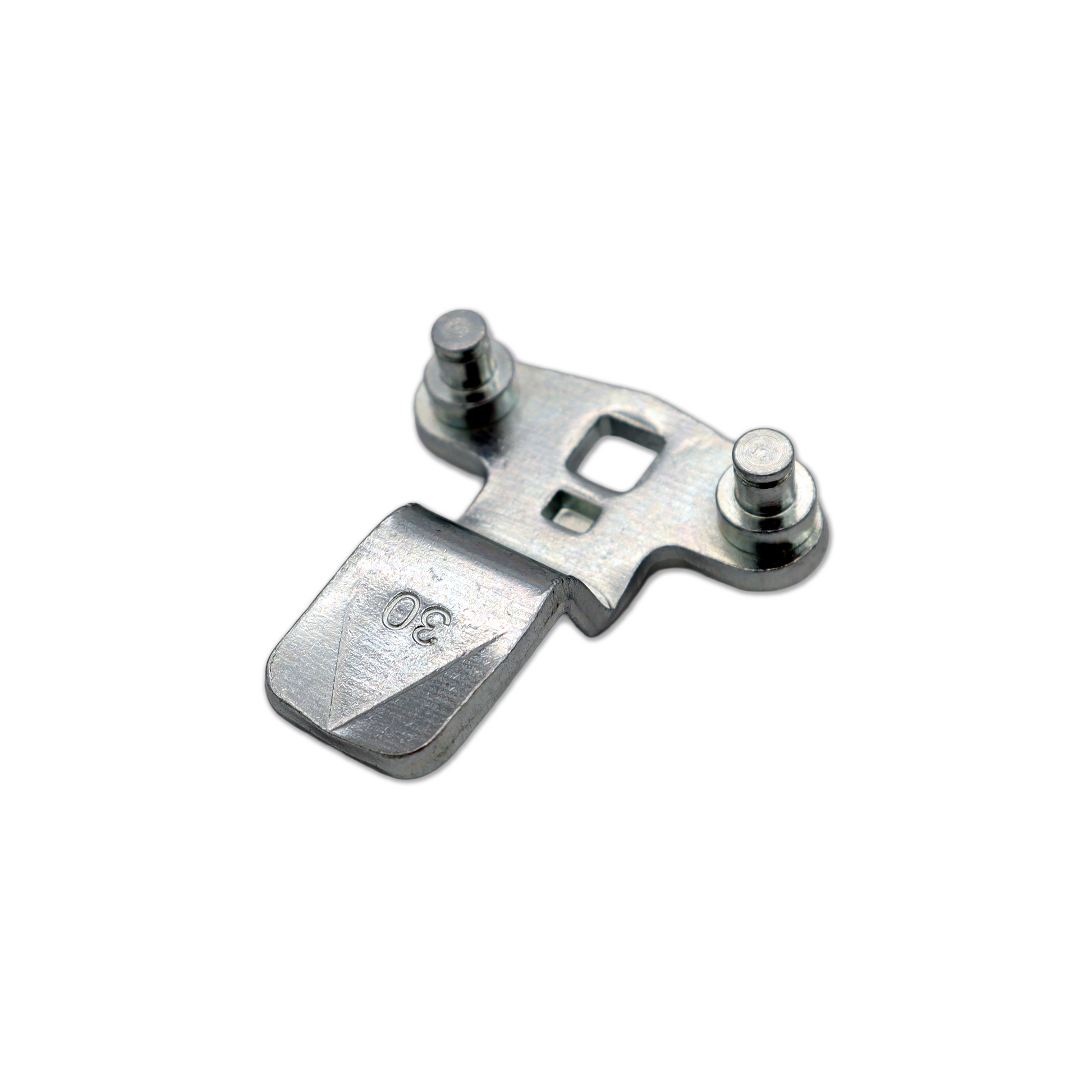

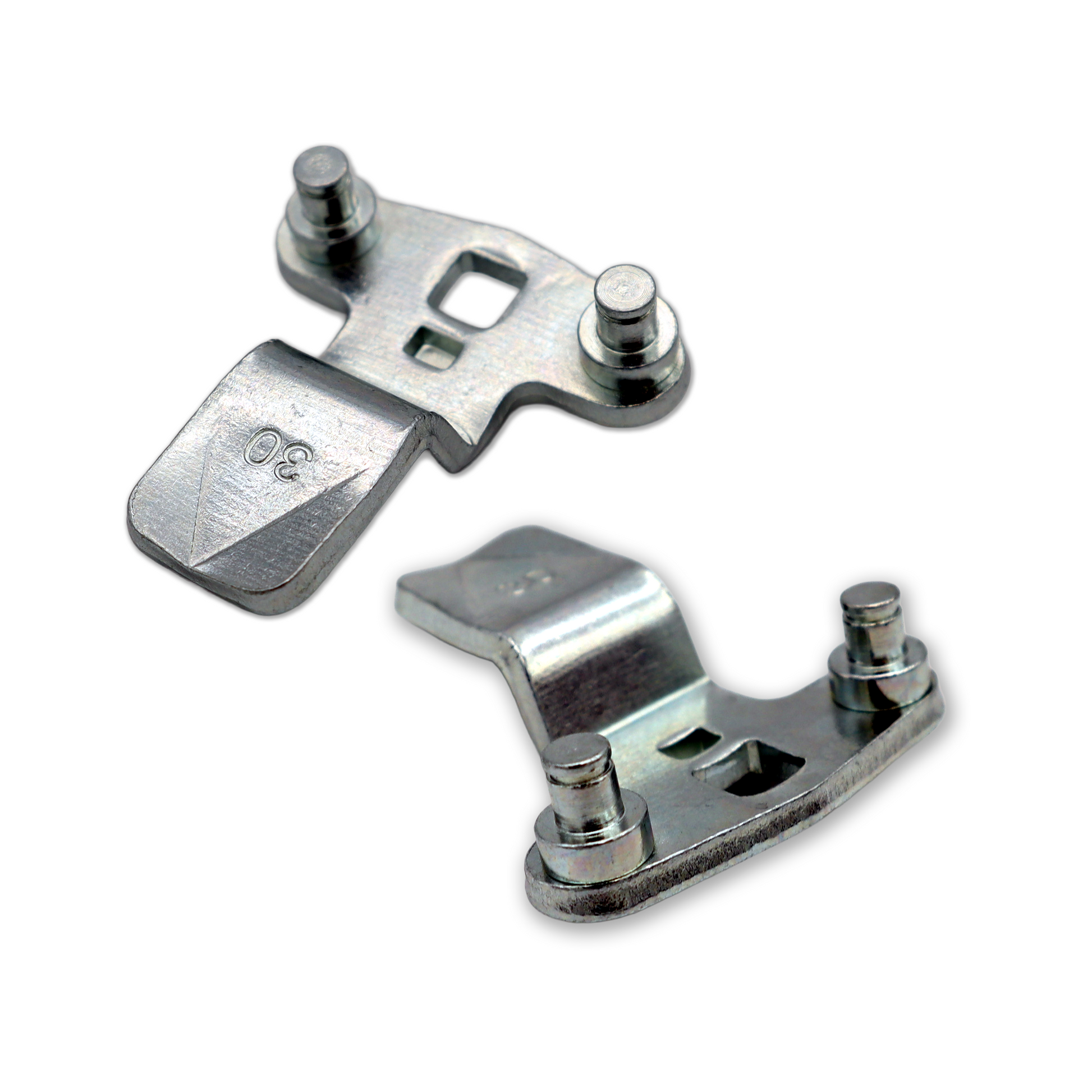

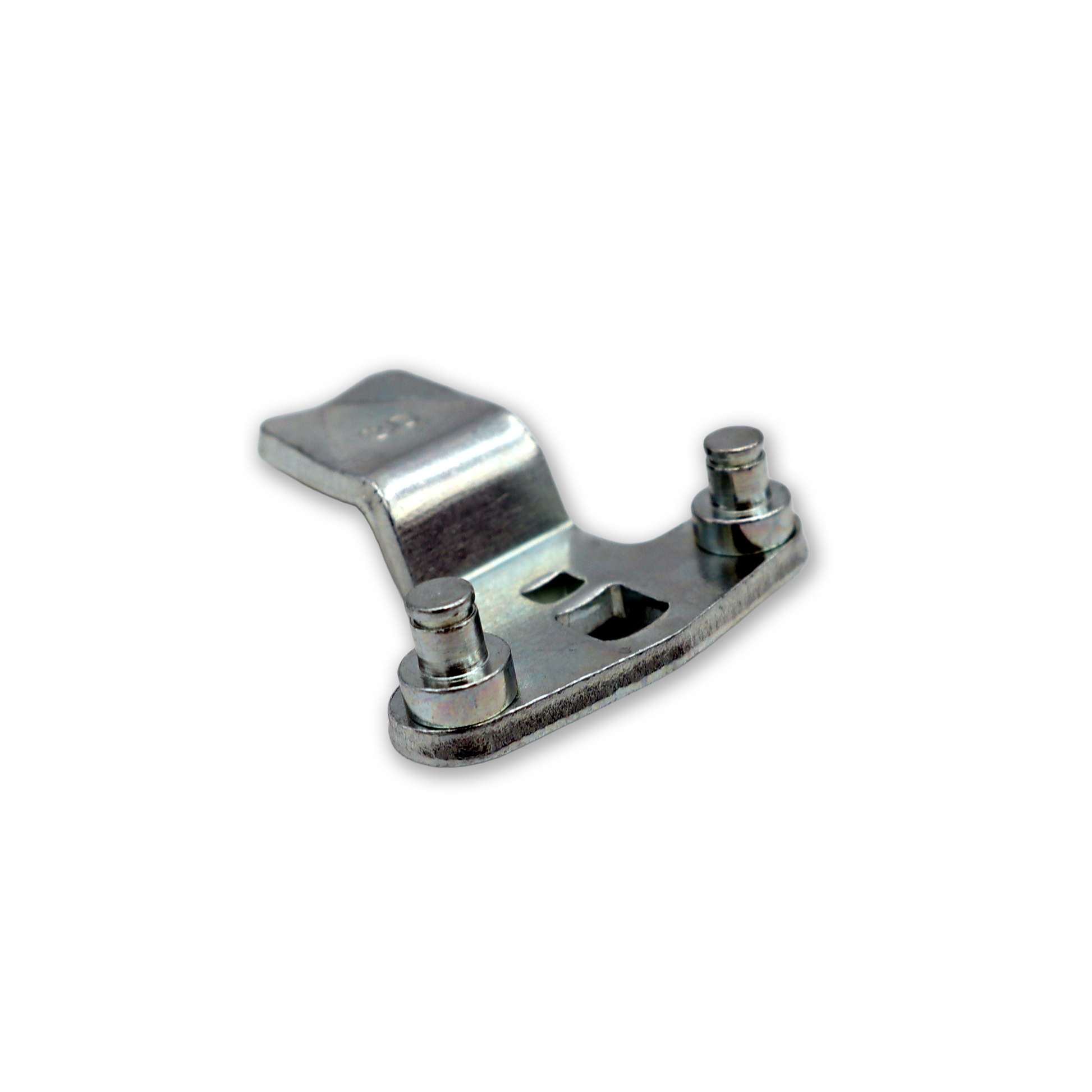

Three-Point Cam with Stopper

Three-Point Cam with Stopper

TCAM-1-4

$3.71 AUD
$3.71 AUD
Sale Out of Stock
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)

Features:

  • Three-point with stopper
  • Cam length:  45mm
  • Given height/offset is the H= dimension: This is the measurement from the face of the door to the top of the cam. (See diagram image.)
  • Stainless steel range available on request (MOQ's and extended lead times may apply) Contact Us

Material & Finish:

  • Mild steel
  • Zinc plated
  • 4mm material thickness

View Datasheet

Not sure what size H dimension you need?

The below image is a generalised diagram showing how to calculate your H dimension if the quarter turn housing is a standard 18mm. For a more in-depth explanation, click here to learn more about quarter turns.

Quarter Turn Diagram
