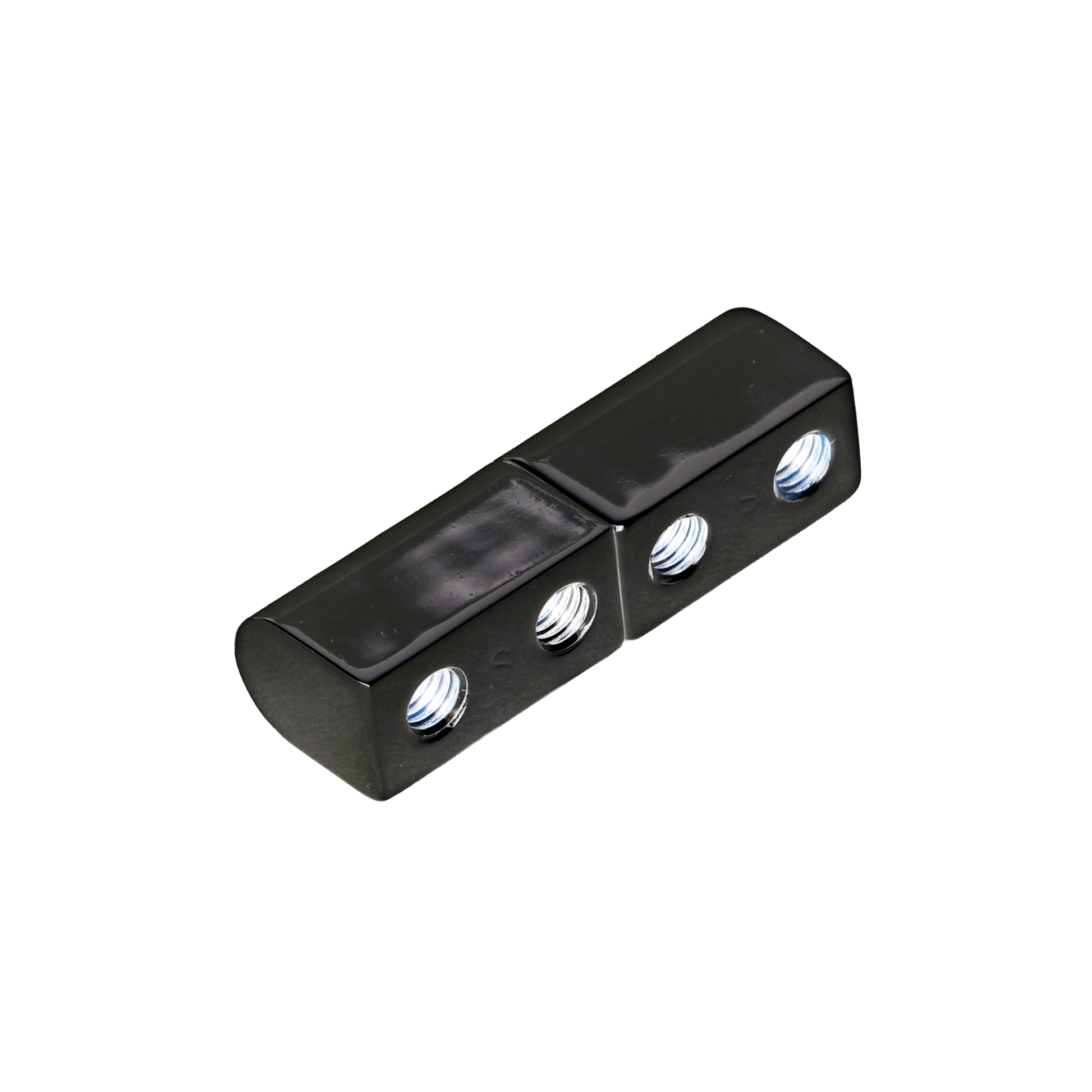

FSDT™ | HIB500: Pintle Hinge - 50mm (Zinc, Black PC)
FSDT™ | HIB500: Pintle Hinge - 50mm (Zinc, Black PC)
SKU:HIB500-1-ZN-BLK
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)
Couldn't load pickup availability
Modern Classics...
Selectlok Australia has taken a bold step forward in enclosure hardware innovation with the development of the FSDT™ Range (F-Series™ Symmetrical Door Design) — a system built around modularity, symmetry, and future-ready design.
At the heart of this evolution is the Symmetrical F Cutout: a new standard that delivers all the design flexibility of IND-C Series handles, with the added advantage of adapting existing or alternate handle stock. It’s been engineered to support our advanced FSDT™ product range.
More than just a new swing handle cutout, the F-Series™ Symmetrical Door Technology platform is designed to inspire a new generation of hardware built to enable true biaxial symmetry in enclosure designs. This system allows enclosures to be configured with mirrored left-hand and right-hand door layouts — without requiring different handle types, hinge positions, or mounting orientations. It’s a smarter, more unified approach that reduces design complexity, simplifies stock management, and accelerates both assembly and retrofitting.
Whether you’re starting from scratch or upgrading an existing design, FSDT™ provides the flexibility to standardise across builds — while staying responsive to evolving enclosure applications and compliance requirements.
For best results, we recommend the use of this FSDT™ | HIB500 Pintle Hinge (Black) with handles featuring either a dedicated F-Series™ profile design, or the use of an F Cutout Adapter Plate and enclosures featuring biaxial symmetrical designs and manufacturing.
Features
- Body height: 16mm (M/F)
- Interchangeable male & female components
- Shares a matching finish (colour/texture) with: Eselon+® series swing handle range.
- Multi-hex & socket head cap screws available (sold separately)
- Modularity and symmetry: Perfect for biaxial symmetrical designed door frames. Once installed in combination with enclosures usiing either, F Cutout door profile or F Cutout Adapter Plate + Millennium®/Eselon®/Eselon+® swing handles. This hinge system enables 180° rotational door symmetry, allowing same-hinge suitability for both left-hand and right-hand door orientations.
- F-Series™ Symmetrical Door Technology: Engineered to support our advanced FSDT™ range of products.
Material Finish & Dimensions
- Hinge body: Zinc die-cast, black powder-coated (sand grain)
- Pin: Stainless steel 304
- Hinge body: 50mm (L) x 16mm (H)
- Pin: 20mm (L) x Ø6mm (Dia.)
Remarks
- SS-304 hex multi-head screws available: F-HMHSS-M6X8-SS
- SS-316 large hex multi-head screws available: HIB650-SCREW-SS
- SS-304 socket head cap screws available: F-SCS-M6X8-SS
